Search › Model › HR52S
HR52S

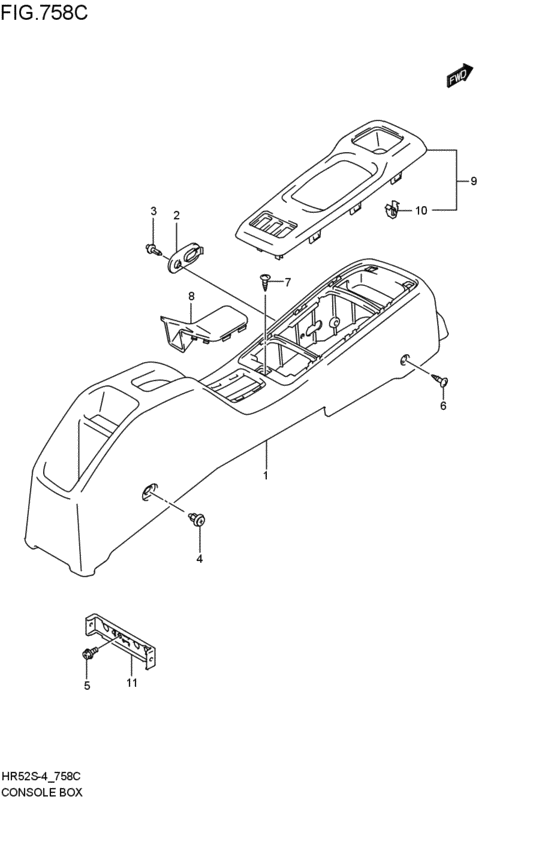

console box (2006-05-01~) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 75811-78F10-P4Z | BOX,FLOOR CONSOLE |
| 2 | 75818-60E30-P4Z | CAP,CONSOLE BOX SIDE |
| 3 | 09409-06317-P4Z | CLIP(GRAY) |
| 4 | 09409-06322-P4Z | CLIP(GRAY) |
| 5 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 6 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 8 | 75812-76F00-P4Z | CAP,CONSOLE BOX |
| 9 | 75821-78F10-ZL9 | ガーニッシュ,ギヤシフトAT(シルバー) |
| 10 | 09409-08326-000 | CLIP |
| 11 | 75841-78F00-000 | BRACKET,CONSOLE BOX RR |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | console box (2006-05-01~) |
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | console box (2006-05-01~) |
| 09409-06317-P4Z | CLIP(GRAY) | console box (2006-05-01~) |
| 09409-06322-P4Z | CLIP(GRAY) | console box (2006-05-01~) |
| 09409-08326-000 | CLIP | console box (2006-05-01~) |
| 75811-78F10-P4Z | BOX,FLOOR CONSOLE | console box (2006-05-01~) |
| 75812-76F00-P4Z | CAP,CONSOLE BOX | console box (2006-05-01~) |
| 75818-60E30-P4Z | CAP,CONSOLE BOX SIDE | console box (2006-05-01~) |
| 75821-78F10-ZL9 | ガーニッシュ,ギヤシフトAT(シルバー) | console box (2006-05-01~) |
| 75841-78F00-000 | BRACKET,CONSOLE BOX RR | console box (2006-05-01~) |
