Search › Model › HR52S
HR52S

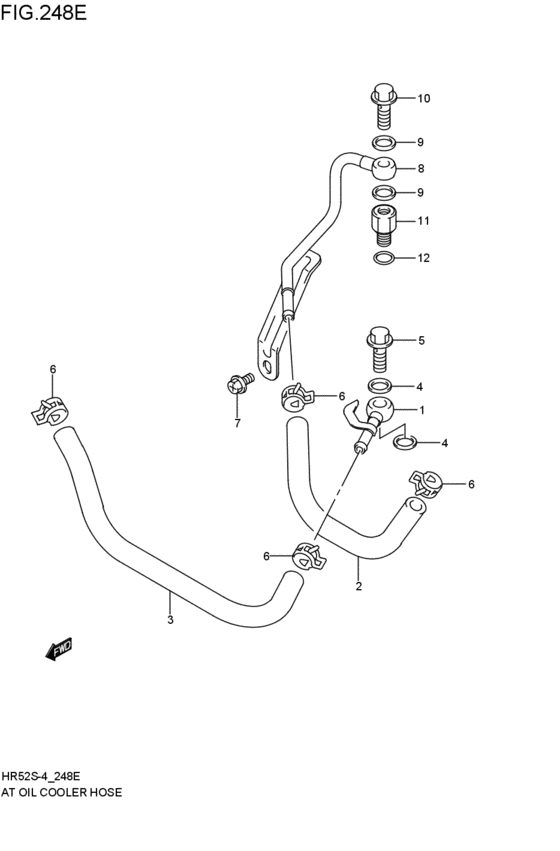

at - oil hose (2006-05-01~) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 22921-70H10-000 | PIPE,OIL COOLER OUTLET |
| 2 | 22931-70H10-000 | HOSE,OIL COOLER INLET |
| 3 | 22932-70H10-000 | HOSE,OIL COOLER OUTLET |
| 4 | 22913-60H10-000 | GASKET |
| 4 | 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT |
| 5 | 09360-10055-000 | UNION - Bolt, oil pipe union |
| 6 | 09401-13419-000 | CLIP |
| 7 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 8 | 22911-70H11-000 | PIPE,OIL COOLER INLET |
| 11 | 24743-55G10-000 | UNION,OIL PIPE |
| 12 | 29737-57B00-000 | O-RING,OIL PIPE |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | at - oil hose (2006-05-01~) |
| 09360-10055-000 | UNION - Bolt, oil pipe union | at - oil hose (2006-05-01~) |
| 09401-13419-000 | CLIP | at - oil hose (2006-05-01~) |
| 22911-70H11-000 | PIPE,OIL COOLER INLET | at - oil hose (2006-05-01~) |
| 22913-60H10-000 | GASKET | at - oil hose (2006-05-01~) |
| 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT | at - oil hose (2006-05-01~) |
| 22921-70H10-000 | PIPE,OIL COOLER OUTLET | at - oil hose (2006-05-01~) |
| 22931-70H10-000 | HOSE,OIL COOLER INLET | at - oil hose (2006-05-01~) |
| 22932-70H10-000 | HOSE,OIL COOLER OUTLET | at - oil hose (2006-05-01~) |
| 24743-55G10-000 | UNION,OIL PIPE | at - oil hose (2006-05-01~) |
| 29737-57B00-000 | O-RING,OIL PIPE | at - oil hose (2006-05-01~) |
