| 01551-08123-000 |
ボルト |

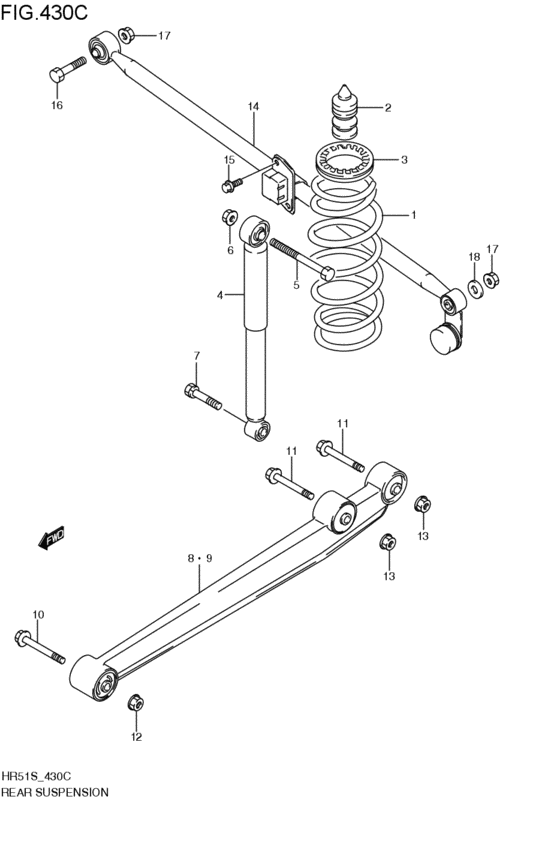

rear suspension (2001-10-01~) |
| 01551-0812A-000 |
Bolt |
rear suspension (2001-10-01~) |
| 02162-06203-000 |
Bolt |
rear suspension (2001-10-01~) |
| 02162-0620C-000 |
SCREW |
rear suspension (2001-10-01~) |
| 08316-10123-000 |
Nut |
rear suspension (2001-10-01~) |
| 08316-1012A-000 |
NUT |
rear suspension (2001-10-01~) |
| 09103-12044-000 |
BOLT(12X87) |
rear suspension (2001-10-01~) |
| 09103-12051-000 |
BOLT(12X50) |
rear suspension (2001-10-01~) |
| 09103-12064-000 |
ボルト,12X80 |
rear suspension (2001-10-01~) |
| 09103-12068-000 |
BOLT(12X80) |
rear suspension (2001-10-01~) |
| 09117-12014-000 |
BOLT(12X57) |
rear suspension (2001-10-01~) |
| 09159-12025-000 |
NUT |
rear suspension (2001-10-01~) |
| 09159-12068-000 |
NUT |
rear suspension (2001-10-01~) |
| 09164-12017-000 |
WASHER |
rear suspension (2001-10-01~) |
| 41311-70H10-000 |
SPRING,REAR COIL |
rear suspension (2001-10-01~) |
| 41341-79A00-000 |
SEAT,REAR SPRING UPPER |
rear suspension (2001-10-01~) |
| 41800-70H10-000 |
ABSORBER ASSY,RR SHOCK |
rear suspension (2001-10-01~) |
| 41981-76G01-000 |
BOLT,RR SHK ABSORBER UPR |
rear suspension (2001-10-01~) |
| 42251-75F90-000 |
STOPPER,RR BUMP |
rear suspension (2001-10-01~) |
| 46200-70H00-000 |
ARM ASSY,RR TRAILING |
rear suspension (2001-10-01~) |
| 46201-70H00-000 |
ARM ASSYREAR TRAILING |
rear suspension (2001-10-01~) |
| 46202-70H00-000 |
ARM ASSYREAR TRAILING |
rear suspension (2001-10-01~) |
| 46292-60J00-000 |
ナット |
rear suspension (2001-10-01~) |
| 46300-80GA0-000 |
ROD ASSY,LATERAL |
rear suspension (2001-10-01~) |
| 46300-83E00-000 |
Rod assy,lateral |
rear suspension (2001-10-01~) |
| 46300-83E01-000 |
ROD ASSY,LATERAL |
rear suspension (2001-10-01~) |
