Search › Model › HR51S
HR51S

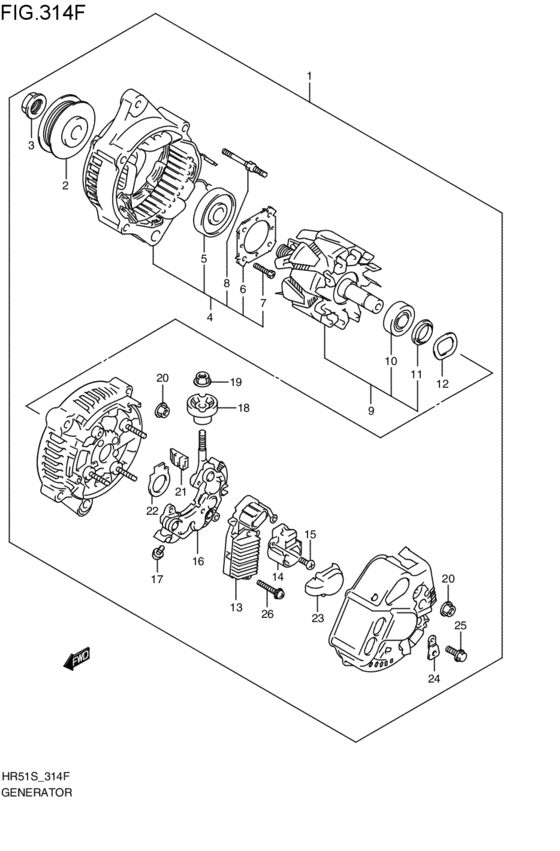

generator (2001-10-01~) 37
| OEM | Part name | Category |
|---|---|---|
| 02112-04063-000 | Screw | generator (2001-10-01~) |
| 02112-0406B-000 | SCREW | generator (2001-10-01~) |
| 02112-74253-000 | SCREW | generator (2001-10-01~) |
| 08310-00063-000 | Nut | generator (2001-10-01~) |
| 08310-0006A-000 | NUT | generator (2001-10-01~) |
| 08310-0006B-000 | NUT - Nut gear shift link rod | generator (2001-10-01~) |
| 08316-10053-000 | Nut | generator (2001-10-01~) |
| 08316-1005A-000 | NUT | generator (2001-10-01~) |
| 31171-60G30-000 | PULLEY | generator (2001-10-01~) |
| 31400-80G10-000 | Generator assy | generator (2001-10-01~) |
| 31400-80G11-000 | GENERATOR ASSY | generator (2001-10-01~) |
| 31400-80G12-000 | Generator Assy | generator (2001-10-01~) |
| 31512-77E10-000 | PLATE,TERMINAL | generator (2001-10-01~) |
| 31514-77E11-000 | INSULATOR,TERMINAL | generator (2001-10-01~) |
| 31515-77E10-000 | SCREW | generator (2001-10-01~) |
| 31516-77E10-000 | SCREW | generator (2001-10-01~) |
| 31580-77E10-000 | Frame assy,drive end | generator (2001-10-01~) |
| 31580-77E11-000 | FRAME ASSY,DRIVE END | generator (2001-10-01~) |
| 31582-77E10-000 | Bearing | generator (2001-10-01~) |
| 31582-77E11-000 | BEARING,BALL | generator (2001-10-01~) |
| 31585-77E10-000 | RETAINER,BEARING | generator (2001-10-01~) |
| 31586-77E10-000 | SCREW | generator (2001-10-01~) |
| 31587-82110-000 | Bolt | generator (2001-10-01~) |
| 31612-77E10-000 | Bearing | generator (2001-10-01~) |
| 31612-77E11-000 | BEARING,REAR | generator (2001-10-01~) |
| 31613-82610-000 | COVER,BEARING | generator (2001-10-01~) |
| 31615-77E10-000 | WASHER | generator (2001-10-01~) |
| 31619-77E10-000 | SEAL RING | generator (2001-10-01~) |
| 31620-77E10-000 | SEAL RING | generator (2001-10-01~) |
| 31621-77E10-000 | Rectifier Assy | generator (2001-10-01~) |
| 31622-77E10-000 | INSULATOR | generator (2001-10-01~) |
| 31656-77E10-000 | HOLDER ASSY,BRUSH | generator (2001-10-01~) |
| 31710-80G00-000 | Rotor assy | generator (2001-10-01~) |
| 31710-80G01-000 | ROTOR ASSY | generator (2001-10-01~) |
| 31775-86510-000 | NUT | generator (2001-10-01~) |
| 32500-80G10-000 | REGULATOR ASSY | generator (2001-10-01~) |
| 32642-80G10-000 | SCREW | generator (2001-10-01~) |
