HR51S

Suzuki OTHER-MODELS · 2001 · 2,489 parts · 119 categories

2,489 items

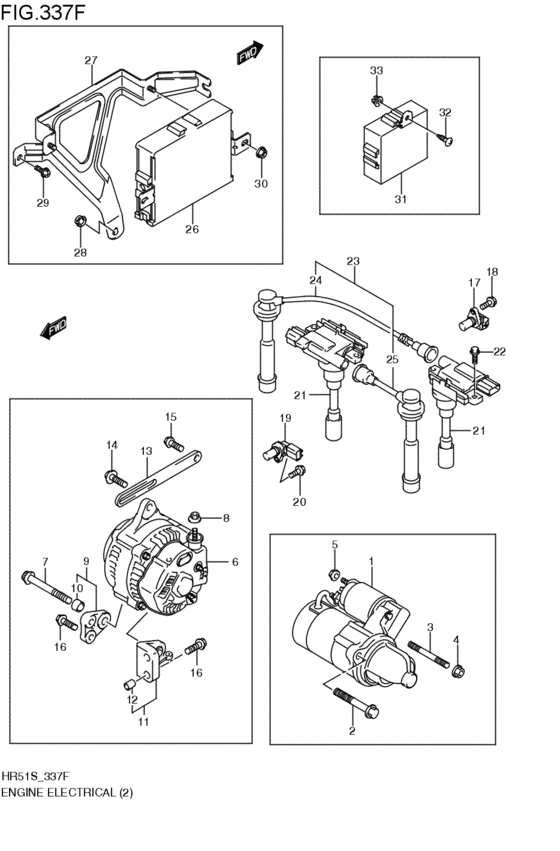

engine electrical (2002/12 カラ; 2002-12-01~) 57

#	OEM	Part name
1	31100-80G00-000	MOTOR ASSY,STARTING
2	01550-10603-000	Bolt
2	01550-1060B-000	Bolt
2	01550-1060A-000	Bolt
3	01421-10603-000	Stud bolt (l:60)
3	01421-1060A-000	BOLT,STUD
4	08316-10103-000	Nut
4	08316-1010B-000	NUT
5	08316-10083-000	Nut
5	08316-1008B-000	NUT
6	31400-80G10-000	Generator assy
6	31400-80G11-000	GENERATOR ASSY
6	31400-80G12-000	Generator Assy
7	07120-10853-000	ボルト
7	07120-1085A-000	Bolt
7	09106-10071-000	ボルト,10X85
8	08316-10063-000	Nut
8	08316-1006B-000	NUT
9	11550-54G00-000	ブラケット,ジェネレータ,NO.1
9	11550-64J01-000	BRACKET,GENERATOR
10	11555-60G00-000	Bush, generator
10	11555-60G01-000	BUSH
11	11550-54G10-000	BRACKET ASSY,GENERATOR NO.2
12	04211-11169-000	PIN - Pin, dowel
13	11561-69G00-000	ARM GENERATOR ADJUSTING
13	11561-69G01-000	ARM,GENERATOR ADJUST
14	09118-08107-000	BOLT(8X25)
15	01550-08203-000	Bolt
15	01550-0820B-000	Bolt
15	01550-0820A-000	Bolt - Bolt, funnel bracket
16	01550-08303-000	Bolt
16	01550-0830B-000	Bolt
16	01550-0830A-000	Bolt - Bolt, mount oil seal cover
17	33220-50G02-000	SENSOR ASSY,CAM POSITION
18	01550-06163-000	Bolt
18	01550-0616B-000	Bolt
18	01550-0616A-000	Bolt
19	33220-80G00-000	SENSOR ASSY,CRANK POSITION
20	09103-06240-000	BOLT(6X16)
21	33400-65G00-000	Coil assy, ignition
21	33400-65G02-000	COIL ASSY,IGNITION DENSO
22	01560-06203-000	Bolt
22	01560-0620A-000	Bolt
23	33705-80G00-000	CORD SET,HIGH TENSION
24	33730-80G00-000	CORD,HIGH TENSION NO.2
25	33740-80G00-000	CORD,HIGH TENSION NO.3
26	33920-70H00-000	コントローラアッシ,インジェクション/エアコン
26	33920-70H01-000	CONTROLLER ASSY,EPI-A/C
27	33924-70H00-000	BRACKET,EPI CONT
28	09159-06076-000	NUT
29	02162-06123-000	Bolt (6x12)
29	02162-0612B-000	SCREW - Bolt
29	02162-0612A-000	SCREW - Bolt, bracket
31	38885-70H00-000	コントローラアッシ,EMCD
32	03242-06163-000	Screw - Screw, tilt handle
32	03241-0616C-000	SCREW
33	09148-06007-000	NUT

OEM	Part name	Category
01421-10603-000	Stud bolt (l:60)	engine electrical (2002/12 カラ; 2002-12-01~)
01421-1060A-000	BOLT,STUD	engine electrical (2002/12 カラ; 2002-12-01~)
01550-06163-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-0616A-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-0616B-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-08203-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-0820A-000	Bolt - Bolt, funnel bracket	engine electrical (2002/12 カラ; 2002-12-01~)
01550-0820B-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-08303-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	engine electrical (2002/12 カラ; 2002-12-01~)
01550-0830B-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-10603-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-1060A-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01550-1060B-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01560-06203-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
01560-0620A-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
02162-06123-000	Bolt (6x12)	engine electrical (2002/12 カラ; 2002-12-01~)
02162-0612A-000	SCREW - Bolt, bracket	engine electrical (2002/12 カラ; 2002-12-01~)
02162-0612B-000	SCREW - Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
03241-0616C-000	SCREW	engine electrical (2002/12 カラ; 2002-12-01~)
03242-06163-000	Screw - Screw, tilt handle	engine electrical (2002/12 カラ; 2002-12-01~)
04211-11169-000	PIN - Pin, dowel	engine electrical (2002/12 カラ; 2002-12-01~)
07120-10853-000	ボルト	engine electrical (2002/12 カラ; 2002-12-01~)
07120-1085A-000	Bolt	engine electrical (2002/12 カラ; 2002-12-01~)
08316-10063-000	Nut	engine electrical (2002/12 カラ; 2002-12-01~)
08316-1006B-000	NUT	engine electrical (2002/12 カラ; 2002-12-01~)
08316-10083-000	Nut	engine electrical (2002/12 カラ; 2002-12-01~)
08316-1008B-000	NUT	engine electrical (2002/12 カラ; 2002-12-01~)
08316-10103-000	Nut	engine electrical (2002/12 カラ; 2002-12-01~)
08316-1010B-000	NUT	engine electrical (2002/12 カラ; 2002-12-01~)
09103-06240-000	BOLT(6X16)	engine electrical (2002/12 カラ; 2002-12-01~)
09106-10071-000	ボルト,10X85	engine electrical (2002/12 カラ; 2002-12-01~)
09118-08107-000	BOLT(8X25)	engine electrical (2002/12 カラ; 2002-12-01~)
09148-06007-000	NUT	engine electrical (2002/12 カラ; 2002-12-01~)
09159-06076-000	NUT	engine electrical (2002/12 カラ; 2002-12-01~)
11550-54G00-000	ブラケット,ジェネレータ,NO.1	engine electrical (2002/12 カラ; 2002-12-01~)
11550-54G10-000	BRACKET ASSY,GENERATOR NO.2	engine electrical (2002/12 カラ; 2002-12-01~)
11550-64J01-000	BRACKET,GENERATOR	engine electrical (2002/12 カラ; 2002-12-01~)
11555-60G00-000	Bush, generator	engine electrical (2002/12 カラ; 2002-12-01~)
11555-60G01-000	BUSH	engine electrical (2002/12 カラ; 2002-12-01~)
11561-69G00-000	ARM GENERATOR ADJUSTING	engine electrical (2002/12 カラ; 2002-12-01~)
11561-69G01-000	ARM,GENERATOR ADJUST	engine electrical (2002/12 カラ; 2002-12-01~)
31100-80G00-000	MOTOR ASSY,STARTING	engine electrical (2002/12 カラ; 2002-12-01~)
31400-80G10-000	Generator assy	engine electrical (2002/12 カラ; 2002-12-01~)
31400-80G11-000	GENERATOR ASSY	engine electrical (2002/12 カラ; 2002-12-01~)
31400-80G12-000	Generator Assy	engine electrical (2002/12 カラ; 2002-12-01~)
33220-50G02-000	SENSOR ASSY,CAM POSITION	engine electrical (2002/12 カラ; 2002-12-01~)
33220-80G00-000	SENSOR ASSY,CRANK POSITION	engine electrical (2002/12 カラ; 2002-12-01~)
33400-65G00-000	Coil assy, ignition	engine electrical (2002/12 カラ; 2002-12-01~)
33400-65G02-000	COIL ASSY,IGNITION DENSO	engine electrical (2002/12 カラ; 2002-12-01~)
33705-80G00-000	CORD SET,HIGH TENSION	engine electrical (2002/12 カラ; 2002-12-01~)
33730-80G00-000	CORD,HIGH TENSION NO.2	engine electrical (2002/12 カラ; 2002-12-01~)
33740-80G00-000	CORD,HIGH TENSION NO.3	engine electrical (2002/12 カラ; 2002-12-01~)
33920-70H00-000	コントローラアッシ,インジェクション/エアコン	engine electrical (2002/12 カラ; 2002-12-01~)
33920-70H01-000	CONTROLLER ASSY,EPI-A/C	engine electrical (2002/12 カラ; 2002-12-01~)
33924-70H00-000	BRACKET,EPI CONT	engine electrical (2002/12 カラ; 2002-12-01~)
38885-70H00-000	コントローラアッシ,EMCD	engine electrical (2002/12 カラ; 2002-12-01~)
