HR51S

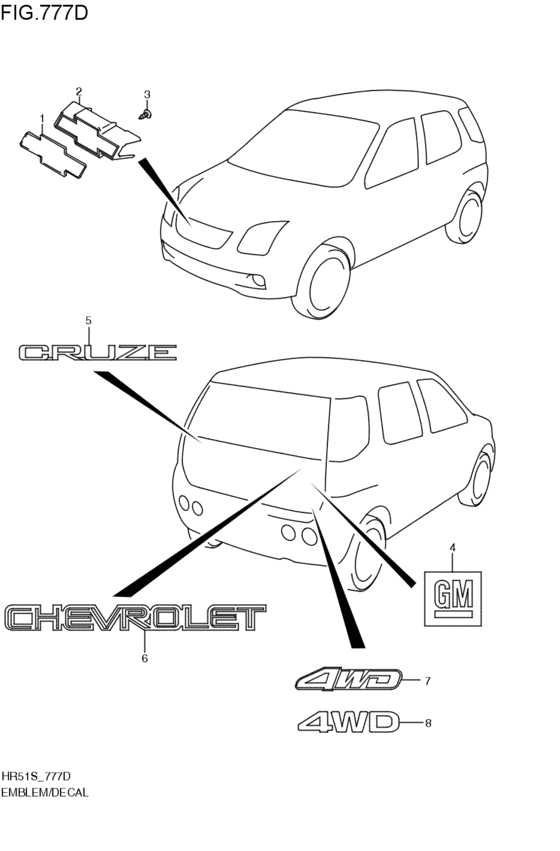

emblem (2001-10-01~) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 77812-60A11-000 | Emblem,chevrolet |
| 1 | 77812-60AV0-000 | EMBLEM,CHEVROLET |
| 2 | 77812-70H10-0CB | BASE,EMBLEM |
| 3 | 03541-04123-000 | Screw |
| 3 | 03541-0412B-000 | SCREW - Screw, plate |
| 3 | 03541-0412A-000 | SCREW - Screw, speedometer |
| 4 | 77831-70H00-JE1 | EMBLEM,GM |
| 4 | 77831-70H00-NB3 | エンブレム,GM(ブルー/クローム) |
| 4 | 77831-70H10-000 | Emblem,gm |
| 4 | 77831-70H11-000 | EMBLEM,GM |
| 5 | 77833-70H00-0PG | EMBLEM,CRUZE |
| 6 | 77841-70H00-N5G | EMBLEM,CHEVROLET |
| 7 | 77835-76G00-21G | DECAL,4WD |
| 8 | 77835-82G00-21G | DECAL,4WD |
| OEM | Part name | Category |
|---|---|---|
| 03541-04123-000 | Screw | emblem (2001-10-01~) |
| 03541-0412A-000 | SCREW - Screw, speedometer | emblem (2001-10-01~) |
| 03541-0412B-000 | SCREW - Screw, plate | emblem (2001-10-01~) |
| 77812-60A11-000 | Emblem,chevrolet | emblem (2001-10-01~) |
| 77812-60AV0-000 | EMBLEM,CHEVROLET | emblem (2001-10-01~) |
| 77812-70H10-0CB | BASE,EMBLEM | emblem (2001-10-01~) |
| 77831-70H00-JE1 | EMBLEM,GM | emblem (2001-10-01~) |
| 77831-70H00-NB3 | エンブレム,GM(ブルー/クローム) | emblem (2001-10-01~) |
| 77831-70H10-000 | Emblem,gm | emblem (2001-10-01~) |
| 77831-70H11-000 | EMBLEM,GM | emblem (2001-10-01~) |
| 77833-70H00-0PG | EMBLEM,CRUZE | emblem (2001-10-01~) |
| 77835-76G00-21G | DECAL,4WD | emblem (2001-10-01~) |
| 77835-82G00-21G | DECAL,4WD | emblem (2001-10-01~) |
| 77841-70H00-N5G | EMBLEM,CHEVROLET | emblem (2001-10-01~) |
