HN22S

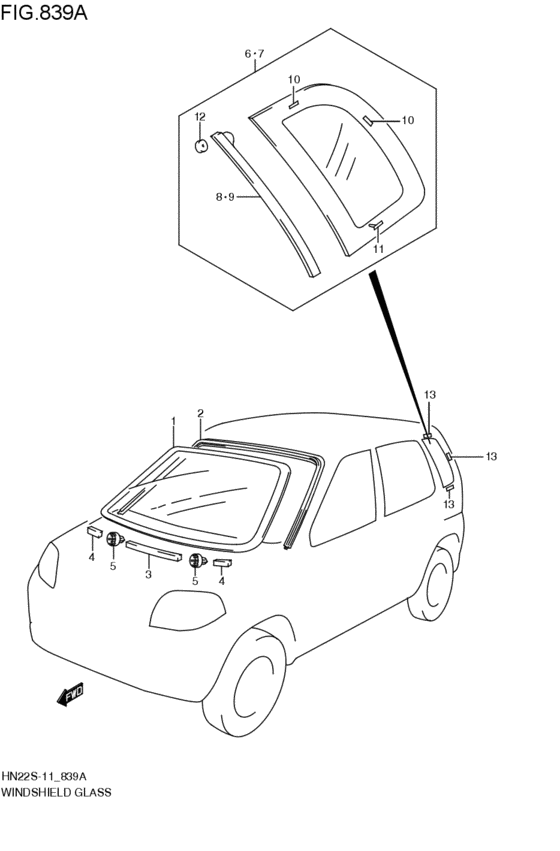

windshield (2008-04-01~) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 84511-82G00-000 | GLASS,WINDSHIELD |
| 2 | 84611-74G00-000 | MOLDING,WSHLD |
| 3 | 84617-60D00-000 | SPACER,WINDSHIELD GLASS |
| 4 | 84617-76F00-000 | SPACER,WINDSHIELD GLASS |
| 5 | 84618-76G10-000 | STOPPER,WINDSHIELD GLASS |
| 6 | 84580-75G11-000 | GLASS,QTR WINDOW,R |
| 7 | 84590-75G11-000 | GLASS,QTR WINDOW,L |
| 8 | 84584-75G00-000 | GARNISH,QTR WDO FR,R |
| 9 | 84594-75G00-000 | GARNISH,QTR WDO FR,L |
| 10 | 84513-76F00-000 | MALE,GLASS FASTENER NO.2 |
| 11 | 84572-74G00-000 | MALE,GLASS FASTENER NO.1 |
| 12 | 84589-70G00-000 | SEAL,QUARTER WINDOW |
| 13 | 84514-65D00-000 | FEMALE,GLASS FASTENER NO.1 |
| OEM | Part name | Category |
|---|---|---|
| 84511-82G00-000 | GLASS,WINDSHIELD | windshield (2008-04-01~) |
| 84513-76F00-000 | MALE,GLASS FASTENER NO.2 | windshield (2008-04-01~) |
| 84514-65D00-000 | FEMALE,GLASS FASTENER NO.1 | windshield (2008-04-01~) |
| 84572-74G00-000 | MALE,GLASS FASTENER NO.1 | windshield (2008-04-01~) |
| 84580-75G11-000 | GLASS,QTR WINDOW,R | windshield (2008-04-01~) |
| 84584-75G00-000 | GARNISH,QTR WDO FR,R | windshield (2008-04-01~) |
| 84589-70G00-000 | SEAL,QUARTER WINDOW | windshield (2008-04-01~) |
| 84590-75G11-000 | GLASS,QTR WINDOW,L | windshield (2008-04-01~) |
| 84594-75G00-000 | GARNISH,QTR WDO FR,L | windshield (2008-04-01~) |
| 84611-74G00-000 | MOLDING,WSHLD | windshield (2008-04-01~) |
| 84617-60D00-000 | SPACER,WINDSHIELD GLASS | windshield (2008-04-01~) |
| 84617-76F00-000 | SPACER,WINDSHIELD GLASS | windshield (2008-04-01~) |
| 84618-76G10-000 | STOPPER,WINDSHIELD GLASS | windshield (2008-04-01~) |
