Search › Model › HN22S
HN22S

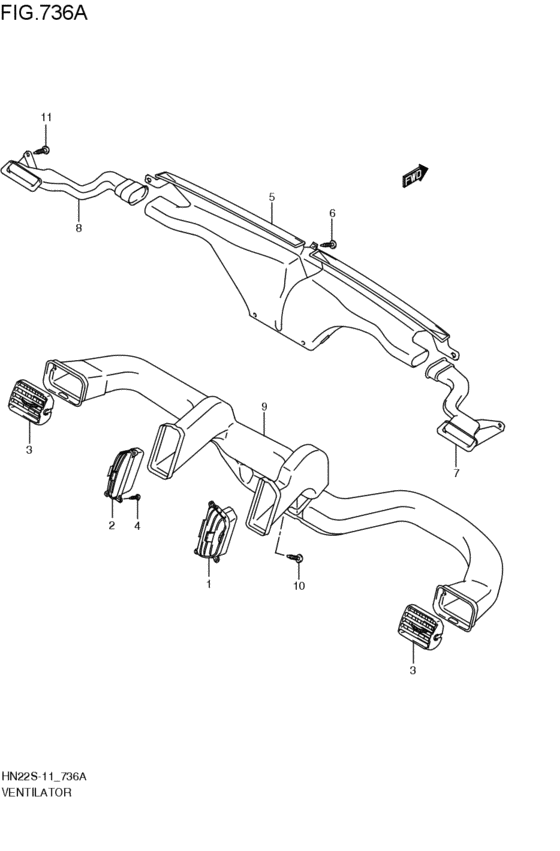

ventilator (2008-04-01~) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-82G00-5PK | LOUVER,CTR VENT DRVR |
| 2 | 73620-82G00-5PK | LOUVER,CTR VENT ASST |
| 3 | 73631-81A11-P4Z | LOUVER,SIDE VENT |
| 4 | 03541-0412A-000 | SCREW - Screw, speedometer |
| 5 | 73660-82G01-000 | NOZZLE,DFR |
| 6 | 03541-0516A-000 | SCREW |
| 7 | 73681-82G00-000 | DUCT,DEMISTER,DRVR |
| 8 | 73691-82G00-000 | DUCT,DEMISTER,ASST |
| 9 | 74620-84H00-000 | DUCT,VENT |
| 10 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | ventilator (2008-04-01~) |
| 03541-0412A-000 | SCREW - Screw, speedometer | ventilator (2008-04-01~) |
| 03541-0516A-000 | SCREW | ventilator (2008-04-01~) |
| 73610-82G00-5PK | LOUVER,CTR VENT DRVR | ventilator (2008-04-01~) |
| 73620-82G00-5PK | LOUVER,CTR VENT ASST | ventilator (2008-04-01~) |
| 73631-81A11-P4Z | LOUVER,SIDE VENT | ventilator (2008-04-01~) |
| 73660-82G01-000 | NOZZLE,DFR | ventilator (2008-04-01~) |
| 73681-82G00-000 | DUCT,DEMISTER,DRVR | ventilator (2008-04-01~) |
| 73691-82G00-000 | DUCT,DEMISTER,ASST | ventilator (2008-04-01~) |
| 74620-84H00-000 | DUCT,VENT | ventilator (2008-04-01~) |
