| 01550-0650A-000 |
Bolt - Bolt (6x50) |

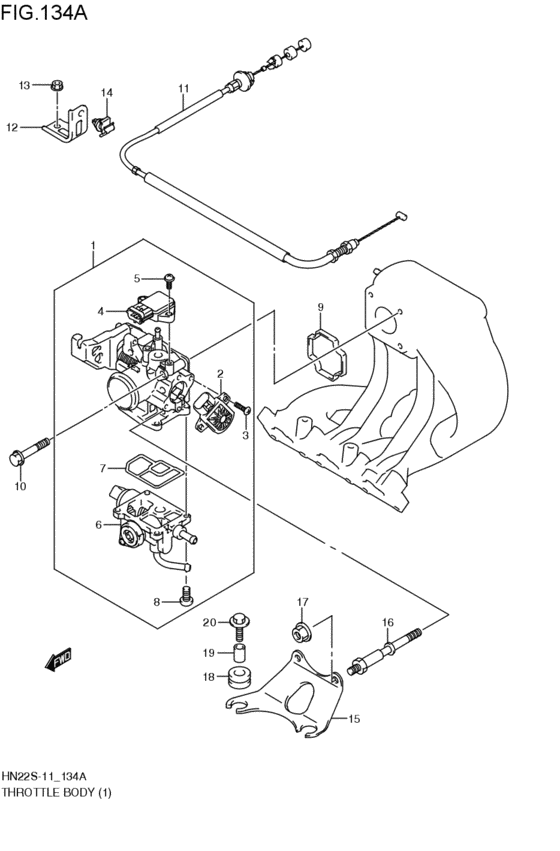

throttle body (4V; 2008-04-01~) |
| 08316-1006A-000 |
NUT |
throttle body (4V; 2008-04-01~) |
| 09116-06150-000 |
BOLT(6X25) - Bolt, air cleaner chamber |
throttle body (4V; 2008-04-01~) |
| 09180-07019-000 |
SPACER(7.2X10X11.5) |
throttle body (4V; 2008-04-01~) |
| 09320-10048-000 |
CUSHION |
throttle body (4V; 2008-04-01~) |
| 09403-05311-000 |
CLAMP |
throttle body (4V; 2008-04-01~) |
| 13161-58J00-000 |
スチフナ,インテークマニホールド,NO.1 |
throttle body (4V; 2008-04-01~) |
| 13400-83H02-000 |
BODY ASSY,THROTTLE |
throttle body (4V; 2008-04-01~) |
| 13420-77G01-000 |
SENSOR,THROTTLE POSITION |
throttle body (4V; 2008-04-01~) |
| 13421-83G00-000 |
GASKET,THROTTLE BODY |
throttle body (4V; 2008-04-01~) |
| 13428-73H00-000 |
ボルト |
throttle body (4V; 2008-04-01~) |
| 13428-77G1V-000 |
SCREW,4X12 |
throttle body (4V; 2008-04-01~) |
| 13601-05148-XC0 |
SCREW(5X14) |
throttle body (4V; 2008-04-01~) |
| 14139-77G10-000 |
GASKET,ISC VALVE |
throttle body (4V; 2008-04-01~) |
| 15910-83G01-000 |
CABLE ASSY,ACCEL |
throttle body (4V; 2008-04-01~) |
| 15918-76G00-000 |
BRACKET,ACCEL CABLE |
throttle body (4V; 2008-04-01~) |
| 18117-83H01-000 |
VALVE,ISC |
throttle body (4V; 2008-04-01~) |
| 18590-68H00-000 |
SENSOR,PRESSURE - Sensor, pressure |
throttle body (4V; 2008-04-01~) |
