HN22S

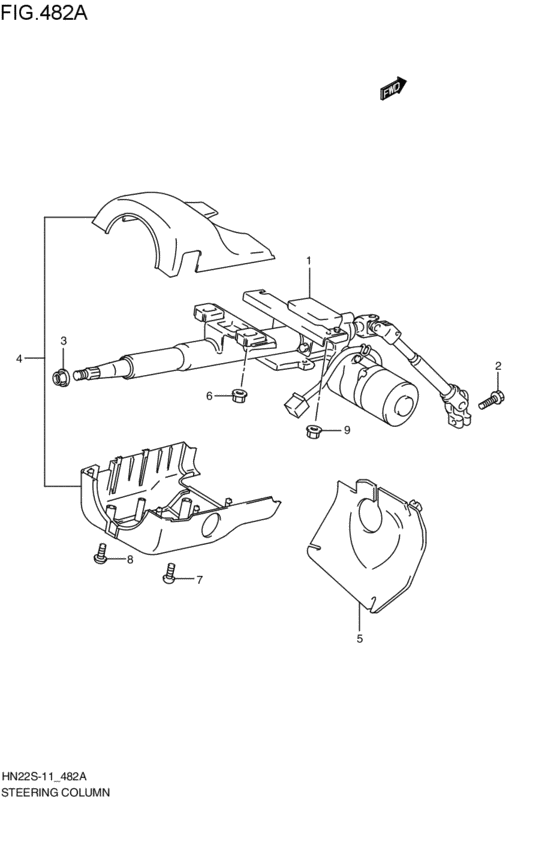

steering column (2008-04-01~) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 48200-74G30-000 | コラムアッシ,コラプシブルステアリング |
| 2 | 09117-08053-000 | BOLT(8X30) |
| 3 | 08316-1012A-000 | NUT |
| 4 | 48400-78F01-P4Z | COVER ASSY,STRG COLUMN |
| 5 | 48481-76G00-000 | COVER,STRG JOINT |
| 6 | 09159-08135-000 | NUT |
| 7 | 09136-05030-000 | SCREW(5X12) |
| 8 | 03211-0512B-000 | SCREW |
| 9 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| OEM | Part name | Category |
|---|---|---|
| 03211-0512B-000 | SCREW | steering column (2008-04-01~) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | steering column (2008-04-01~) |
| 08316-1012A-000 | NUT | steering column (2008-04-01~) |
| 09117-08053-000 | BOLT(8X30) | steering column (2008-04-01~) |
| 09136-05030-000 | SCREW(5X12) | steering column (2008-04-01~) |
| 09159-08135-000 | NUT | steering column (2008-04-01~) |
| 48200-74G30-000 | コラムアッシ,コラプシブルステアリング | steering column (2008-04-01~) |
| 48400-78F01-P4Z | COVER ASSY,STRG COLUMN | steering column (2008-04-01~) |
| 48481-76G00-000 | COVER,STRG JOINT | steering column (2008-04-01~) |
