HN22S

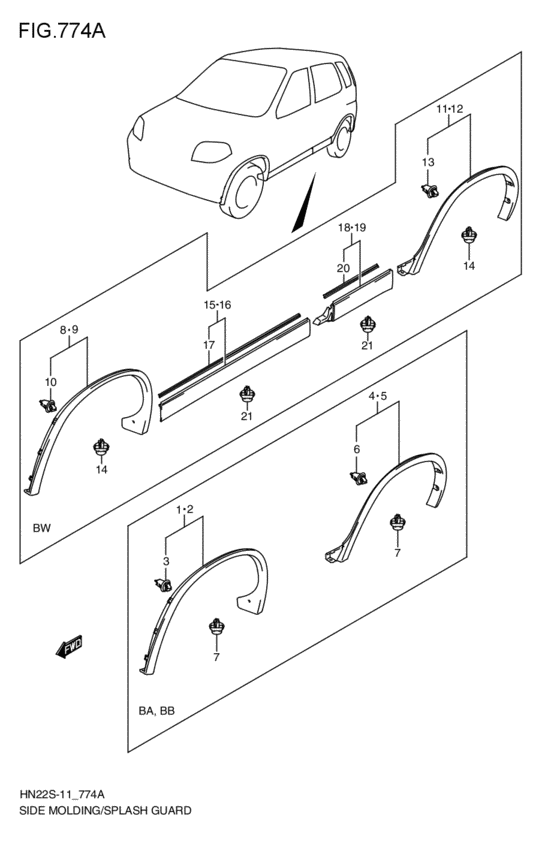

side lacing braid / splash guard (2008-04-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 77510-80G00-W07 | MOLDING,FR FNDR,R |
| 2 | 77520-80G00-W07 | MOLDING,FR FNDR,L |
| 3 | 09409-09304-000 | CLIP |
| 4 | 77530-74G00-W07 | MOLDING,RR SIDE,R |
| 5 | 77540-74G00-W07 | MOLDING,RR SIDE,L |
| 7 | 09409-07332-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 09409-07332-000 | CLIP | side lacing braid / splash guard (2008-04-01~) |
| 09409-09304-000 | CLIP | side lacing braid / splash guard (2008-04-01~) |
| 77510-80G00-W07 | MOLDING,FR FNDR,R | side lacing braid / splash guard (2008-04-01~) |
| 77520-80G00-W07 | MOLDING,FR FNDR,L | side lacing braid / splash guard (2008-04-01~) |
| 77530-74G00-W07 | MOLDING,RR SIDE,R | side lacing braid / splash guard (2008-04-01~) |
| 77540-74G00-W07 | MOLDING,RR SIDE,L | side lacing braid / splash guard (2008-04-01~) |
