Search › Model › HN22S

HN22S

Suzuki KEI-SWIFT · 2001 · 1,822 parts · 107 categories

1,822 items

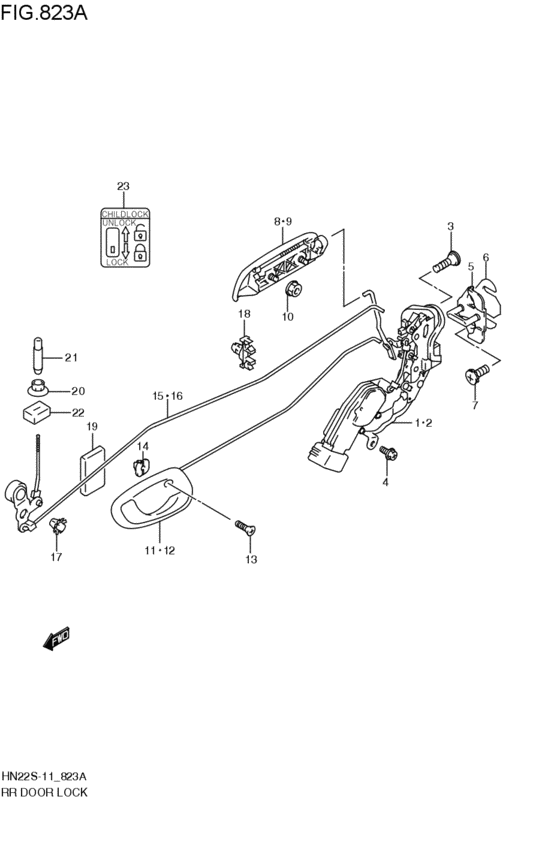

rear door lock (2008-04-01~) 56

#	OEM	Part name
1	82301-83G01-000	LATCH ASSY,RR DR,R
2	82302-83G01-000	LATCH ASSY,RR DR,L
3	09137-06028-000	SCREW(6X18)
4	02162-0612A-000	SCREW - Bolt, bracket
5	82610-75F00-000	STRIKER,DOOR LATCH
6	78199-78000-000	SPACER,DOOR LOCK STRIKER
7	09137-08004-000	SCREW(8X18)
7	09137-08011-000	SCREW(8X18)
8	82801-81A50-ZJ3	HANDLE,SIDE DR OUT,R
8	82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R
8	82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R
8	82801-81A53-ZJ3	Handle Assy,fr Dr Out,r
8	82801-81A50-ZY4	HANDLE,SIDE DR OUT,R
8	82801-81A51-ZY4	HANDLE,SIDE DR OUT,R
8	82801-81A52-ZY4	HANDLE,SIDE DR OUT,R
8	82801-81A53-ZY4	Handle Assy,fr Dr Out,r
8	82801-81A50-Z2S	HANDLE,SIDE DR OUT,R(SILVER)
8	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
8	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
8	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
8	82801-81A50-Z7T	HANDLE,SIDE DR OUT,RH
8	82801-81A51-Z7T	HANDLE,SIDE DR OUT,R
8	82801-81A52-Z7T	HANDLE,SIDE DR OUT,R
8	82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH
9	82802-81A50-ZJ3	HANDLE,SIDE DR OUT,L
9	82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L
9	82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L
9	82802-81A53-ZJ3	Handle Assy,fr Dr Out,l
9	82802-81A50-ZY4	HANDLE,SIDE DR OUT,L
9	82802-81A51-ZY4	HANDLE,SIDE DR OUT,L
9	82802-81A52-ZY4	HANDLE,SIDE DR OUT,L
9	82802-81A53-ZY4	Handle Assy,fr Dr Out,l
9	82802-81A50-Z2S	HANDLE,SIDE DR OUT,L(SILVER)
9	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
9	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
9	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
9	82802-81A50-Z7T	HANDLE,SIDE DR OUT,L
9	82802-81A51-Z7T	HANDLE,SIDE DR OUT,L
9	82802-81A52-Z7T	HANDLE,SIDE DR OUT,L
9	82802-81A53-Z7T	Handle Assy,fr Dr Out,l
10	08316-1006A-000	NUT
11	83103-75G00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)
11	83103-75G01-P4Z	HANDLE,RR DR INSIDE,R
12	83104-75G00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)
12	83104-75G01-P4Z	HANDLE,RR DR INSIDE,L
13	03521-0516B-000	SCREW
14	09148-05031-000	NUT
15	83270-75G00-000	ROD,RR DOOR INSIDE LOCK,R
16	83280-75G00-000	ROD,RR DOOR INSIDE LOCK,L
17	83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD
18	83271-50E00-000	CLIP,DR HANDLE ROD
19	77591-75000-000	PAD
20	82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB
21	82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)
22	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK
23	86951-54G00-000	PLATE,CHILD LOCK CAUTION

OEM	Part name	Category
02162-0612A-000	SCREW - Bolt, bracket	rear door lock (2008-04-01~)
03521-0516B-000	SCREW	rear door lock (2008-04-01~)
08316-1006A-000	NUT	rear door lock (2008-04-01~)
09137-06028-000	SCREW(6X18)	rear door lock (2008-04-01~)
09137-08004-000	SCREW(8X18)	rear door lock (2008-04-01~)
09137-08011-000	SCREW(8X18)	rear door lock (2008-04-01~)
09148-05031-000	NUT	rear door lock (2008-04-01~)
77591-75000-000	PAD	rear door lock (2008-04-01~)
78199-78000-000	SPACER,DOOR LOCK STRIKER	rear door lock (2008-04-01~)
82301-83G01-000	LATCH ASSY,RR DR,R	rear door lock (2008-04-01~)
82302-83G01-000	LATCH ASSY,RR DR,L	rear door lock (2008-04-01~)
82610-75F00-000	STRIKER,DOOR LATCH	rear door lock (2008-04-01~)
82801-81A50-Z2S	HANDLE,SIDE DR OUT,R(SILVER)	rear door lock (2008-04-01~)
82801-81A50-Z7T	HANDLE,SIDE DR OUT,RH	rear door lock (2008-04-01~)
82801-81A50-ZJ3	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A50-ZY4	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A51-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A51-ZY4	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A52-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A52-ZY4	HANDLE,SIDE DR OUT,R	rear door lock (2008-04-01~)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	rear door lock (2008-04-01~)
82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH	rear door lock (2008-04-01~)
82801-81A53-ZJ3	Handle Assy,fr Dr Out,r	rear door lock (2008-04-01~)
82801-81A53-ZY4	Handle Assy,fr Dr Out,r	rear door lock (2008-04-01~)
82802-81A50-Z2S	HANDLE,SIDE DR OUT,L(SILVER)	rear door lock (2008-04-01~)
82802-81A50-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A50-ZJ3	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A50-ZY4	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A51-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A51-ZY4	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A52-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A52-ZY4	HANDLE,SIDE DR OUT,L	rear door lock (2008-04-01~)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	rear door lock (2008-04-01~)
82802-81A53-Z7T	Handle Assy,fr Dr Out,l	rear door lock (2008-04-01~)
82802-81A53-ZJ3	Handle Assy,fr Dr Out,l	rear door lock (2008-04-01~)
82802-81A53-ZY4	Handle Assy,fr Dr Out,l	rear door lock (2008-04-01~)
82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)	rear door lock (2008-04-01~)
82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB	rear door lock (2008-04-01~)
83103-75G00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)	rear door lock (2008-04-01~)
83103-75G01-P4Z	HANDLE,RR DR INSIDE,R	rear door lock (2008-04-01~)
83104-75G00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)	rear door lock (2008-04-01~)
83104-75G01-P4Z	HANDLE,RR DR INSIDE,L	rear door lock (2008-04-01~)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	rear door lock (2008-04-01~)
83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD	rear door lock (2008-04-01~)
83270-75G00-000	ROD,RR DOOR INSIDE LOCK,R	rear door lock (2008-04-01~)
83271-50E00-000	CLIP,DR HANDLE ROD	rear door lock (2008-04-01~)
83280-75G00-000	ROD,RR DOOR INSIDE LOCK,L	rear door lock (2008-04-01~)
86951-54G00-000	PLATE,CHILD LOCK CAUTION	rear door lock (2008-04-01~)

Source: Public OEM parts-catalog data
Variants: 2 / 153
Category: 107
Collected: 2026-08-01
