Search › Model › HN22S
HN22S

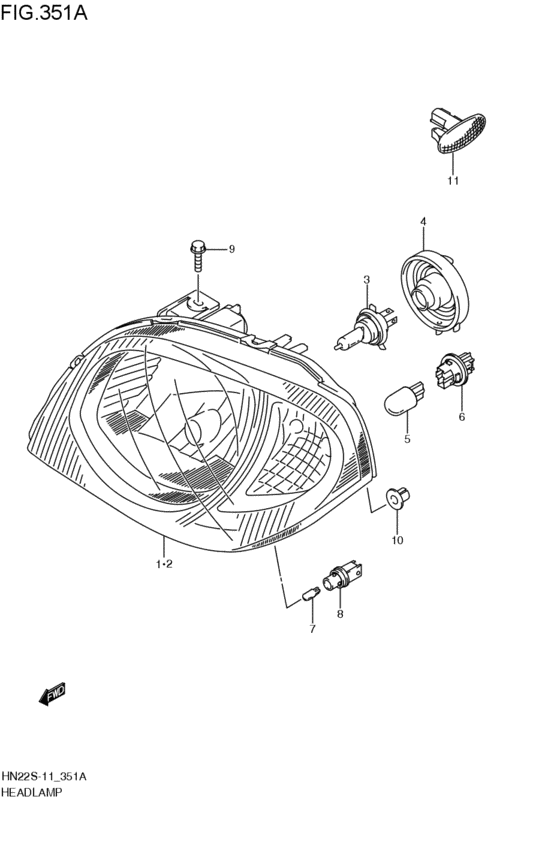

head lamp (2008-04-01~) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-82G20-000 | UNIT,HEADLAMP,R |
| 2 | 35320-82G20-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-77A00-000 | COVER,SOCKET |
| 5 | 09471-12202-000 | BULB(12V21W/WY21W,AMBER) |
| 6 | 35118-75H20-000 | SOCKET,TURN SIGNAL |
| 7 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 8 | 35118-76F00-000 | SOCKET,POSITION LAMP |
| 9 | 09122-76006-000 | SCREW(6X16) |
| 10 | 35153-74G00-000 | GROMMET,HEADLAMP |
| 11 | 36410-63J01-000 | Lamp assy,side turn sig |
| 11 | 36410-63J02-000 | LAMP ASSY,SIDE TURN SIG |
| OEM | Part name | Category |
|---|---|---|
| 09122-76006-000 | SCREW(6X16) | head lamp (2008-04-01~) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | head lamp (2008-04-01~) |
| 09471-12182-000 | BULB(12V60/55W,H4) | head lamp (2008-04-01~) |
| 09471-12202-000 | BULB(12V21W/WY21W,AMBER) | head lamp (2008-04-01~) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | head lamp (2008-04-01~) |
| 35118-75H20-000 | SOCKET,TURN SIGNAL | head lamp (2008-04-01~) |
| 35118-76F00-000 | SOCKET,POSITION LAMP | head lamp (2008-04-01~) |
| 35120-82G20-000 | UNIT,HEADLAMP,R | head lamp (2008-04-01~) |
| 35125-77A00-000 | COVER,SOCKET | head lamp (2008-04-01~) |
| 35153-74G00-000 | GROMMET,HEADLAMP | head lamp (2008-04-01~) |
| 35320-82G20-000 | UNIT,HEADLAMP,L | head lamp (2008-04-01~) |
| 36410-63J01-000 | Lamp assy,side turn sig | head lamp (2008-04-01~) |
| 36410-63J02-000 | LAMP ASSY,SIDE TURN SIG | head lamp (2008-04-01~) |
