Search › Model › HN22S

HN22S

Suzuki KEI-SWIFT · 2001 · 1,822 parts · 107 categories

1,822 items

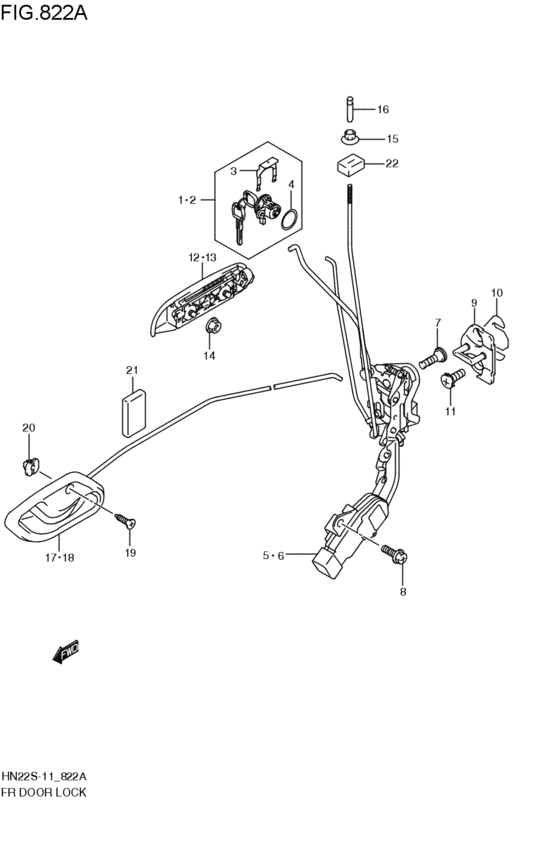

front door lock (2008-04-01~) 55

#	OEM	Part name
1	82270-76810-000	CYLINDER,FR DR LOCK,R
2	82280-76810-000	CYLINDER,FR DR LOCK,L
3	82291-81A00-000	RETAINER,FR DR CYLINDER
4	82292-81A00-000	SHEET,DOOR LATCH CYLINDER
5	82201-83G11-000	LATCH ASSY,FR DR,R
6	82202-83G01-000	LATCH ASSY,FR DR,L
7	09137-06028-000	SCREW(6X18)
8	02162-0612A-000	SCREW - Bolt, bracket
9	82610-75F00-000	STRIKER,DOOR LATCH
10	78199-78000-000	SPACER,DOOR LOCK STRIKER
11	09137-08004-000	SCREW(8X18)
11	09137-08011-000	SCREW(8X18)
12	82801-81A50-ZJ3	HANDLE,SIDE DR OUT,R
12	82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R
12	82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R
12	82801-81A53-ZJ3	Handle Assy,fr Dr Out,r
12	82801-81A50-ZY4	HANDLE,SIDE DR OUT,R
12	82801-81A51-ZY4	HANDLE,SIDE DR OUT,R
12	82801-81A52-ZY4	HANDLE,SIDE DR OUT,R
12	82801-81A53-ZY4	Handle Assy,fr Dr Out,r
12	82801-81A50-Z2S	HANDLE,SIDE DR OUT,R(SILVER)
12	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
12	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
12	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
12	82801-81A50-Z7T	HANDLE,SIDE DR OUT,RH
12	82801-81A51-Z7T	HANDLE,SIDE DR OUT,R
12	82801-81A52-Z7T	HANDLE,SIDE DR OUT,R
12	82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH
13	82802-81A50-ZJ3	HANDLE,SIDE DR OUT,L
13	82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L
13	82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L
13	82802-81A53-ZJ3	Handle Assy,fr Dr Out,l
13	82802-81A50-ZY4	HANDLE,SIDE DR OUT,L
13	82802-81A51-ZY4	HANDLE,SIDE DR OUT,L
13	82802-81A52-ZY4	HANDLE,SIDE DR OUT,L
13	82802-81A53-ZY4	Handle Assy,fr Dr Out,l
13	82802-81A50-Z2S	HANDLE,SIDE DR OUT,L(SILVER)
13	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
13	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
13	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
13	82802-81A50-Z7T	HANDLE,SIDE DR OUT,L
13	82802-81A51-Z7T	HANDLE,SIDE DR OUT,L
13	82802-81A52-Z7T	HANDLE,SIDE DR OUT,L
13	82802-81A53-Z7T	Handle Assy,fr Dr Out,l
14	08316-1006A-000	NUT
15	82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB
16	82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)
17	83101-75G00-P4Z	HANDLE,FR DR INSIDE,R(GRAY)
17	83101-75G01-P4Z	HANDLE,FR DR INSIDE,R
18	83102-75G00-P4Z	HANDLE,FR DR INSIDE,L(GRAY)
18	83102-75G01-P4Z	HANDLE,FR DR INSIDE,L
19	03521-0516B-000	SCREW
20	09148-05031-000	NUT
21	77591-75000-000	PAD
22	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK

OEM	Part name	Category
02162-0612A-000	SCREW - Bolt, bracket	front door lock (2008-04-01~)
03521-0516B-000	SCREW	front door lock (2008-04-01~)
08316-1006A-000	NUT	front door lock (2008-04-01~)
09137-06028-000	SCREW(6X18)	front door lock (2008-04-01~)
09137-08004-000	SCREW(8X18)	front door lock (2008-04-01~)
09137-08011-000	SCREW(8X18)	front door lock (2008-04-01~)
09148-05031-000	NUT	front door lock (2008-04-01~)
77591-75000-000	PAD	front door lock (2008-04-01~)
78199-78000-000	SPACER,DOOR LOCK STRIKER	front door lock (2008-04-01~)
82201-83G11-000	LATCH ASSY,FR DR,R	front door lock (2008-04-01~)
82202-83G01-000	LATCH ASSY,FR DR,L	front door lock (2008-04-01~)
82270-76810-000	CYLINDER,FR DR LOCK,R	front door lock (2008-04-01~)
82280-76810-000	CYLINDER,FR DR LOCK,L	front door lock (2008-04-01~)
82291-81A00-000	RETAINER,FR DR CYLINDER	front door lock (2008-04-01~)
82292-81A00-000	SHEET,DOOR LATCH CYLINDER	front door lock (2008-04-01~)
82610-75F00-000	STRIKER,DOOR LATCH	front door lock (2008-04-01~)
82801-81A50-Z2S	HANDLE,SIDE DR OUT,R(SILVER)	front door lock (2008-04-01~)
82801-81A50-Z7T	HANDLE,SIDE DR OUT,RH	front door lock (2008-04-01~)
82801-81A50-ZJ3	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A50-ZY4	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A51-Z7T	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A51-ZY4	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A52-Z7T	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A52-ZY4	HANDLE,SIDE DR OUT,R	front door lock (2008-04-01~)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	front door lock (2008-04-01~)
82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH	front door lock (2008-04-01~)
82801-81A53-ZJ3	Handle Assy,fr Dr Out,r	front door lock (2008-04-01~)
82801-81A53-ZY4	Handle Assy,fr Dr Out,r	front door lock (2008-04-01~)
82802-81A50-Z2S	HANDLE,SIDE DR OUT,L(SILVER)	front door lock (2008-04-01~)
82802-81A50-Z7T	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A50-ZJ3	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A50-ZY4	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A51-Z7T	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A51-ZY4	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A52-Z7T	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A52-ZY4	HANDLE,SIDE DR OUT,L	front door lock (2008-04-01~)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	front door lock (2008-04-01~)
82802-81A53-Z7T	Handle Assy,fr Dr Out,l	front door lock (2008-04-01~)
82802-81A53-ZJ3	Handle Assy,fr Dr Out,l	front door lock (2008-04-01~)
82802-81A53-ZY4	Handle Assy,fr Dr Out,l	front door lock (2008-04-01~)
82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)	front door lock (2008-04-01~)
82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB	front door lock (2008-04-01~)
83101-75G00-P4Z	HANDLE,FR DR INSIDE,R(GRAY)	front door lock (2008-04-01~)
83101-75G01-P4Z	HANDLE,FR DR INSIDE,R	front door lock (2008-04-01~)
83102-75G00-P4Z	HANDLE,FR DR INSIDE,L(GRAY)	front door lock (2008-04-01~)
83102-75G01-P4Z	HANDLE,FR DR INSIDE,L	front door lock (2008-04-01~)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	front door lock (2008-04-01~)
