Search › Model › HN22S
HN22S

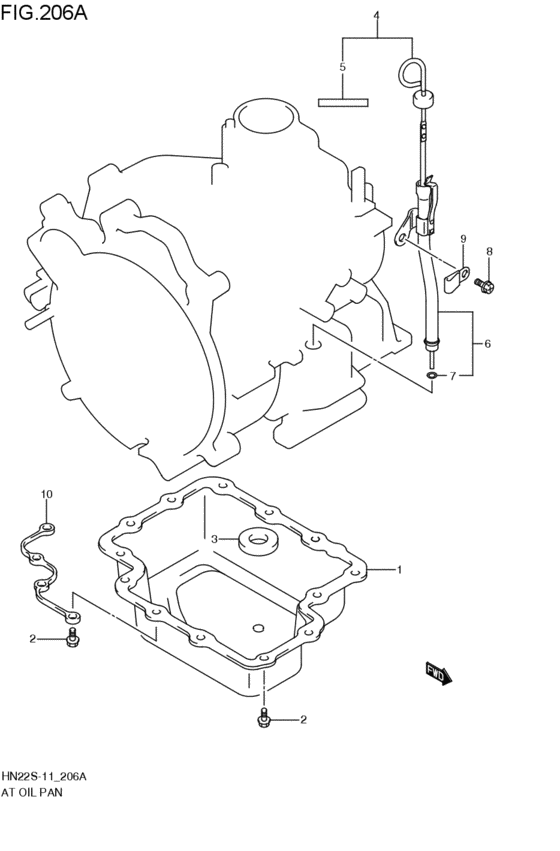

at - oil pan (AT; 2008-04-01~) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 24761-78G30-000 | PAN,OIL |
| 2 | 24362-78G50-000 | Bolt |
| 3 | 24861-78H10-000 | MAGNET,OIL CLEANER |
| 4 | 24830-66K10-000 | GAUGE,T/M OIL LEVEL |
| 5 | 24839-78G30-000 | EMBLEM,ATF |
| 6 | 24770-66K10-000 | TUBE ASSY,T/M OIL FILLER |
| 7 | 09280-09008-000 | O RING(D:2.1,ID:8.8) - O ring (d:2.1,id:8.8) |
| 8 | 24772-78G10-000 | Bolt |
| 9 | 26585-81J10-000 | CLIP,SOL HARNESS |
| 10 | 24762-78G30-000 | STIFFENER,OIL PAN |
| OEM | Part name | Category |
|---|---|---|
| 09280-09008-000 | O RING(D:2.1,ID:8.8) - O ring (d:2.1,id:8.8) | at - oil pan (AT; 2008-04-01~) |
| 24362-78G50-000 | Bolt | at - oil pan (AT; 2008-04-01~) |
| 24761-78G30-000 | PAN,OIL | at - oil pan (AT; 2008-04-01~) |
| 24762-78G30-000 | STIFFENER,OIL PAN | at - oil pan (AT; 2008-04-01~) |
| 24770-66K10-000 | TUBE ASSY,T/M OIL FILLER | at - oil pan (AT; 2008-04-01~) |
| 24772-78G10-000 | Bolt | at - oil pan (AT; 2008-04-01~) |
| 24830-66K10-000 | GAUGE,T/M OIL LEVEL | at - oil pan (AT; 2008-04-01~) |
| 24839-78G30-000 | EMBLEM,ATF | at - oil pan (AT; 2008-04-01~) |
| 24861-78H10-000 | MAGNET,OIL CLEANER | at - oil pan (AT; 2008-04-01~) |
| 26585-81J10-000 | CLIP,SOL HARNESS | at - oil pan (AT; 2008-04-01~) |
