Search › Model › HN12S

HN12S

Suzuki KEI-SWIFT · 2001 · 2,190 parts · 100 categories

2,190 items

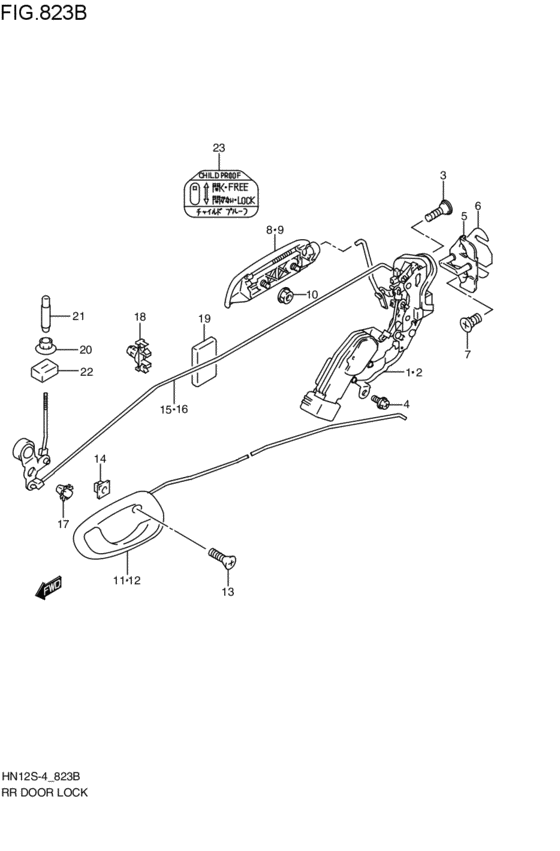

rear door lock (2001-03-01~2001-12-01) 70

#	OEM	Part name
1	82301-83G00-000	ラッチアッシ,リヤドア,ライト
1	82301-83G01-000	LATCH ASSY,RR DR,R
2	82302-83G00-000	ラッチアッシ,リヤドア,レフト
2	82302-83G01-000	LATCH ASSY,RR DR,L
3	09137-06028-000	SCREW(6X18)
4	02162-06123-000	Bolt (6x12)
4	02162-0612B-000	SCREW - Bolt
4	02162-0612A-000	SCREW - Bolt, bracket
5	82610-75F00-000	STRIKER,DOOR LATCH
6	78199-78000-000	SPACER,DOOR LOCK STRIKER
7	09137-08006-000	Screw - Screw (8x18)
7	09137-08011-000	SCREW(8X18)
7	09137-08004-000	SCREW(8X18)
8	82801-81A01-ZJ3	ハンドルアッシ,ドアアウト,ライト(ブラック)
8	82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R
8	82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R
8	82801-81A53-ZJ3	Handle Assy,fr Dr Out,r
8	82801-81A01-Z2S	Handle, door out rh (silver)
8	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
8	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
8	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
8	82801-81A01-Z7T	ハンドルアッシ,ドアアウト,ライト(ホワイト)
8	82801-81A51-Z7T	HANDLE,SIDE DR OUT,R
8	82801-81A52-Z7T	HANDLE,SIDE DR OUT,R
8	82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH
8	82801-81A01-Z9T	ハンドルアッシ,ドアアウト,ライト(レッド)
8	82801-81A51-Z9T	HANDLE,SIDE DR OUT,R
8	82801-81A52-Z9T	HANDLE,SIDE DR OUT,R
8	82801-81A53-Z9T	Handle Assy,fr Dr Out,r
8	82801-81A01-ZD9	ハンドルアッシ,ドアアウト,ライト(グリーン)
8	82801-81A50-ZD9	HANDLE,SIDE DR OUT,R
8	82801-81A51-ZD9	HANDLE,SIDE DR OUT,R
8	82801-81A52-ZD9	HANDLE,SIDE DR OUT,R
9	82802-81A01-ZD9	ハンドルアッシ,ドアアウト,レフト(グリーン)
9	82802-81A50-ZD9	HANDLE,SIDE DR OUT,L
9	82802-81A51-ZD9	HANDLE,SIDE DR OUT,L
9	82802-81A52-ZD9	HANDLE,SIDE DR OUT,L
9	82802-81A01-ZJ3	ハンドルアッシ,ドアアウト,レフト(ブラック)
9	82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L
9	82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L
9	82802-81A53-ZJ3	Handle Assy,fr Dr Out,l
9	82802-81A01-Z2S	Handle, door out lh (silver)
9	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
9	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
9	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
9	82802-81A01-Z7T	ハンドルアッシ,ドアアウト,レフト(ホワイト)
9	82802-81A51-Z7T	HANDLE,SIDE DR OUT,L
9	82802-81A52-Z7T	HANDLE,SIDE DR OUT,L
9	82802-81A53-Z7T	Handle Assy,fr Dr Out,l
9	82802-81A01-Z9T	ハンドルアッシ,ドアアウト,レフト(レッド)
9	82802-81A50-Z9T	HANDLE,SIDE DR OUT,L
9	82802-81A52-Z9T	HANDLE,SIDE DR OUT,L
10	08316-10063-000	Nut
10	08316-1006B-000	NUT
11	83103-75G00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)
11	83103-75G01-P4Z	HANDLE,RR DR INSIDE,R
12	83104-75G00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)
12	83104-75G01-P4Z	HANDLE,RR DR INSIDE,L
13	03521-05163-000	Screw
13	03521-0516A-000	SCREW
14	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
15	83270-75G00-000	ROD,RR DOOR INSIDE LOCK,R
16	83280-75G00-000	ROD,RR DOOR INSIDE LOCK,L
17	83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD
18	83271-50E00-000	CLIP,DR HANDLE ROD
19	77591-75000-000	PAD
20	82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB
21	82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)
22	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK
23	86951-78004-000	CAUTION PLATE,CHILD PROOF

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	rear door lock (2001-03-01~2001-12-01)
02162-0612A-000	SCREW - Bolt, bracket	rear door lock (2001-03-01~2001-12-01)
02162-0612B-000	SCREW - Bolt	rear door lock (2001-03-01~2001-12-01)
03521-05163-000	Screw	rear door lock (2001-03-01~2001-12-01)
03521-0516A-000	SCREW	rear door lock (2001-03-01~2001-12-01)
08316-10063-000	Nut	rear door lock (2001-03-01~2001-12-01)
08316-1006B-000	NUT	rear door lock (2001-03-01~2001-12-01)
09137-06028-000	SCREW(6X18)	rear door lock (2001-03-01~2001-12-01)
09137-08004-000	SCREW(8X18)	rear door lock (2001-03-01~2001-12-01)
09137-08006-000	Screw - Screw (8x18)	rear door lock (2001-03-01~2001-12-01)
09137-08011-000	SCREW(8X18)	rear door lock (2001-03-01~2001-12-01)
77591-75000-000	PAD	rear door lock (2001-03-01~2001-12-01)
78199-78000-000	SPACER,DOOR LOCK STRIKER	rear door lock (2001-03-01~2001-12-01)
82301-83G00-000	ラッチアッシ,リヤドア,ライト	rear door lock (2001-03-01~2001-12-01)
82301-83G01-000	LATCH ASSY,RR DR,R	rear door lock (2001-03-01~2001-12-01)
82302-83G00-000	ラッチアッシ,リヤドア,レフト	rear door lock (2001-03-01~2001-12-01)
82302-83G01-000	LATCH ASSY,RR DR,L	rear door lock (2001-03-01~2001-12-01)
82610-75F00-000	STRIKER,DOOR LATCH	rear door lock (2001-03-01~2001-12-01)
82801-81A01-Z2S	Handle, door out rh (silver)	rear door lock (2001-03-01~2001-12-01)
82801-81A01-Z7T	ハンドルアッシ,ドアアウト,ライト(ホワイト)	rear door lock (2001-03-01~2001-12-01)
82801-81A01-Z9T	ハンドルアッシ,ドアアウト,ライト(レッド)	rear door lock (2001-03-01~2001-12-01)
82801-81A01-ZD9	ハンドルアッシ,ドアアウト,ライト(グリーン)	rear door lock (2001-03-01~2001-12-01)
82801-81A01-ZJ3	ハンドルアッシ,ドアアウト,ライト(ブラック)	rear door lock (2001-03-01~2001-12-01)
82801-81A50-ZD9	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A51-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A51-Z9T	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A51-ZD9	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A52-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A52-Z9T	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A52-ZD9	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R	rear door lock (2001-03-01~2001-12-01)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	rear door lock (2001-03-01~2001-12-01)
82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH	rear door lock (2001-03-01~2001-12-01)
82801-81A53-Z9T	Handle Assy,fr Dr Out,r	rear door lock (2001-03-01~2001-12-01)
82801-81A53-ZJ3	Handle Assy,fr Dr Out,r	rear door lock (2001-03-01~2001-12-01)
82802-81A01-Z2S	Handle, door out lh (silver)	rear door lock (2001-03-01~2001-12-01)
82802-81A01-Z7T	ハンドルアッシ,ドアアウト,レフト(ホワイト)	rear door lock (2001-03-01~2001-12-01)
82802-81A01-Z9T	ハンドルアッシ,ドアアウト,レフト(レッド)	rear door lock (2001-03-01~2001-12-01)
82802-81A01-ZD9	ハンドルアッシ,ドアアウト,レフト(グリーン)	rear door lock (2001-03-01~2001-12-01)
82802-81A01-ZJ3	ハンドルアッシ,ドアアウト,レフト(ブラック)	rear door lock (2001-03-01~2001-12-01)
82802-81A50-Z9T	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A50-ZD9	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A51-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A51-ZD9	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A52-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A52-Z9T	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A52-ZD9	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L	rear door lock (2001-03-01~2001-12-01)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	rear door lock (2001-03-01~2001-12-01)
82802-81A53-Z7T	Handle Assy,fr Dr Out,l	rear door lock (2001-03-01~2001-12-01)
82802-81A53-ZJ3	Handle Assy,fr Dr Out,l	rear door lock (2001-03-01~2001-12-01)
82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)	rear door lock (2001-03-01~2001-12-01)
82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB	rear door lock (2001-03-01~2001-12-01)
83103-75G00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)	rear door lock (2001-03-01~2001-12-01)
83103-75G01-P4Z	HANDLE,RR DR INSIDE,R	rear door lock (2001-03-01~2001-12-01)
83104-75G00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)	rear door lock (2001-03-01~2001-12-01)
83104-75G01-P4Z	HANDLE,RR DR INSIDE,L	rear door lock (2001-03-01~2001-12-01)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	rear door lock (2001-03-01~2001-12-01)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	rear door lock (2001-03-01~2001-12-01)
83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD	rear door lock (2001-03-01~2001-12-01)
83270-75G00-000	ROD,RR DOOR INSIDE LOCK,R	rear door lock (2001-03-01~2001-12-01)
83271-50E00-000	CLIP,DR HANDLE ROD	rear door lock (2001-03-01~2001-12-01)
83280-75G00-000	ROD,RR DOOR INSIDE LOCK,L	rear door lock (2001-03-01~2001-12-01)
86951-78004-000	CAUTION PLATE,CHILD PROOF	rear door lock (2001-03-01~2001-12-01)

Source: Public OEM parts-catalog data
Variants: 2 / 17
Category: 100
Collected: 2026-08-01
