| 01550-06303-000 |
Bolt (6x30) - Bolt, head cover l:30 |

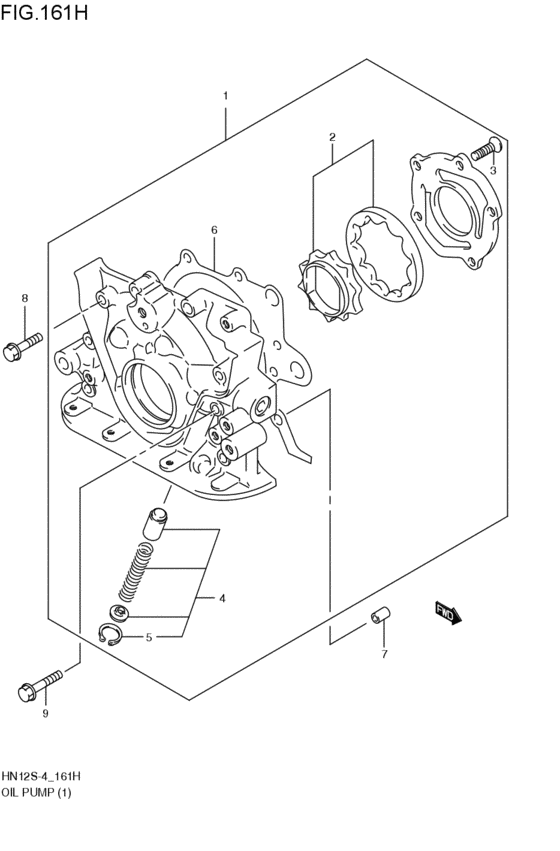

Oil pump (F6A; 2001-03-01~2001-12-01) |
| 01550-0630A-000 |
Bolt |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 01550-06353-000 |
Bolt |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 01550-0635A-000 |
Bolt |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 01550-0635B-000 |
Bolt |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 02122-06163-000 |
Screw |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 02122-0616A-000 |
SCREW |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 02122-0616B-000 |
SCREW - Screw, intake pipe |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 04211-09109-000 |
PIN - Knock pin |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 08331-41156-000 |
Circlip |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 08331-4115A-000 |
CIRCLIP |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 16100-76811-000 |
PUMP SET,OIL |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 16119-76G00-000 |
GASKET,OIL PUMP CASE |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 16130-70B01-000 |
ROTOR SET,OIL PUMP - Rotor set, oil pump |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 16150-60A10-000 |
Valve set, oil pump relief |
Oil pump (F6A; 2001-03-01~2001-12-01) |
| 16150-60A20-000 |
VALVE SET,OIL PUMP RELIEF |
Oil pump (F6A; 2001-03-01~2001-12-01) |
