| 08310-00083-000 |
Nut |

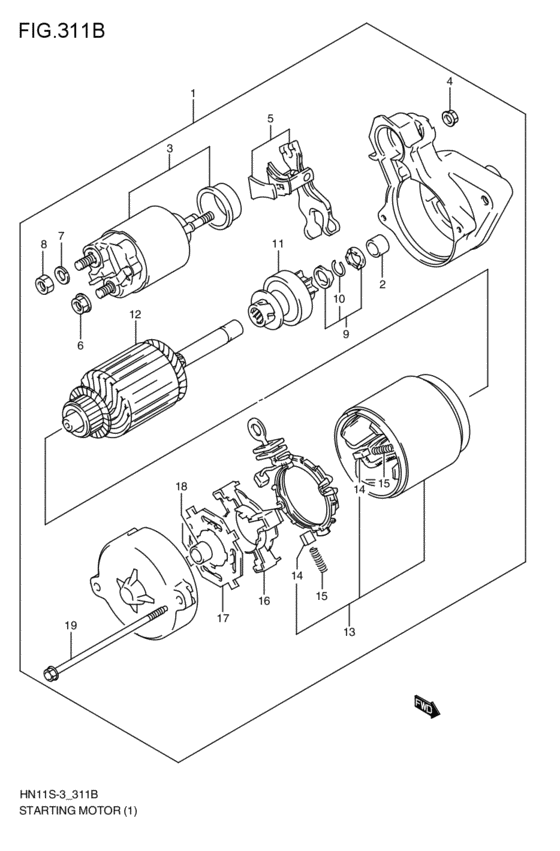

starting motor (MT; 2000-10-01~2001-05-01) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08310-0008B-000 |
NUT |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08316-10063-000 |
Nut |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08316-1006B-000 |
NUT |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08316-10083-000 |
Nut |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08316-1008B-000 |
NUT |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08321-01083-000 |
Lock washer |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08321-0108A-000 |
WASHER,LOCK |
starting motor (MT; 2000-10-01~2001-05-01) |
| 08321-0108B-000 |
WASHER,LOCK |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31100-70B22-000 |
Motor assy, starting |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31100-76G10-000 |
MOTOR ASSY,STARTING |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31110-52A50-000 |
YOKE ASSY |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31131-51A10-000 |
BRUSH |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31135-51A10-000 |
SPRING,BRUSH |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31152-51A10-000 |
BUSH |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31172-51A10-000 |
BUSH |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31173-51A10-000 |
HOLDER,BRUSH |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31175-51A10-000 |
INSULATOR |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31191-85020-000 |
LEVER ASSY |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31220-51A10-000 |
SWITCH ASSY |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31281-51A10-000 |
Bolt |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31310-51A10-000 |
NUT,PINION STOP |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31311-80110-000 |
ARMATURE |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31312-51A10-000 |
RING,SNAP |
starting motor (MT; 2000-10-01~2001-05-01) |
| 31320-70B20-000 |
CLUTCH ASSY |
starting motor (MT; 2000-10-01~2001-05-01) |
