HJ61

Toyota LAND-CRUISER · 1985 · 5,651 parts · 212 categories

5,651 items

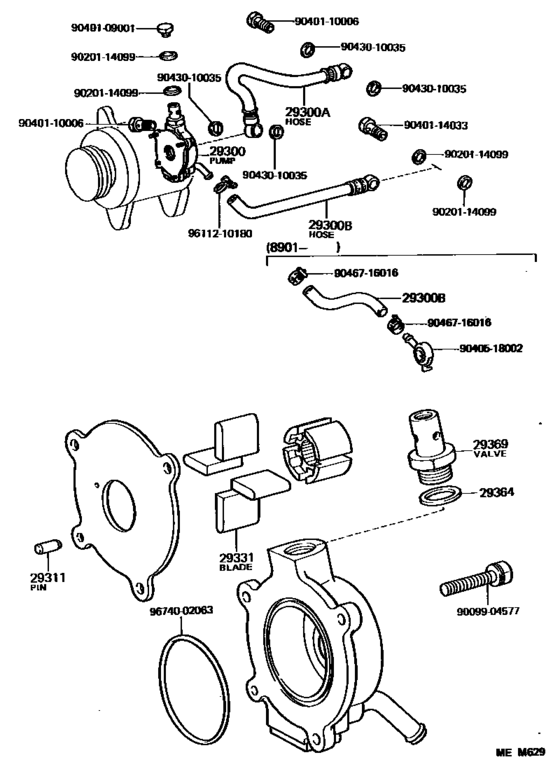

Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H) 21

#	OEM	Part name
29300	29300-54050	Pump Assy, Vacuum
29300	90923-02070	Hose, Vacuum Pump Oil Inlet
29300	29611-68010	Hose, Vacuum Pump Oil Outlet
29300	90923-02079	Hose, Vacuum Pump Oil Outlet
29311	90099-08082	Pin, Vacuum Pump Dowel, No.1
29311	29311-76010	Pin, Vacuum Pump Dowel, No.1
29331	29331-56070	Blade, Vacuum Pump, A
29364	29364-66010	Washer, Vacuum Pump
29369	29369-56070	Valve Sub-Assy, Check
9009904577	90099-04577	New Genuine Part
9020114099	90201-14099	Gasket(For Vacuum Pump Union)
9040109001	90401-09001	Bolt, Union(For Vacuum Pump Union)
9040109001	90401-09003	Bolt, Union(For Vacuum Pump Union)
9040110006	90401-10006	Bolt, Union(For Turbo Oil Inlet Pipe)
9040114033	90401-14033	Bolt, Union
9040518002	90405-18002	New Genuine Part
9043010035	90430-10035	Gasket(For Water Hole)
9046716016	90467-16016	Clamp Or Crip, Hose
9046716016	90467-15018	Clamp Or Crip, Hose
9611210180	96112-10180	Clamp(For Oil Pipe)
9674002063	96740-02063	Packing, Vacuum Pump

OEM	Part name	Category
29300-54050	Pump Assy, Vacuum	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
29311-76010	Pin, Vacuum Pump Dowel, No.1	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
29331-56070	Blade, Vacuum Pump, A	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
29364-66010	Washer, Vacuum Pump	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
29369-56070	Valve Sub-Assy, Check	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
29611-68010	Hose, Vacuum Pump Oil Outlet	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90099-04577	New Genuine Part	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90099-08082	Pin, Vacuum Pump Dowel, No.1	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90201-14099	Gasket(For Vacuum Pump Union)	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90401-09001	Bolt, Union(For Vacuum Pump Union)	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90401-09003	Bolt, Union(For Vacuum Pump Union)	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90401-10006	Bolt, Union(For Turbo Oil Inlet Pipe)	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90401-14033	Bolt, Union	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90405-18002	New Genuine Part	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90430-10035	Gasket(For Water Hole)	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90467-15018	Clamp Or Crip, Hose	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90467-16016	Clamp Or Crip, Hose	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90923-02070	Hose, Vacuum Pump Oil Inlet	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
90923-02079	Hose, Vacuum Pump Oil Outlet	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
96112-10180	Clamp(For Oil Pipe)	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
96740-02063	Packing, Vacuum Pump	Vacuum Pump ([08.1987 - ] (8708-8808)3B ; (8708- )12HT,2H)
