HJ61

Toyota LAND-CRUISER · 1985 · 5,651 parts · 212 categories

5,651 items

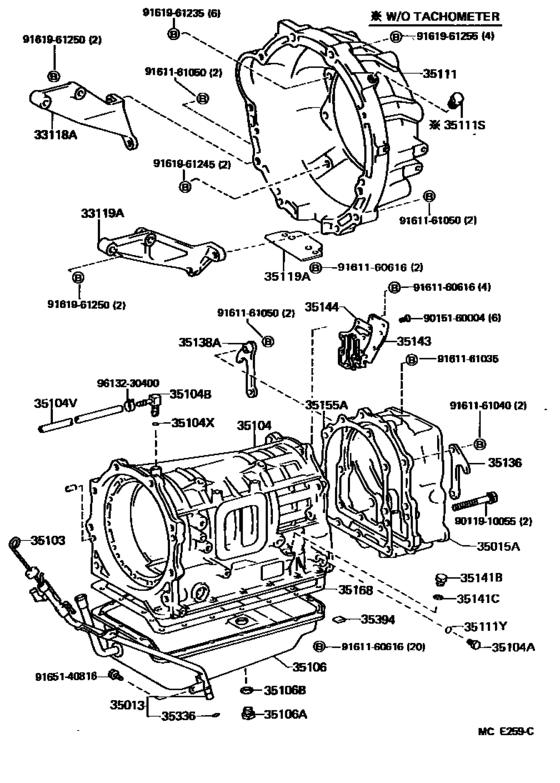

Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC) 54

#	OEM	Part name
33118	33118-60010	Plate, Stiffener, Rh(Mtm)
33119	33119-60010	Plate, Stiffener, Lh(Mtm)
35013	35013-60020	Tube Sub-Assy, Transmission Oil Filler
35013	35013-60021	Tube Sub-Assy, Transmission Oil Filler
35015	35015-60010	Adapter Sub-Assy, Transmission Case, Rear
35015	35015-60012	Adapter Sub-assy, Transmission Case, Rear
35015	35136-60010	Hanger, Transmission,no.1
35015	90119-08A43	New Genuine Part
35015	35015-60011	Adapter Sub-Assy, Transmission Case, Rear
35103	35103-60020	Gage Sub-Assy, Transmission Oil Level
35103	35103-60021	Gage Sub-Assy, Transmission Oil Level
35104	35104-60010	Case Sub-Assy, Automatic Transmission
35104	35104-60011	Case Sub-Assy, Automatic Transmission
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90930-03094	Plug, Breather, No.1 (Atm)
35104	90445-11081	Hose (For Breather Plug)
35104	90301-06005	Ring, O (For Breather Plug)
35106	35106-60010	Pan Sub-Assy, Automatic Transmission Oil
35106	35106-60011	Pan Sub-Assy, Automatic Transmission Oil
35106	35106-60012	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-18057	Drain Plug (with Magnet)
35106	12157-10010	Gasket (For Drain Plug)
35111	35111-60020	Housing, Automatic Transmission
35111	90341-20086	Plug, W/head Straight Screw
35111	90301-06196	O Ring, Transaxle Case, No.1
35119	35119-36010	Cover, Transmission Housing
35138	35138-60010	Hanger, Transmission, No.2
35141	90341-16010	Plug, Automatic Transmission Case
35141	90201-16013	Washer, Plate (For Automatic Transmission Case)
35143	35143-36010	Cover, Transmission Case, Rear
35144	35144-36010	Gasket, Transmission Case Rear Cover
35144	35144-60010	Gasket, Transmission Case Rear Cover
35155	35182-36010	Gasket, Transmission Case Adapter
35155	35182-60010	Gasket, Transmission Case Adapter
35168	35168-36010	Gasket, Automatic Transmission Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
9011910055	90119-10055	BOLT
9015160004	90151-60004	SCREW
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9161161040	91611-61040	Bolt(For Transaxle Case & Engine Setting)
9161161040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9161161050	91611-61050	Bolt(For Transaxle & Engine Setting)
9161161050	91612-61050	Bolt(For Transaxle & Engine Setting)
9161961235	91619-61235	BOLT
9161961245	91619-61245	Bolt(For Transaxle & Engine Setting)
9161961250	91619-61250	Bolt
9161961255	91619-61255	Bolt(For Transaxle & Engine Setting)
9165140816	91651-40816	BOLT
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
33118-60010	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
33119-60010	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35013-60020	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35013-60021	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35015-60010	Adapter Sub-Assy, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35015-60011	Adapter Sub-Assy, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35015-60012	Adapter Sub-assy, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35103-60020	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35103-60021	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35104-60010	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35104-60011	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35106-60010	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35106-60011	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35106-60012	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35111-60020	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35119-36010	Cover, Transmission Housing	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35136-60010	Hanger, Transmission,no.1	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35138-60010	Hanger, Transmission, No.2	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35143-36010	Cover, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35144-36010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35144-60010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35168-36010	Gasket, Automatic Transmission Oil Pan	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35182-36010	Gasket, Transmission Case Adapter	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35182-60010	Gasket, Transmission Case Adapter	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90119-08A43	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90119-10055	BOLT	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90151-60004	SCREW	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90201-16013	Washer, Plate (For Automatic Transmission Case)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90341-16010	Plug, Automatic Transmission Case	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90341-18057	Drain Plug (with Magnet)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90341-20086	Plug, W/head Straight Screw	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90445-11081	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
90930-03094	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91611-60616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91611-61035	BOLT	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91611-61040	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91611-61050	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91611-B0616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91612-61040	Bolt(For Transmission Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91612-61050	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91619-61235	BOLT	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91619-61250	Bolt	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91619-61255	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
91651-40816	BOLT	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A440F (8708- )HJ61..4FC)
