Search › Model › HJ61
HJ61

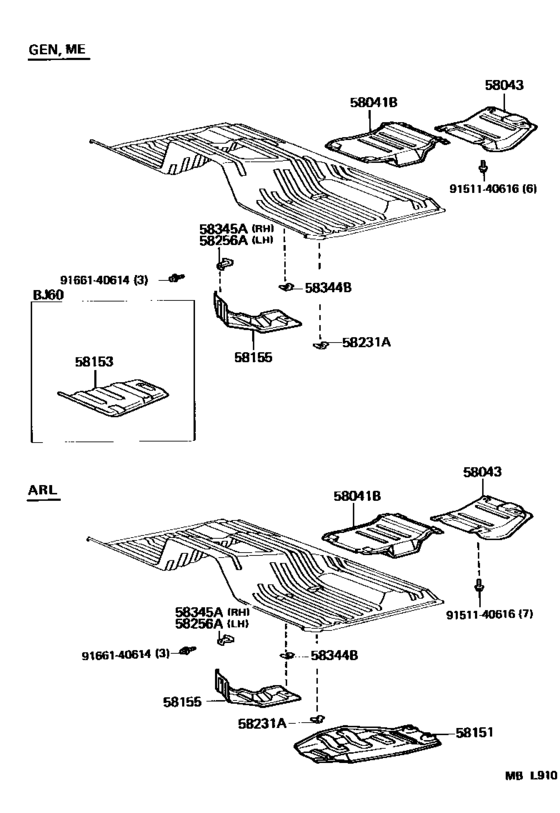

Floor Insulator ([08.1987 - ] (8708- )) 11
| # | OEM | Part name |
|---|---|---|
| 58041 | 58041-90A01 | Insulator Sub-Assy, Main Muffler Heat, Front |
| 58043 | 58043-90A00 | Insulator Sub-Assy, Main Muffler Heat, Rear |
| 58151 | 58151-90A05 | Insulator, Front Floor Heat, No.1 |
| 58155 | 58155-90A01 | Insulator, Front Floor Heat, No.3 |
| 58231 | 58231-90A00 | Bracket, Front Floor Heat Insulator, No.1 |
| 58256 | 58256-90B00 | Bracket, Front Floor Harness |
| 58344 | 58344-90A01 | Bracket, Fuel Hose Protector, Rear |
| 58345 | 58345-90A00 | Bracket, Center Floor Heat Insulator, No.1 |
| 9151140616 | 91511-40616 | New Genuine Part |
| 9166140614 | 91661-40614 | New Genuine Part |
| 9166140614 | 91661-A0614 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 58041-90A01 | Insulator Sub-Assy, Main Muffler Heat, Front | Floor Insulator ([08.1987 - ] (8708- )) |
| 58043-90A00 | Insulator Sub-Assy, Main Muffler Heat, Rear | Floor Insulator ([08.1987 - ] (8708- )) |
| 58151-90A05 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([08.1987 - ] (8708- )) |
| 58155-90A01 | Insulator, Front Floor Heat, No.3 | Floor Insulator ([08.1987 - ] (8708- )) |
| 58231-90A00 | Bracket, Front Floor Heat Insulator, No.1 | Floor Insulator ([08.1987 - ] (8708- )) |
| 58256-90B00 | Bracket, Front Floor Harness | Floor Insulator ([08.1987 - ] (8708- )) |
| 58344-90A01 | Bracket, Fuel Hose Protector, Rear | Floor Insulator ([08.1987 - ] (8708- )) |
| 58345-90A00 | Bracket, Center Floor Heat Insulator, No.1 | Floor Insulator ([08.1987 - ] (8708- )) |
| 91511-40616 | New Genuine Part | Floor Insulator ([08.1987 - ] (8708- )) |
| 91661-40614 | New Genuine Part | Floor Insulator ([08.1987 - ] (8708- )) |
| 91661-A0614 | New Genuine Part | Floor Insulator ([08.1987 - ] (8708- )) |
