Search › Model › HJ60

HJ60

Toyota LAND-CRUISER · 1980 · 4,884 parts · 200 categories

4,884 items

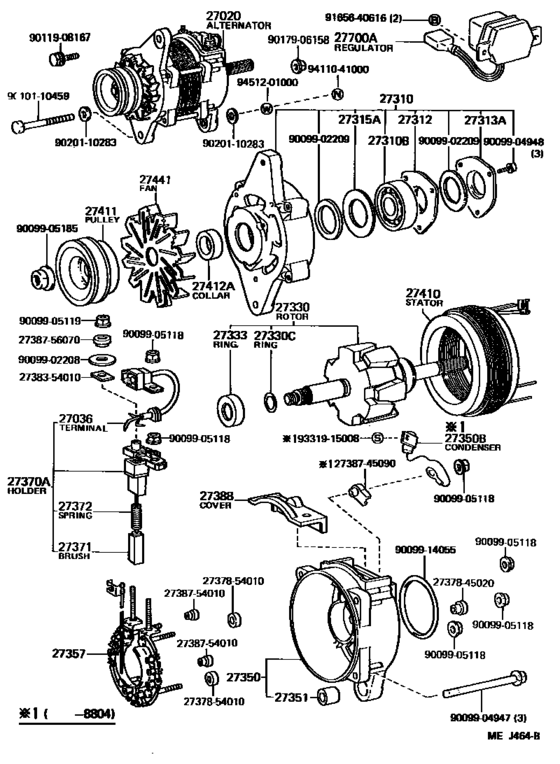

Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H) 54

#	OEM	Part name
27020	27020-68110	Alternator Assy
27020	27020-68120	Alternator Assy
27036	27036-54250	Terminal Sub-Assy, Lead Wire, Alternator
27310	27310-56160	Frame Assy, Drive End, Alternator
27310	27310-56180	Frame Assy, Drive End, Alternator
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27312	27312-57060	Plate, Bearing Retainer, Alternator
27313	27313-57060	Cover, Alternator Felt, Inner No.2
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-56140	Rotor Assy, Alternator
27330	27330-54200	Rotor Assy, Alternator
27330	27330-64010	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27333	27333-57060	Ring, Space(For Alternator Rotor)
27350	27350-68030	Frame Assy, Rectifier End
27350	27350-68040	Frame Assy, Rectifier End
27351	27351-56013	Bush(For Alternator Rectifier End Frame)
27357	27357-54190	Holder, Alternator, W/rectifier
27370	27370-54250	Holder Assy, Alternator Brush
27371	27371-56070	Brush, Alternator
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27388	27388-54250	Cover, Alternator Brush
27388	27388-54110	Cover, Alternator Brush
27410	27410-43040	Stator Assy, Alternator
27410	27410-54190	Stator Assy, Alternator
27410	27410-54340	Stator Assy, Alternator
27411	27411-68041	Pulley, Alternator
27412	27412-57060	Collar Or Nut(For Alternator Drive End Frame)
27441	27441-56090	Fan, Alternator
27700	27700-15020	Regulator Assy, Generator
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738354010	27383-54010	Washer, Alternater Terminal Insulator, No.1
2738745090	27387-45090	Insulator, Terminal
2738754010	27387-54010	Insulator, Terminal
2738756070	27387-56070	Insulator, Terminal
9009902208	90099-02208	New Genuine Part
9009902209	90099-02209	Felt(For Alternator Drive End Frame)
9009904947	90099-04947	New Genuine Part
9009904948	90099-04948	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905185	90099-05185	NUT
9009914055	90099-14055	Packing, Vacuum Pump
9010110459	90101-10459	New Genuine Part
9011908167	90119-08167	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9020110283	90201-10283	Washer, Plate(For Steering Tilt Lever)
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9331915008	93319-15008	SCREW
9411041000	94110-41000	Nut(For Steering Damper)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
27020-68110	Alternator Assy	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27020-68120	Alternator Assy	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27036-54250	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27310-56160	Frame Assy, Drive End, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27310-56180	Frame Assy, Drive End, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27313-57060	Cover, Alternator Felt, Inner No.2	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27330-54200	Rotor Assy, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27330-56140	Rotor Assy, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27330-64010	Rotor Assy, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27350-68030	Frame Assy, Rectifier End	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27350-68040	Frame Assy, Rectifier End	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27351-56013	Bush(For Alternator Rectifier End Frame)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27357-54190	Holder, Alternator, W/rectifier	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27370-54250	Holder Assy, Alternator Brush	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27371-54412	Brush, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27371-56070	Brush, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27372-56070	Spring, Alternator Brush	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27378-45020	Insulator, Alternator, No.1	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27378-54010	Insulator, Alternator, No.2	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27383-54010	Washer, Alternater Terminal Insulator, No.1	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27387-45090	Insulator, Terminal	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27387-54010	Insulator, Terminal	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27387-56070	Insulator, Terminal	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27388-54110	Cover, Alternator Brush	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27388-54250	Cover, Alternator Brush	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27410-43040	Stator Assy, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27410-54190	Stator Assy, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27410-54340	Stator Assy, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27411-68041	Pulley, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27412-57060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27441-56090	Fan, Alternator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
27700-15020	Regulator Assy, Generator	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-02208	New Genuine Part	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-04947	New Genuine Part	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-04948	New Genuine Part	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-05118	New Genuine Part	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-05119	New Genuine Part	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-05185	NUT	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90099-14055	Packing, Vacuum Pump	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90101-10459	New Genuine Part	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90119-08167	New Genuine Part	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
90201-10283	Washer, Plate(For Steering Tilt Lever)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
91651-60614	Bolt	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
91656-40616	Bolt	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
93319-15008	SCREW	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
94110-41000	Nut(For Steering Damper)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Alternator ([08.1987 - ] 12V 40A,55A (8708- )2H)
