HJ47

Toyota LAND-CRUISER · 1980 · 4,229 parts · 190 categories
HJ47 ×

← Back to categories

4,229 items

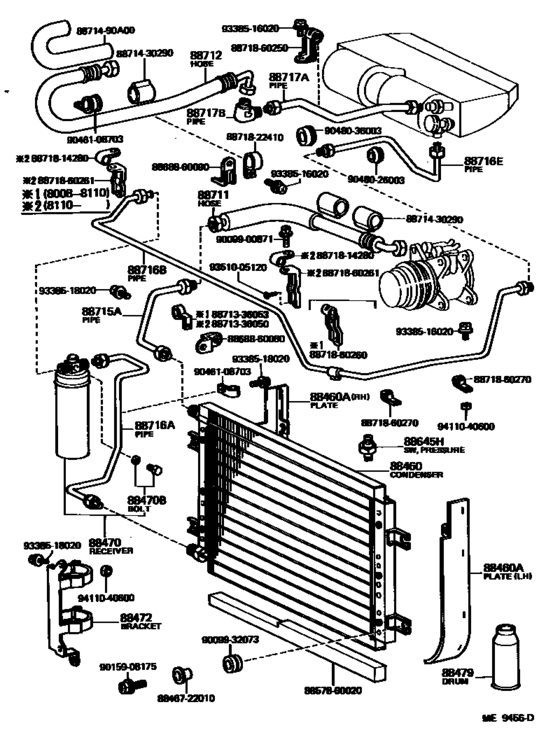

Heating & Air Conditioning - Cooler Piping ([08.1980 - ] (8008- )HJ47..RHD) 49
#OEMPart name
88460 88460-60050 Condenser Assy, Cooler
88460 88896-60030 Cover, Cooler Condenser
88460 88896-60040 Cover, Cooler Condenser
88470 88470-20070 Receiver & Dryer Assy, Cooler
88470 90099-04579 Bolt, Fuse
88470 88475-12020 Bolt, Fuse
88472 88472-60040 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88645 88645-22020 Switch, Pressure
88645 88645-30250 Switch, Pressure
88711 88711-60080 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-60120 Hose, Cooler Refrigerant Suction, No.1
88715 88715-60020 Pipe, Cooler Refrigerant Discharge, A
88716 88716-60110 Pipe, Cooler Refrigerant Liquid, A
88716 88710-60090 Pipe, Cooler Refrigerant Liquid, B
88716 88716-60271 Pipe, Cooler Refrigerant Liquid, B
88716 88716-60230 Pipe, Cooler Refrigerant Liquid, E
88716 88716-60280 Pipe, Cooler Refrigerant Liquid, E
88717 88717-60080 Pipe, Cooler Refrigerant Suction, A
88717 88899-60030 Pipe, Cooler Refrigerant Suction, B
88717 90099-80002 Pipe, Cooler Refrigerant Suction, B
8871490 88714-90A00 Insulator, Cooler Refrigerant Hose, No.4
8871490 87173-36040 Insulator, Cooler Refrigerant Hose, No.4
8846722010 88467-22010 Insulator, Cooler Condenser Mounting
8857860020 88578-60020 Paking, Cooler Air Duct
8868860080 88688-60080 Bracket Sub-Assy, Horn
8868860090 88688-60090 Bracket, Cooler Diaphragm
8871336050 88713-36050 Hose, Cooler Refrigerant Suction, No.2
8871336053 88713-36053 Hose, Cooler Refrigerant Suction, No.2
8871430290 88714-30290 Insulator, Cooler Refrigerant Hose, No.1
8871814280 88718-14280 Pipe, Cooler Refrigerant Suction, No.2
8871822410 88718-22410 Pipe, Cooler Refrigerant Suction, No.2
8871860250 88718-60250 Pipe, Cooler Refrigerant Suction, No.2
8871860260 88718-60260 Pipe, Cooler Refrigerant Suction, No.2
8871860261 88718-60261 Pipe, Cooler Refrigerant Suction, No.2
8871860270 88718-60270 Pipe, Cooler Refrigerant Suction, No.2
9009900871 90099-00871 New Genuine Part
9009932073 90099-32073 Grommet
9015908175 90159-08175 New Genuine Part
9046108703 90461-08703 New Genuine Part
9048026003 90480-26003 Grommet (For Cooler Unit)
9048036003 90480-36003 Grommet (For Cooler Unit)
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9338518020 93385-18020 New Genuine Part
9351005120 93510-05120 New Genuine Part
9411040600 94110-40600 Nut, Rock
