HJ47

Toyota LAND-CRUISER · 1980 · 4,229 parts · 190 categories
HJ47 ×

← Back to categories

4,229 items

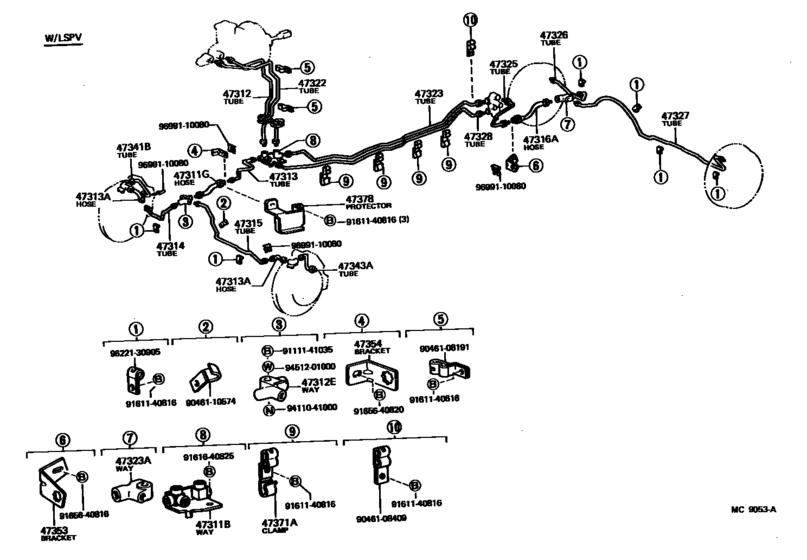

Brake Tube & Clamp ([01.1983 - 06.1985] (8210-8410)FJ45,HJ47..ARL ; (8301-8506)FJ45,HJ47 ..RHD..GEN) 52
#OEMPart name
47311 90414-10009 Way, No.1(For Front Brake Tube)
47311 90415-10003 Way, No.1(For Front Brake Tube)
47311 96940-32605 Hose, Flexible(For Brake Tube)
47312 47312-60380 Tube, Front Brake, No.2
47312 47312-60430 Tube, Front Brake, No.2
47312 90413-10042 Union(For Front Brake Tube)
47313 47329-60070 Tube, Front Brake, No.3 - REAR BRAKE, NO.9
47313 96910-32305 Hose, Flexible, No.1(For Front)
47314 47315-60280 Tube, Front Brake, No.4
47315 47316-60160 Tube, Front Brake, No.5
47316 96940-34305 Hose, Flexible(For Brake Tube)
47322 47322-60240 Tube, Rear Brake, No.2
47322 47322-60330 Tube, Rear Brake, No.2
47323 47323-60070 Tube, Rear Brake, No.3
47323 47323-60071 Tube, Rear Brake, No.3
47323 47323-60081 Tube, Rear Brake, No.3
47323 90413-10086 Way(For Rear Brake Tube)
47325 47325-60050 Tube, Rear Brake, No.5
47326 47325-60020 Tube, Rear Brake, No.6
47327 47326-60020 Tube, Rear Brake, No.7
47328 47326-60050 Tube, Rear Brake, No.8
47341 47341-60020 Tube, Wheel Cylinder, Front Rh No.1
47341 47341-60021 Tube, Wheel Cylinder, Front Rh No.1
47341 47341-60030 Tube, Wheel Cylinder, Front Rh No.1
47341 47341-60031 Tube, Wheel Cylinder, Front Rh No.1
47343 47343-60010 Tube, Wheel Cylinder, Front Lh No.1
47343 47343-60011 Tube, Wheel Cylinder, Front Lh No.1
47343 47343-60020 Tube, Wheel Cylinder, Front Lh No.1
47343 47343-60021 Tube, Wheel Cylinder, Front Lh No.1
47353 47355-60010 Bracket, Flexible Hose(For Rear)
47354 47354-60020 Bracket, Front Flexible Hose
47371 47371-60010 Clamp, Brake Tube, No.1
47378 47378-60010 Protector, Brake Tube
9046108191 90461-08191 Clamp (For Front Drive Vacuum Tube)
9046108409 90461-08409 New Genuine Part
9046110574 90461-10574 New Genuine Part
9111141035 91111-41035 Bolt(For Clutch Pedal Stopper)
9161140616 91611-40616 Bolt, Hexagon(For Steering Column Bracket)
9161140616 91611-B0616 Bolt(For Transaxle Case Receiver)
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9161640825 91616-40825 Bolt(For Clutch Master Cylinder Setting)
9161640825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9165640816 91656-40816 New Genuine Part
9165640816 91651-B0814 Bolt with washer
9165640816 90119-A0109 New Genuine Part
9165640820 91656-40820 BOLT
9165640820 91651-60816 BOLT
9411041000 94110-41000 Nut(For Steering Damper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9622130905 96221-30905 CLAMP
9699110080 96991-10080 CLIP
