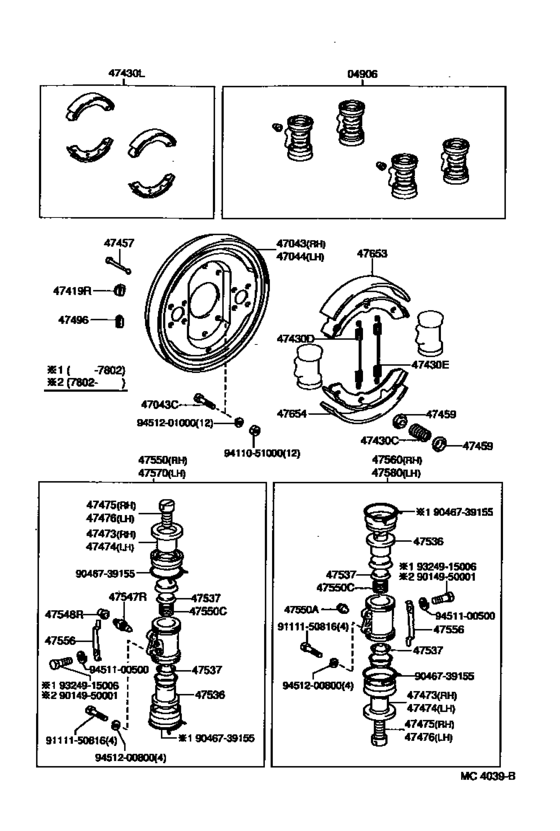

Rear Drum Brake Wheel Cylinder & Backing Plate ([09.1975 - 07.1980] (7509-8007)FJ45,HJ45) 49
#OEMPart name
4906 04906-36040 Cup Kit, Rear Wheel Cylinder
47043 47043-60040 Plate Sub-Assy, Brake Backing, Rear Rh
47043 42184-35010 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 42184-35011 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 90101-10061 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 47043-60030 Plate Sub-Assy, Brake Backing, Rear Rh
47419 47419-35011 Plug, Hole(For Front Brake)
47430 90501-23002 Spring(For Front Brake Shoe Hold Down)
47430 90506-26372 Spring, Tension(For Front Brake Shoe Return) - TENSION(FOR REAR BRAKE SHOE RETURN)
47430 04494-60020 Shoe Kit, Front Brake
47430 04494-60021 Shoe Kit, Front Brake
47457 47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)
47457 47447-35020 Pin, Shoe Hold Down Spring
47459 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47473 47551-36071 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47474 47552-36071 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47475 47553-36021 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47475 47553-60030 Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47476 47554-36021 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47476 47554-60030 Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47496 47491-36010 Plug, Hole(For Front Brake)
47496 47491-36020 Plug, Hole(For Rear Brake)
47536 47531-35030 Piston, Wheel Brake Cylinder(For Front Brake)
47536 47531-35090 Piston, Wheel Brake Cylinder(For Rear Brake) - WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)
47537 47533-30011 Seat, Wheel Cylinder Piston Spring(For Front Brake)
47537 47533-60011 Seat, Wheel Cylinder Piston Spring(For Rear Brake)
47550 47550-29215 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-25011 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-69095 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90501-08122 Spring, Compression(For Front Wheel Brake Cylinder)
47556 47555-36020 Spring, Adjuster Lock(For Front Brake)
47560 47560-29075 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-25011 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560 47560-69075 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570 47570-29075 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-25011 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570 47570-69085 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580 47580-29075 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-25011 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580 47580-69075 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47653 47651-60020 Lining, Front Brake Shoe(For Front Or Upper) - REAR BRAKE SHOE(FOR FRONT OR UPPER)
9014950001 90149-50001 New Genuine Part
9046739155 90467-39155 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9111150816 91111-50816 Bolt
9324915006 93249-15006 SCREW
9411051000 94110-51000 Nut(For Steering Center Arm)
9451100500 94511-00500 Washer, Cover Set, No.2
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
