HJ45

Toyota LAND-CRUISER · 1972 · 3,524 parts · 156 categories
HJ45 ×

← Back to categories

3,524 items

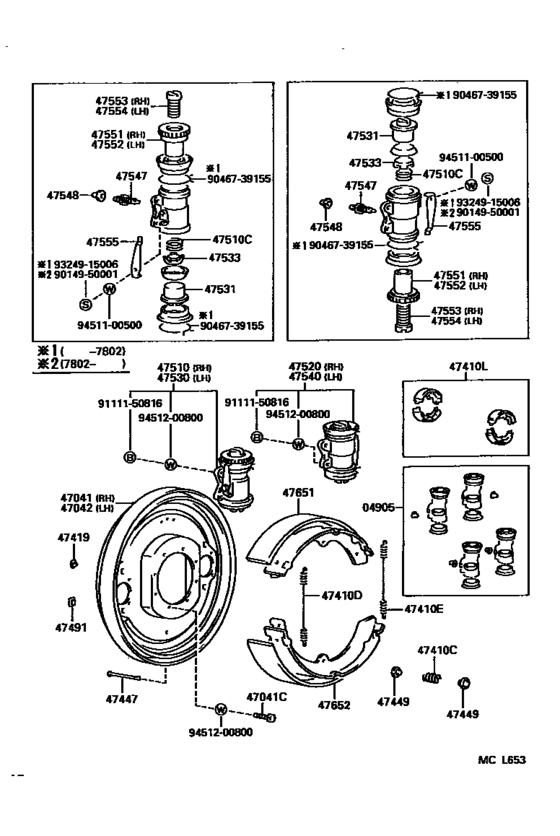

Front Drum Brake Wheel Cylinder & Backing Plate ([09.1975 - 07.1980] (7509-8007)) 36
#OEMPart name
4905 04905-36030 Cup Kit, Front Wheel Cylinder
47041 47041-60040 Plate Sub-Assy, Brake Backing, Front Rh
47041 47041-60050 Plate Sub-Assy, Brake Backing, Front Rh
47041 91651-60614 Bolt
47041 90101-10439 Bolt (For Front Lower Ball Joint)
47410 90501-23002 Spring(For Front Brake Shoe Hold Down)
47410 90506-26372 Spring, Tension(For Front Brake Shoe Return) - TENSION(FOR REAR BRAKE SHOE RETURN)
47410 04494-60020 Shoe Kit, Front Brake
47410 04494-60021 Shoe Kit, Front Brake
47419 47419-35011 Plug, Hole(For Front Brake)
47447 47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47491 47491-36010 Plug, Hole(For Front Brake)
47491 47491-36020 Plug, Hole(For Rear Brake)
47510 47510-39126 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510 47510-69055 Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) - FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47510 90501-10759 Spring, Compression(For Front Wheel Brake Cylinder)
47530 47530-39126 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530 47530-69045 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) - FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47531 47531-60010 Piston, Wheel Brake Cylinder(For Front Brake) - WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47533 47533-25010 Seat, Wheel Cylinder Piston Spring(For Front Brake)
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47548 31478-30010 Bleeder Plug Cap
47551 47551-36041 Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47552 47552-36041 Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47553 47553-36021 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47554 47553-60030 Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47554 47554-36021 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47555 47555-36020 Spring, Adjuster Lock(For Front Brake)
47651 47651-60020 Lining, Front Brake Shoe(For Front Or Upper) - REAR BRAKE SHOE(FOR FRONT OR UPPER)
9014950001 90149-50001 New Genuine Part
9046739155 90467-39155 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9111150816 91111-50816 Bolt
9324915006 93249-15006 SCREW
9451100500 94511-00500 Washer, Cover Set, No.2
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
