HE22S

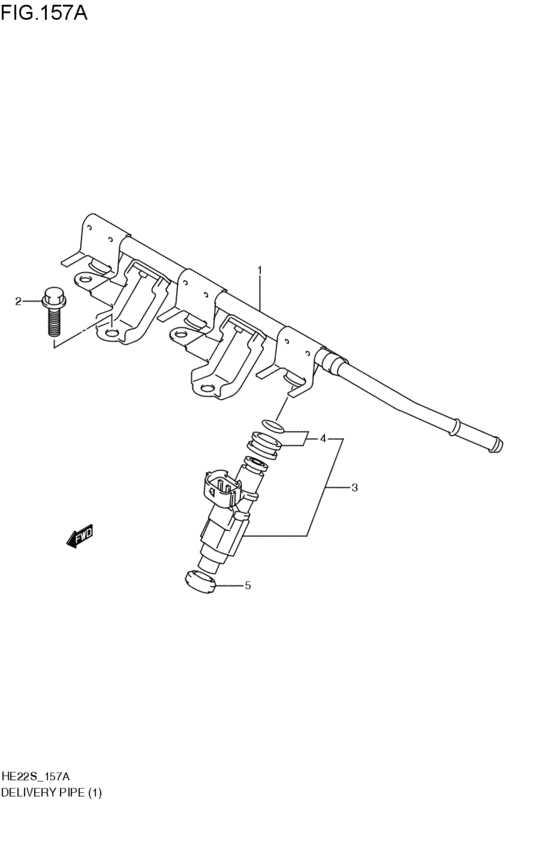

delivery pipe / fuel injector (4V; 2008-09-01~) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 15730-85K00-000 | パイプ,デリバリ |
| 2 | 01550-0616A-000 | Bolt |
| 3 | 15710-85K00-000 | INJECTOR ASSY,FUEL |
| 4 | 15716-65DT0-000 | GROMMET SET,FUEL INJECTOR |
| 5 | 09320-08062-000 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 01550-0616A-000 | Bolt | delivery pipe / fuel injector (4V; 2008-09-01~) |
| 09320-08062-000 | CUSHION | delivery pipe / fuel injector (4V; 2008-09-01~) |
| 15710-85K00-000 | INJECTOR ASSY,FUEL | delivery pipe / fuel injector (4V; 2008-09-01~) |
| 15716-65DT0-000 | GROMMET SET,FUEL INJECTOR | delivery pipe / fuel injector (4V; 2008-09-01~) |
| 15730-85K00-000 | パイプ,デリバリ | delivery pipe / fuel injector (4V; 2008-09-01~) |
