Search › Model › HDJ78
HDJ78

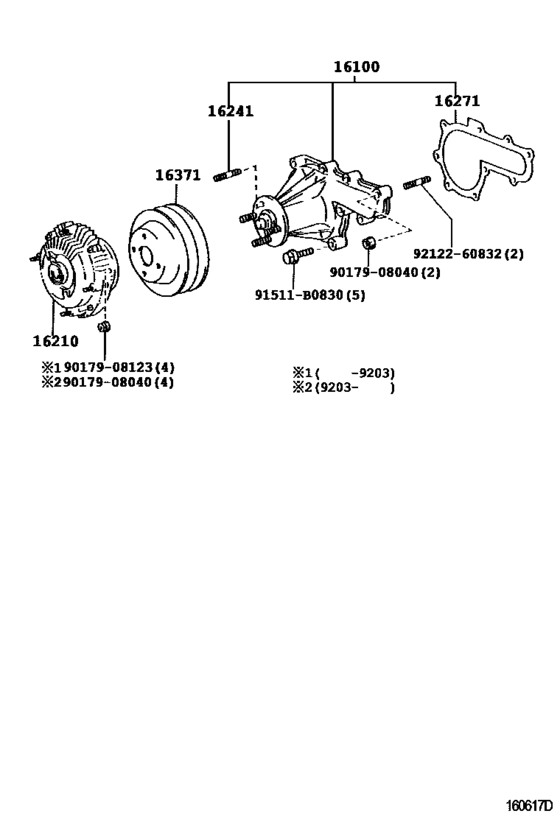

Water Pump ([01.1990 - ] (9001- )1H#) 9
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-19235 | Pump Assy, Engine Water |
| 16210 | 16210-17070 | Coupling Assy, Fluid |
| 16241 | 90116-08112 | Bolt, Stud(For Water Pump Coupling) |
| 16271 | 16271-17010 | Gasket, Water Pump |
| 16371 | 16371-17010 | Pulley, Fan |
| 91511 | 91511-B0830 | Bolt Or Ring, Exhaust Pipe Front (For Front) |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) |
| 9017908123 | 90179-08123 | Nut (For Front Wiper Arm Setting) |
| 9212260832 | 92122-60832 | Bolt, Stud(For Oil Strainer) |
| OEM | Part name | Category |
|---|---|---|
| 16100-19235 | Pump Assy, Engine Water | Water Pump ([01.1990 - ] (9001- )1H#) |
| 16210-17070 | Coupling Assy, Fluid | Water Pump ([01.1990 - ] (9001- )1H#) |
| 16271-17010 | Gasket, Water Pump | Water Pump ([01.1990 - ] (9001- )1H#) |
| 16371-17010 | Pulley, Fan | Water Pump ([01.1990 - ] (9001- )1H#) |
| 90116-08112 | Bolt, Stud(For Water Pump Coupling) | Water Pump ([01.1990 - ] (9001- )1H#) |
| 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Water Pump ([01.1990 - ] (9001- )1H#) |
| 90179-08123 | Nut (For Front Wiper Arm Setting) | Water Pump ([01.1990 - ] (9001- )1H#) |
| 91511-B0830 | Bolt Or Ring, Exhaust Pipe Front (For Front) | Water Pump ([01.1990 - ] (9001- )1H#) |
| 92122-60832 | Bolt, Stud(For Oil Strainer) | Water Pump ([01.1990 - ] (9001- )1H#) |
