Search › Model › HDJ78

HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories

4,852 items

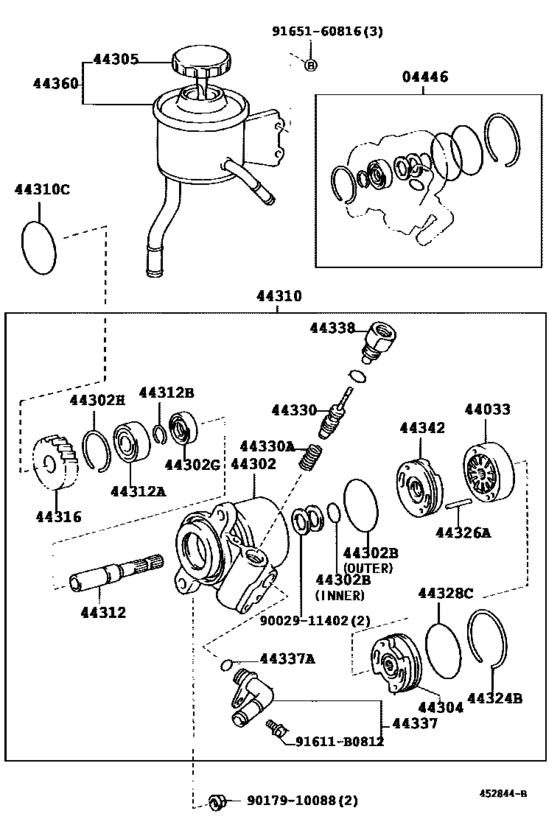

Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#) 33

#	OEM	Part name
4446	04446-37040	Gasket Kit, Power Steering Pump
4446	04446-60100	Gasket Kit, Power Steering Pump
44033	44033-60010	Rotor Sub-Assy, W/cam & Vane
44033	44033-EV010	Rotor Sub-Assy, W/cam & Vane
44302	90029-20056	Ring, O, No.1(For Vane Pump Housing)
44302	90029-20057	Ring, O, No.1(For Vane Pump Housing)
44302	90029-21018	Seal, Oil, No.2(For Vane Pump Housing)
44302	90029-52011	Ring, Snap, No.1(For Vane Pump Housing)
44304	44304-60040	Housing Sub-Assy, Vane Pump, Rear
44305	44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	44310-60370	Pump Assy, Vane
44310	90301-60002	Ring, O(For Vane Pump)
44312	44312-60030	Shaft, Vane Pump
44312	90029-36003	Bearing(For Vane Pump Shaft)
44312	90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)
44316	44316-60040	Gear, Vane Pump
44326	90029-14205	Pin, Straight(For Vane Pump Cam Ring)
44328	90029-20058	Ring, O(For Pump Housing End)
44330	40410-37090	Valve Assy, Flow Control
44330	40420-37090	Valve Assy, Flow Control
44330	40430-37090	Valve Assy, Flow Control
44330	44330-37090	Valve Assy, Flow Control
44330	90029-60013	Spring, Compression(For Flow Control Valve)
44337	44337-60100	Union, Power Steering Suction Port
44337	96711-19016	Ring, O (For 5Th Shift Arm Shaft)
44338	44338-60140	Union, Pressure Port
44360	44360-60250	Reservoir Assy, Vane Pump Oil
91611	91611-B0812	Bolt
9002911402	90029-11402	New Genuine Part
9017910088	90179-10088	Nut
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt

OEM	Part name	Category
04446-37040	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
04446-60100	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
40410-37090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
40420-37090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
40430-37090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44033-60010	Rotor Sub-Assy, W/cam & Vane	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44033-EV010	Rotor Sub-Assy, W/cam & Vane	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44304-60040	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44310-60370	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44312-60030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44316-60040	Gear, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44330-37090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44337-60100	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44338-60140	Union, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
44360-60250	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-11402	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-14205	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-20056	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-20057	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-20058	Ring, O(For Pump Housing End)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-21018	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-36003	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-52011	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90029-60013	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90080-11396	Bolt	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90179-10088	Nut	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
90301-60002	Ring, O(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
91611-B0812	Bolt	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
91651-60816	BOLT	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
96711-19016	Ring, O (For 5Th Shift Arm Shaft)	Vane Pump & Reservoir (Power Steering) ([08.2001 - 01.2007] (0108-0701)HDJ7#)
