Search › Model › HDJ78

HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories

4,852 items

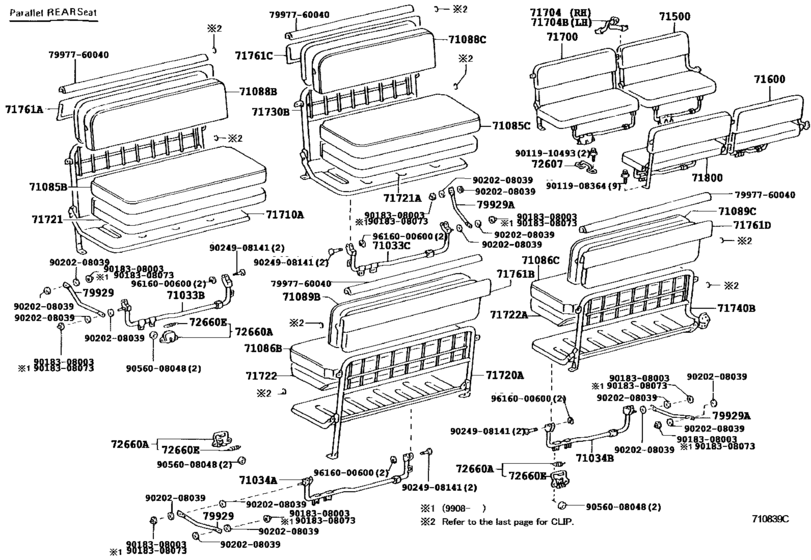

Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN) 66

#	OEM	Part name
71033	71033-60240	Leg Sub-Assy, Rear Side Seat Cushion, No.1 Rh
71033	71033-60220	Leg Sub-Assy, Rear Side Seat Cushion, No.2 Rh
71034	71033-60230	Leg Sub-Assy, Rear Side Seat Cushion, No.1 Lh
71034	71033-60250	Leg Sub-Assy, Rear Side Seat Cushion, No.2 Lh
71085	71091-60061-B1	Cover Sub-Assy, Rear Side Seat Cushion, Rh
71085	71091-60062-B1	Cover Sub-Assy, Rear Side Seat Cushion, Rh
71085	71091-60061-E2	Cover Sub-Assy, Rear Side Seat Cushion, Rh
71085	71091-60062-E2	Cover Sub-Assy, Rear Side Seat Cushion, Rh
71085	71085-60241-B1	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh
71085	71085-60242-B1	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh
71085	71085-60241-E2	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh
71085	71085-60242-E2	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh
71085	71085-60241-E3	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh
71086	71092-60061-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71086	71092-60062-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71086	71092-60061-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71086	71092-60062-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71086	71086-60221-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71086	71086-60222-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71086	71086-60221-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71086	71086-60222-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh
71088	71077-60691-B0	Cover Sub-Assy, Rear Side Seat Back, Rh
71088	71077-60691-E2	Cover Sub-Assy, Rear Side Seat Back, Rh
71088	71088-60271-B1	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh
71088	71088-60271-B2	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh
71088	71088-60271-E3	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh
71088	71088-60271-E4	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh
71089	71078-60241-B1	Cover Sub-Assy, Rear Side Seat Back, Lh
71089	71078-60241-E3	Cover Sub-Assy, Rear Side Seat Back, Lh
71089	71089-60182-B2	Cover Sub-Assy, Rear Side Seat Back, No.2 Lh
71089	71089-60182-E2	Cover Sub-Assy, Rear Side Seat Back, No.2 Lh
71500	71500-60011-B1	Seat Assy, Rear Side, No.2 Rh
71500	71500-60011-E2	Seat Assy, Rear Side, No.2 Rh
71600	71600-60011-B1	Seat Assy, Rear Side, No.2 Lh
71600	71600-60011-E2	Seat Assy, Rear Side, No.2 Lh
71700	71700-60431-B1	Seat Assy, Rear Side, Rh
71700	71700-60431-E2	Seat Assy, Rear Side, Rh
71704	71704-90K08-B0	Band Sub-Assy, Rear Side Seat
71704	71704-90K08-E0	Band Sub-Assy, Rear Side Seat
71710	71710-60040	Frame Assy, Rear Side Seat, Rh
71720	71720-60040	Frame Assy, Rear Side Seat, Lh
71721	71721-90K02	Pad, Rear Side Seat Cushion, Rh
71730	71730-60020	Frame Assy, Rear Side Seat, No.2 Rh
71740	71740-60020	Frame Assy, Rear Side Seat, No.2 Lh
71761	71761-90K03	Pad, Rear Side Seat Back, Rh
71761	71761-90K02	Pad, Rear Side Seat Back, Rh
71800	71800-60371-B1	Seat Assy, Rear Side, Lh
71800	71800-60371-E2	Seat Assy, Rear Side, Lh
72607	72607-90K00	Striker Sub-Assy, Rear Seat Cushion Lock
72607	72607-90K01	Striker Sub-Assy, Rear Seat Cushion Lock
72660	72660-90K00	Support Assy, Rear Seat Cushion
72660	72660-90K04	Support Assy, Rear Seat Cushion
79929	79929-60040	Frame, Fold Seat Leg Stopper
79929	79929-60050	Frame, Fold Seat Leg Stopper
79929	79929-90K00	Frame, Fold Seat Leg Stopper
79929	79929-60060	Frame, Fold Seat Leg Stopper
7997760040	79977-60040	Felt, Seat Back
9011908364	90119-08364	Bolt
9011910493	90119-10493	BOLT W-WASHER
9018308003	90183-08003	NUT
9018308073	90183-08073	Retainer, Spring (For Accelerator Link Rod)
9020208039	90202-08039	WASHER
9024908141	90249-08141	Pin, Rear Seat Cushion Leg, Rear
9024908141	71434-95701	Pin, Rear Seat Cushion Leg, Rear
9056008048	90560-08048	New Genuine Part
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
71033-60220	Leg Sub-Assy, Rear Side Seat Cushion, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71033-60230	Leg Sub-Assy, Rear Side Seat Cushion, No.1 Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71033-60240	Leg Sub-Assy, Rear Side Seat Cushion, No.1 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71033-60250	Leg Sub-Assy, Rear Side Seat Cushion, No.2 Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71077-60691-B0	Cover Sub-Assy, Rear Side Seat Back, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71077-60691-E2	Cover Sub-Assy, Rear Side Seat Back, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71078-60241-B1	Cover Sub-Assy, Rear Side Seat Back, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71078-60241-E3	Cover Sub-Assy, Rear Side Seat Back, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71085-60241-B1	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71085-60241-E2	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71085-60241-E3	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71085-60242-B1	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71085-60242-E2	Cover Sub-Assy, Rear Side Seat Cushion, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71086-60221-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71086-60221-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71086-60222-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71086-60222-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71088-60271-B1	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71088-60271-B2	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71088-60271-E3	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71088-60271-E4	Cover Sub-Assy, Rear Side Seat Back, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71089-60182-B2	Cover Sub-Assy, Rear Side Seat Back, No.2 Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71089-60182-E2	Cover Sub-Assy, Rear Side Seat Back, No.2 Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71091-60061-B1	Cover Sub-Assy, Rear Side Seat Cushion, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71091-60061-E2	Cover Sub-Assy, Rear Side Seat Cushion, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71091-60062-B1	Cover Sub-Assy, Rear Side Seat Cushion, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71091-60062-E2	Cover Sub-Assy, Rear Side Seat Cushion, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71092-60061-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71092-60061-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71092-60062-B1	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71092-60062-E2	Cover Sub-Assy, Rear Side Seat Cushion, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71434-95701	Pin, Rear Seat Cushion Leg, Rear	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71500-60011-B1	Seat Assy, Rear Side, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71500-60011-E2	Seat Assy, Rear Side, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71600-60011-B1	Seat Assy, Rear Side, No.2 Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71600-60011-E2	Seat Assy, Rear Side, No.2 Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71700-60431-B1	Seat Assy, Rear Side, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71700-60431-E2	Seat Assy, Rear Side, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71704-90K08-B0	Band Sub-Assy, Rear Side Seat	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71704-90K08-E0	Band Sub-Assy, Rear Side Seat	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71710-60040	Frame Assy, Rear Side Seat, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71720-60040	Frame Assy, Rear Side Seat, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71721-90K02	Pad, Rear Side Seat Cushion, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71730-60020	Frame Assy, Rear Side Seat, No.2 Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71740-60020	Frame Assy, Rear Side Seat, No.2 Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71761-90K02	Pad, Rear Side Seat Back, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71761-90K03	Pad, Rear Side Seat Back, Rh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71800-60371-B1	Seat Assy, Rear Side, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
71800-60371-E2	Seat Assy, Rear Side, Lh	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
72607-90K00	Striker Sub-Assy, Rear Seat Cushion Lock	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
72607-90K01	Striker Sub-Assy, Rear Seat Cushion Lock	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
72660-90K00	Support Assy, Rear Seat Cushion	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
72660-90K04	Support Assy, Rear Seat Cushion	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
79929-60040	Frame, Fold Seat Leg Stopper	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
79929-60050	Frame, Fold Seat Leg Stopper	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
79929-60060	Frame, Fold Seat Leg Stopper	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
79929-90K00	Frame, Fold Seat Leg Stopper	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
79977-60040	Felt, Seat Back	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
90119-08364	Bolt	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
90119-10493	BOLT W-WASHER	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
90183-08003	NUT	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
90183-08073	Retainer, Spring (For Accelerator Link Rod)	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
90202-08039	WASHER	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
90249-08141	Pin, Rear Seat Cushion Leg, Rear	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
90560-08048	New Genuine Part	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Seat & Seat Track ([01.1990 - 01.2007] (9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..H T..ARL,GEN)
