HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories

← Back to categories

4,852 items

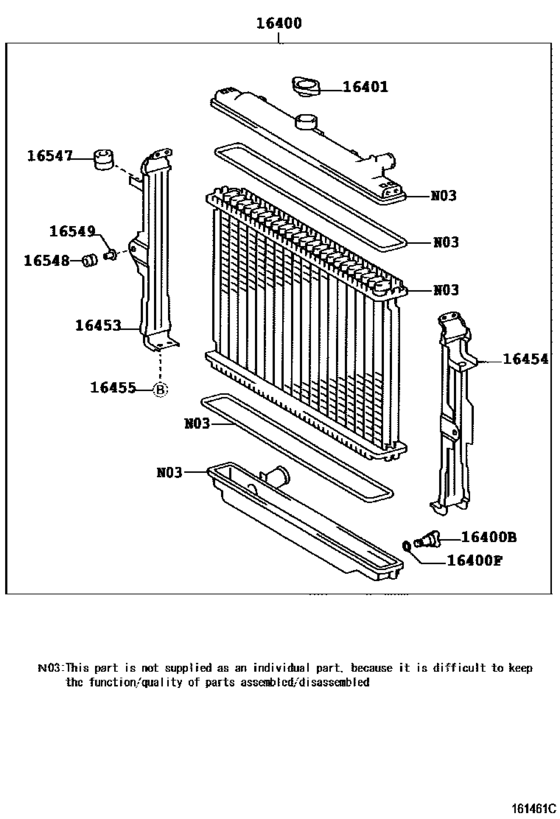

Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#) 10

#	OEM	Part name
16400	16400-17360	Radiator Assy
16400	16417-15210	Plug, Radiator Drain Cock
16400	16418-15520	Packing(For Radiator Drain Cock)
16401	16401-67150	Cap Sub-Assy(For Water Outlet)
16453	16453-17360	Plate, Radiator Side
16454	16454-17360	Plate, Radiator Side
16455	16455-67020	Bolt, Radiator Side Support Plate
16547	16547-68070	Bush, Radiator Support, No.1
16548	16548-68070	Bush, Radiator Support, No.2
16549	16549-68070	Collar, Radiator Support, No.2

OEM	Part name	Category
16400-17360	Radiator Assy	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16401-67150	Cap Sub-Assy(For Water Outlet)	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16417-15210	Plug, Radiator Drain Cock	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16453-17360	Plate, Radiator Side	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16454-17360	Plate, Radiator Side	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16455-67020	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16547-68070	Bush, Radiator Support, No.1	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16548-68070	Bush, Radiator Support, No.2	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)
16549-68070	Collar, Radiator Support, No.2	Radiator & Water Outlet ([08.1996 - 01.2007] (9608-0701)1H#)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 209
Collected: 2026-08-02
