HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories
HDJ78 ×

← Back to categories

4,852 items

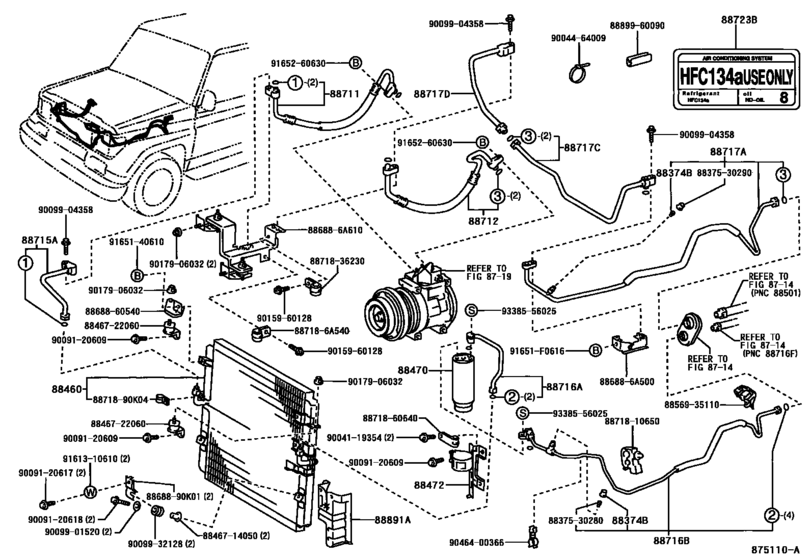

Heating & Air Conditioning - Cooler Piping ([08.2001 - ] DEALER OPTION (0108- )HDJ7#) 47
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88460 88460-60180 Condenser Assy, Cooler
88470 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-60090 Bracket, Receiver Tank, No.1
88711 88711-60610 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-6A170 Hose, Cooler Refrigerant Suction, No.1
88715 88715-60091 Pipe, Cooler Refrigerant Discharge, A
88716 88716-6A290 Pipe, Cooler Refrigerant Liquid, A
88716 88716-6B330 Pipe, Cooler Refrigerant Liquid, B
88717 88717-6A470 Pipe, Cooler Refrigerant Suction, A
88717 88717-60591 Pipe, Cooler Refrigerant Suction, C
88717 88717-60641 Pipe, Cooler Refrigerant Suction, D
88723 88723-20040 Label, Cooler Service Caution
88891 53292-60010 Seal, Radiator Support To Frame, Lh
91651 91651-F0616 BOLT
886886 88688-6A500 Bracket, Cooler Diaphragm
886886 88688-6A610 Bracket, Cooler Diaphragm
887186 88718-6A540 Pipe, Cooler Refrigerant Suction, No.2
8868890 88688-90K01 Bracket, Cooler Condenser, No.2
8871890 88718-90K04 Pipe, Cooler Refrigerant Suction, No.2
8837530280 88375-30280 Cap, Service Valve (For Cooler Pipe)
8837530290 88375-30290 Cap, Service Valve (For Cooler Pipe)
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846722060 88467-22060 Cushion, Cooler Condenser, No.1
8856935110 88569-35110 Clamp (for Cooler Relay)
8868860540 88688-60540 Bracket, Cooler Diaphragm
8871810650 88718-10650 Pipe, Cooler Refrigerant Suction, No.2
8871836230 88718-36230 Pipe, Cooler Refrigerant Suction, No.2
8871860640 88718-60640 Pipe, Cooler Refrigerant Suction, No.2
8889960090 88899-60090 Cover, Evaporator
9004119354 90041-19354 BOLT
9004464009 90044-64009 CLAMP
9009120609 90091-20609 BOLT
9009120617 90091-20617 New Genuine Part
9009120618 90091-20618 New Genuine Part
9009901520 90099-01520 New Genuine Part
9009904358 90099-04358 New Genuine Part
9009932128 90099-32128 Grommet
9015960128 90159-60128 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9046400366 90464-00366 Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
9161310610 91613-10610 New Genuine Part
9161310610 90093-00604 New Genuine Part
9165140610 91651-40610 RIVET
9165260630 91652-60630 New Genuine Part
9338556025 93385-56025 New Genuine Part
