Search › Model › HDJ78

HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories

4,852 items

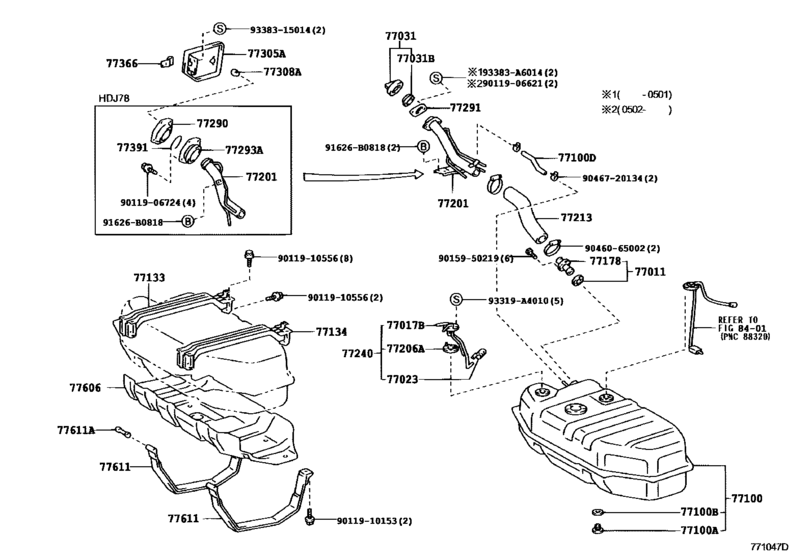

Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#) 56

#	OEM	Part name
77011	77011-60120	Pipe Sub-Assy, Fuel Tank Filler, Lower
77011	77011-60180	Pipe Sub-Assy, Fuel Tank Filler, Lower
77017	77017-60440	Tube Sub-Assy, Fuel Tank Vent
77017	77017-60450	Tube Sub-Assy, Fuel Tank Vent
77023	77023-60010	Filter Sub-Assy, Fuel Suction Tube
77031	77310-12150	Cap Assy, Fuel Tank
77031	77316-16010	Gasket (For Fuel Tank Cap)
77100	77001-60550	Tank Assy, Fuel
77100	77001-60552	Tank Assy, Fuel
77100	77001-60551	Tank Assy, Fuel
77100	77001-60570	Tank Assy, Fuel
77100	77001-60781	Tank Assy, Fuel
77100	77001-60740	Tank Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	90445-22024	Hose, Fuel, No.1(For Fuel Tank)
77100	95311-13015	Hose, Fuel, No.1(For Fuel Tank)
77133	77133-60100	Support, Fuel Sub-Tank, Rh
77133	77133-60101	Support, Fuel Sub-Tank, Rh
77178	77178-20010	Gasket, Fuel Tank Filler Pipe, Lower
77201	77201-60370	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-60650	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-60670	Pipe Sub-Assy, Fuel Tank Inlet
77206	77169-14020	Gasket, Fuel Tank Vent
77213	77213-60180	Hose, Fuel Tank Sub Inlet
77213	77213-60190	Hose, Fuel Tank Sub Inlet
77240	77240-60490	Tube Assy, Fuel Suction
77240	77240-60500	Tube Assy, Fuel Suction
77290	77290-60030	Shield Assy, Fuel Tank Filler Pipe
77291	77293-60030	Shield, Fuel Tank, Inlet, No.1
77293	77293-90K00	Shield, Fuel Tank Filler Pipe, No.3
77305	77305-90K00	Lid Sub-Assy, Fuel Filler Opening
77305	77305-90K01	Lid Sub-Assy, Fuel Filler Opening
77308	90541-05018	Cushion(For Fuel Inlet Box Cover)
77366	77366-12010	Spring, Fuel Filler Opening Lid Hinge
77391	77391-32010	Ring, Fuel Inlet Box
77606	77606-60030	Protector Sub-Assy, Fuel Tank, No.1
77606	77606-60130	Protector Sub-Assy, Fuel Tank, No.1
77611	77601-60230	Band, Fuel Tank
77611	77601-60260	Band, Fuel Tank
77611	77601-60261	Band, Fuel Tank
77611	77602-60100	Band, Fuel Tank
77611	90240-10011	Pin (For Fuel Tank Band)
77611	90249-14002	Pin (For Fuel Tank Band)
91626	91626-B0818	New Genuine Part
93319	93319-A4010	SCREW WWASHER
93383	93383-A6014	New Genuine Part
9011906621	90119-06621	Bolt
9011906724	90119-06724	BOLT WWASHER
9011910153	90119-10153	BOLT
9011910556	90119-10556	Bolt(For Spare Wheel Carrier Lock)
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9046065002	90460-65002	Clamp Or Clip(For Air Hose, No.1)
9046720134	90467-20134	Clip(For Ventilation Hose No.2)
9338315014	93383-15014	Screw(For Steering Tilt Lever)

OEM	Part name	Category
77001-60550	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77001-60551	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77001-60552	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77001-60570	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77001-60740	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77001-60781	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77011-60120	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77011-60180	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77017-60440	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77017-60450	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77023-60010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77133-60100	Support, Fuel Sub-Tank, Rh	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77133-60101	Support, Fuel Sub-Tank, Rh	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77178-20010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77201-60370	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77201-60650	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77201-60670	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77213-60180	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77213-60190	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77240-60490	Tube Assy, Fuel Suction	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77240-60500	Tube Assy, Fuel Suction	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77290-60030	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77293-60030	Shield, Fuel Tank, Inlet, No.1	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77293-90K00	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77305-90K00	Lid Sub-Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77305-90K01	Lid Sub-Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77310-12150	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77366-12010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77391-32010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77601-60230	Band, Fuel Tank	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77601-60260	Band, Fuel Tank	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77601-60261	Band, Fuel Tank	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77602-60100	Band, Fuel Tank	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77606-60030	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
77606-60130	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90119-06621	Bolt	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90119-06724	BOLT WWASHER	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90119-10153	BOLT	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90119-10556	Bolt(For Spare Wheel Carrier Lock)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90159-50219	BOLT	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90240-10011	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90249-14002	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90445-22024	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90460-65002	Clamp Or Clip(For Air Hose, No.1)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90467-20134	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
90541-05018	Cushion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
91626-B0818	New Genuine Part	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
93319-A4010	SCREW WWASHER	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
93383-15014	Screw(For Steering Tilt Lever)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
93383-A6014	New Genuine Part	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)
95311-13015	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([08.2001 - 01.2007] FUEL SUB TANK (0108-0701)HDJ7#)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 209
Collected: 2026-08-02
