Search › Model › HDJ78

HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories
HDJ78 ×

← Back to categories

4,852 items

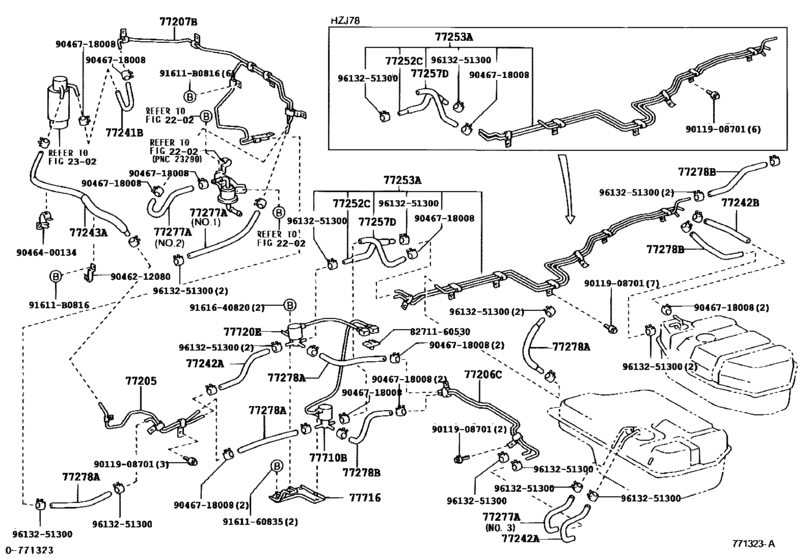

Fuel Tank & Tube ([03.2003 - 01.2007] FUEL TUBE W(FUEL SUB TANK) (0303-0701)HDJ7#) 40
#OEMPart name
77205 77206-60260 Tube Sub-Assy, Fuel Main
77205 77206-60261 Tube Sub-Assy, Fuel Main
77205 77206-60270 Tube Sub-Assy, Fuel Main
77206 77206-60280 Tube Sub-Assy, Fuel Main, No.2
77207 77207-60070 Tube Sub-Assy, Fuel Main, No.3
77241 77259-60390 Hose, Fuel, No.2 (For Main Tube, No.1)
77242 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77242 77259-60410 Hose, Fuel, No.2 (For Main Tube, No.2)
77242 77259-60411 Hose, Fuel, No.2(For Fuel Main No.3 Tube)
77243 77259-60360 Hose, Fuel, No.2 (For Main Tube, No.1)
77252 77259-60380 Hose, Fuel
77253 77208-60120 Tube, Fuel Main, No.3
77257 77259-60430 Hose, Fuel, No.1(For Fuel Return No.3 Tube)
77257 77259-60431 Hose, Fuel, No.1(For Fuel Return No.3 Tube)
77257 77259-60432 Hose, Fuel, No.1(For Fuel Return No.3 Tube)
77277 23273-17070 Hose, Fuel, No.1(For Return Tube, No.1)
77277 77259-60400 Hose, Fuel, No.2 (For Main Tube, No.2)
77277 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77278 77259-60171 Hose, Fuel(For Fuel Evaporative Separator)
77278 77259-60420 Hose, Fuel, No.1 (For Return Tube, No.2)
77278 77259-60421 Tube, Fuel Main, No.2
77278 95332-12016 Hose, Fuel, No.2 (For Main Tube, No.1)
77278 95332-12024 Hose, Fuel, No.1 (For Main Tube, No.2)
77278 95332-12026 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77278 95337-12026 Hose, Fuel, No.1 (For Main Tube, No.2)
77278 95333-08020 Hose, Lpg Injector
77278 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77278 95334-08028 Hose, Fuel, No.2(For Fuel Main Tube)
77710 77710-60160 Valve Assy, Fuel Tank Solenoid Main
77716 77716-60140 Bracket, Fuel Solenoid Valve Main
77720 77720-60130 Valve Assy, Fuel Tank Solenoid Return
91611 91611-B0816 Bolt
8271160530 82711-60530 Wire, Fuse To Fuse(for Combustion Heater)
9011908701 90119-08701 BOLT
9046212080 90462-12080 New Genuine Part
9046400134 90464-00134 New Genuine Part
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9161640820 91616-40820 Bolt, Engine Rear Cover Hinge Set
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
