HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories
HDJ78 ×

← Back to categories

4,852 items

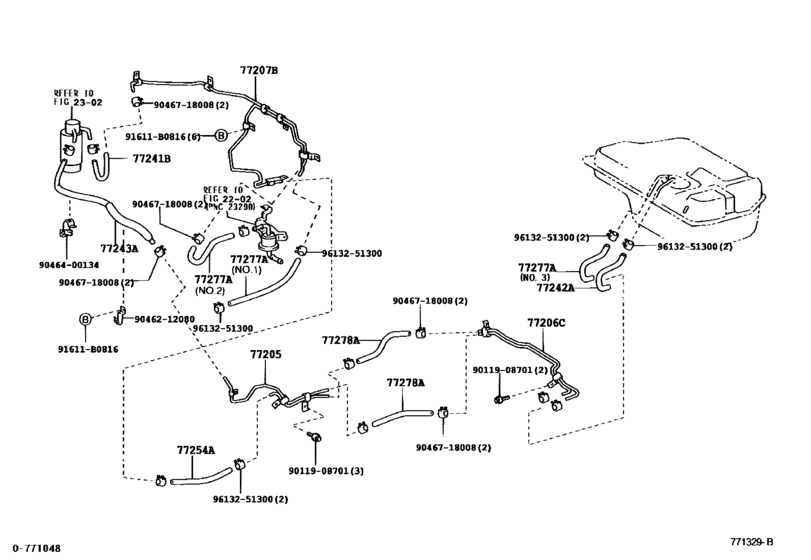

Fuel Tank & Tube ([03.2003 - 01.2007] FUEL TUBE (0303-0701)HDJ7#) 27
#OEMPart name
77205 77206-60260 Tube Sub-Assy, Fuel Main
77205 77206-60261 Tube Sub-Assy, Fuel Main
77205 77206-60270 Tube Sub-Assy, Fuel Main
77206 77206-60280 Tube Sub-Assy, Fuel Main, No.2
77207 77207-60070 Tube Sub-Assy, Fuel Main, No.3
77241 77259-60390 Hose, Fuel, No.2 (For Main Tube, No.1)
77242 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77243 77259-60360 Hose, Fuel, No.2 (For Main Tube, No.1)
77254 77259-60530 Hose, Fuel, No.1 (For Emission Tube, No.1)
77254 95333-08020 Hose, Lpg Injector
77254 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277 23273-17070 Hose, Fuel, No.1(For Return Tube, No.1)
77277 77259-60400 Hose, Fuel, No.2 (For Main Tube, No.2)
77277 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77278 77259-60171 Hose, Fuel(For Fuel Evaporative Separator)
77278 77259-60420 Hose, Fuel, No.1 (For Return Tube, No.2)
77278 77259-60421 Tube, Fuel Main, No.2
77278 95332-12016 Hose, Fuel, No.2 (For Main Tube, No.1)
77278 95332-12024 Hose, Fuel, No.1 (For Main Tube, No.2)
77278 95332-12026 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77278 95337-12026 Hose, Fuel, No.1 (For Main Tube, No.2)
91611 91611-B0816 Bolt
9011908701 90119-08701 BOLT
9046212080 90462-12080 New Genuine Part
9046400134 90464-00134 New Genuine Part
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
