Search › Model › HDJ78

HDJ78

Toyota LAND-CRUISER · 2001 · 4,852 parts · 209 categories

4,852 items

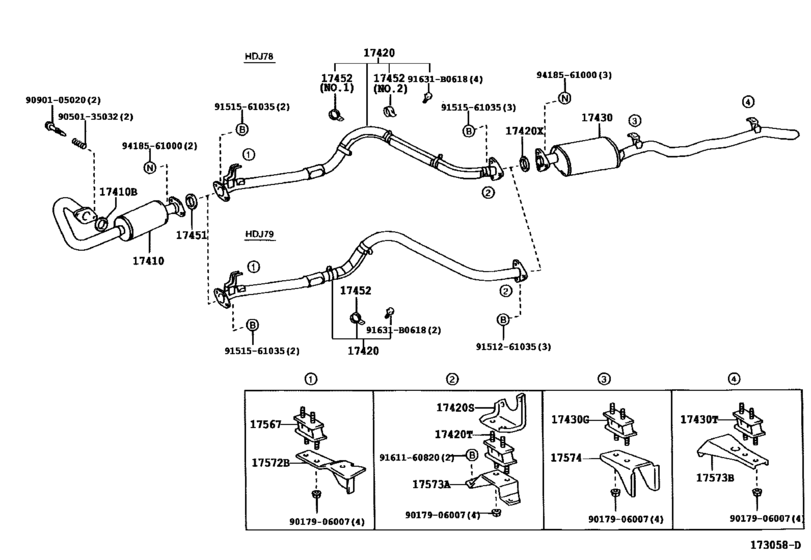

Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE) 27

#	OEM	Part name
17410	17401-17220	Pipe Assy, Exhaust, Front
17410	17401-17221	Pipe Assy, Exhaust, Front
17410	17451-67020	Gasket, Exhaust Pipe
17420	17403-66120	Pipe Assy, Exhaust, Center
17420	17576-61030	Bracket, Exhaust Pipe Center, Rear
17420	17567-17020	Cushion, Exhaust Pipe Center, Rear
17420	90917-06049	Gasket, Exhaust Pipe, Center
17430	17405-17270	Pipe Assy, Exhaust, Tail
17451	90917-06076	Gasket, Exhaust Pipe, Center
17452	90461-12297	Clamp, Exhaust Pipe
17452	90461-12400	Clamp, Exhaust Pipe
17567	17567-66010	Cushion, Exhaust Pipe Support
17567	17567-66011	Cushion, Exhaust Pipe Support, No.2
17572	17572-60070	Bracket, Exhaust Pipe Support, No.2
17573	17573-58081	Bracket, Exhaust Pipe No.1 Support, Lower - EXHAUST PIPE SUPPORT, NO.3
17573	17575-60021	Bracket, Exhaust Pipe Support, No.5
17574	17574-60040	Bracket, Exhaust Pipe Support, No.4
91631	91631-B0618	BOLT WWASHER
9017906007	90179-06007	Nut
9050135032	90501-35032	SPRING COMPRESSION
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151261035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9151261035	90080-10204	New Genuine Part
9151561035	91515-61035	BOLT
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
17401-17220	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17401-17221	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17403-66120	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17405-17270	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17451-67020	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17567-17020	Cushion, Exhaust Pipe Center, Rear	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17567-66010	Cushion, Exhaust Pipe Support	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17567-66011	Cushion, Exhaust Pipe Support, No.2	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17572-60070	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17573-58081	Bracket, Exhaust Pipe No.1 Support, Lower - EXHAUST PIPE SUPPORT, NO.3	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17574-60040	Bracket, Exhaust Pipe Support, No.4	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17575-60021	Bracket, Exhaust Pipe Support, No.5	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
17576-61030	Bracket, Exhaust Pipe Center, Rear	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90080-10204	New Genuine Part	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90179-06007	Nut	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90461-12297	Clamp, Exhaust Pipe	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90461-12400	Clamp, Exhaust Pipe	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90501-35032	SPRING COMPRESSION	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90917-06049	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
90917-06076	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
91515-61035	BOLT	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
91611-60820	Bolt(For Transaxle & Engine Setting)	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
91611-G0820	Bolt	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
91631-B0618	BOLT WWASHER	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
94185-61000	NUTLOCK	Exhaust Pipe ([08.2001 - ] (0108- )1HDFTE)
