Search › Model › HDJ100

HDJ100

Toyota LAND-CRUISER · 1998 · 6,396 parts · 279 categories

6,396 items

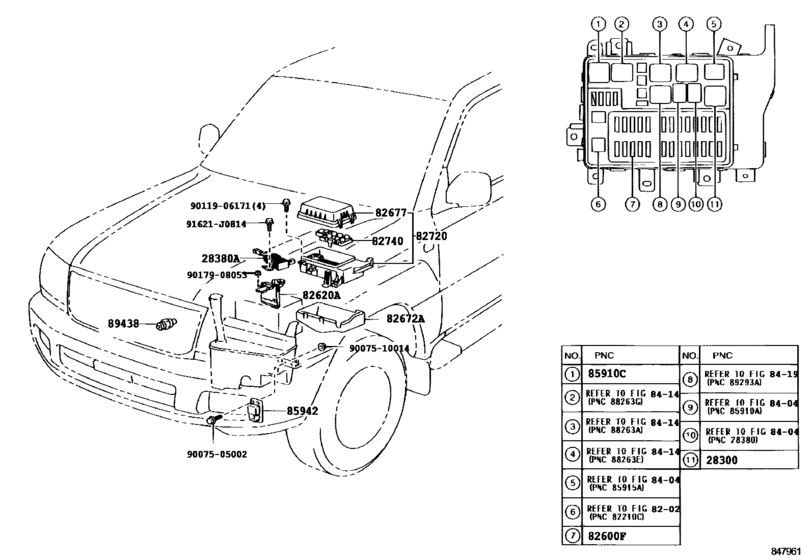

Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- )) 20

#	OEM	Part name
28300	90987-02025	Relay
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-09012	Fusible Link
82600	90982-09013	Fusible Link
82620	82620-60030	Block Assy, Fusible Link
82672	82674-60010	Cover, Junction Block
82677	82677-60040	Cover, Junction Block, Upper No.2
82720	82720-60070	Block Assy, Engine Room Junction
82740	82740-60020	Block Assy, Engine Room Relay
85910	90987-04010	Relay Assy (For Heater Blower Motor)
85942	85942-33010	Relay, Cleaner Control
89438	89438-33010	Switch, Power Steering Oil Pressure
91621	91621-J0814	Bolt (For Transmission Control Cable Bracket)
9007505002	90075-05002	New Genuine Part
9007510014	90075-10014	New Genuine Part
9011906171	90119-06171	BOLT
9017908053	90179-08053	Nut (For Differential Side Gear Shaft)

OEM	Part name	Category
82620-60030	Block Assy, Fusible Link	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
82674-60010	Cover, Junction Block	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
82677-60040	Cover, Junction Block, Upper No.2	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
82720-60070	Block Assy, Engine Room Junction	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
82740-60020	Block Assy, Engine Room Relay	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
85942-33010	Relay, Cleaner Control	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
89438-33010	Switch, Power Steering Oil Pressure	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90075-05002	New Genuine Part	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90075-10014	New Genuine Part	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90119-06171	BOLT	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90179-08053	Nut (For Differential Side Gear Shaft)	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90982-09008	Fusible Link	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90982-09009	Fusible Link	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90982-09010	Fusible Link	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90982-09011	Fusible Link	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90982-09012	Fusible Link	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90982-09013	Fusible Link	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90987-02025	Relay	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
90987-04010	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Switch & Relay & Computer ([08.2002 - ] ENGINE ROOM (0208- ))

Source: Public OEM parts-catalog data
Variants: 1 / 20
Category: 279
Collected: 2026-08-02
