HDB51

Toyota COASTER · 1993 · 4,850 parts · 260 categories
HDB51 ×

← Back to categories

4,850 items

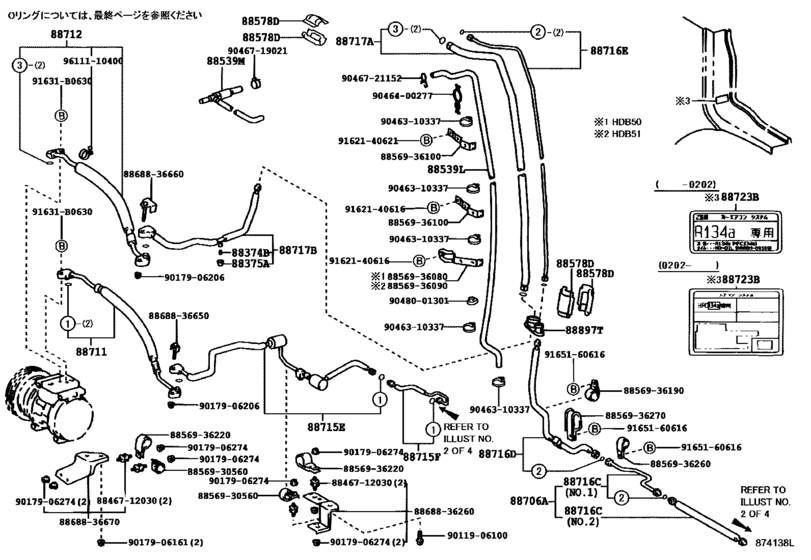

Heating & Air Conditioning - Cooler Piping ([07.1999 - 08.2004] (9907-0408)HDB5#) 47
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88539 88539-36150 Hose, Drain Cooler
88539 88539-36170 Hose, Drain Cooler, No.2
88578 88578-90B01 Packing, Cooler Pipe, No.1
88706 88706-36050 Tube Sub-Assy, Liquid, A
88711 88711-36520 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-36500 Hose, Cooler Refrigerant Suction, No.1
88715 88715-36390 Pipe, Cooler Refrigerant Discharge, E
88715 88715-36130 Pipe, Cooler Refrigerant Discharge, F
88716 88716-36260 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36320 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36150 Pipe, Cooler Refrigerant Liquid, D
88716 88716-36220 Pipe, Cooler Refrigerant Liquid, E
88717 88717-36110 Pipe, Cooler Refrigerant Suction, A
88717 88717-36260 Pipe, Cooler Refrigerant Suction, B
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88733-36020 Label, Cooler Service Caution
88897 88897-36040 Grommet, Cooler
91631 91631-B0630 BOLT WWASHER
8846712030 88467-12030 Cushion, Cooler Condenser, No.1
8856930560 88569-30560 Clamp, Piping, No.2
8856936080 88569-36080 Clamp (for Cooler Relay)
8856936090 88569-36090 Clamp (for Cooler Relay)
8856936100 88569-36100 Clamp (for Cooler Relay)
8856936190 88569-36190 Clamp, Cooler, No.1
8856936220 88569-36220 Clamp, Cooler, No.2
8856936260 88569-36260 Clamp (for Cooler Relay)
8856936270 88569-36270 Clamp, Piping, No.1
8868836260 88688-36260 Bracket, Cooler, No.1
8868836650 88688-36650 Bracket, Cooler Diaphragm
8868836660 88688-36660 Bracket, Cooler Diaphragm
8868836670 88688-36670 Bracket, Cooler Diaphragm
9011906100 90119-06100 BOLT
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017906206 90179-06206 Nut
9017906274 90179-06274 Nut
9046310337 90463-10337 CLAMP
9046400277 90464-00277 New Genuine Part
9046719021 90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046721152 90467-21152 Clip Or Clamp(For Ventilation Hose)
9048001301 90480-01301 New Genuine Part
9162140616 91621-40616 Step Cover Bolt
9162140621 91621-40621 New Genuine Part
9165160616 91651-60616 BOLT
9611110400 96111-10400 Clamp Or Clip, Hose(For Radiator Inlet)
