HDB20

Toyota COASTER · 1990 · 4,734 parts · 181 categories
HDB20 ×

← Back to categories

4,734 items

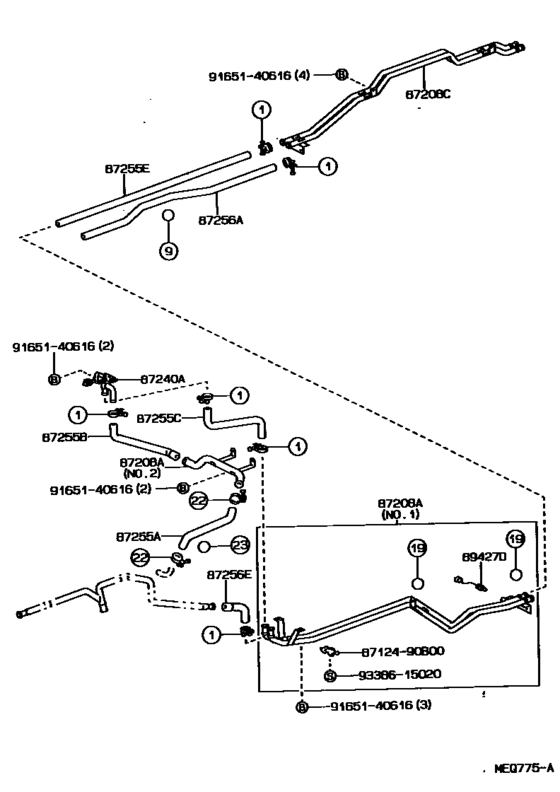

Heating & Air Conditioning - Water Piping ([01.1990 - ] (9001- )HDB20) 17
#OEMPart name
87208 87208-90B16 Pipe Sub-Assy, Heater Water, A
87208 87208-90B33 Pipe Sub-Assy, Heater Water, A
87208 87208-90B30 Pipe Sub-Assy, Heater Water, C
87240 87240-90B04 Valve Assy, Rear Heater Water
87255 87245-90B70 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-90B73 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-90B69 Hose, Rear Heater Water Inlet, B
87255 87245-90B09 Hose, Rear Heater Water Inlet, B
87255 99556-30980 Hose, Heater Water, Inlet A
87255 99556-31000 Hose, Heater Water, Inlet B
87256 87245-90B89 Hose, Rear Heater Water Outlet, E (To Engine)
89427 89427-90B00 Switch, Temperature
8712490 87124-90B00 Bracket, Heater Water Pipe, No.1
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9338615020 93386-15020 New Genuine Part
