Search › Model › HB36

HB36

Toyota COASTER · 1984 · 6,100 parts · 216 categories

6,100 items

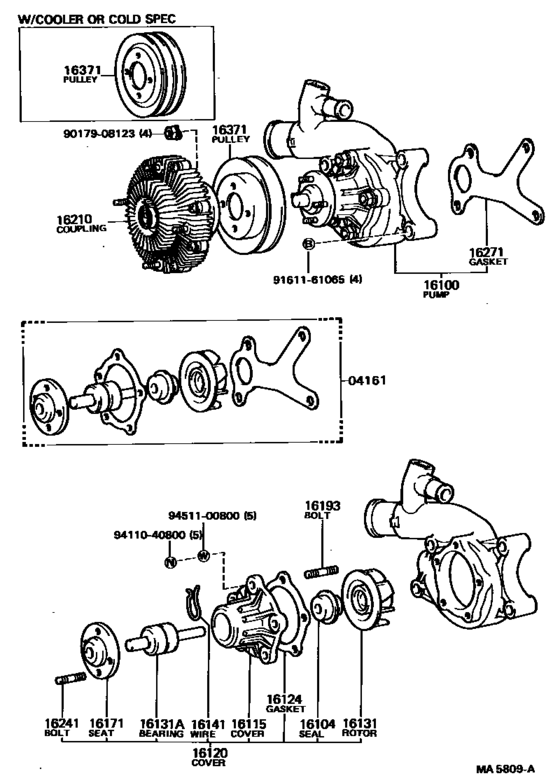

Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H) 28

#	OEM	Part name
4161	04161-68010	Pump Kit, Water
16100	16100-69035	Pump Assy, Engine Water
16100	16100-69037	Pump Assy, Engine Water
16104	16104-15020	Seal Set, Water Pump
16104	16104-41111	Seal Set, Water Pump
16115	16115-68010	Cover, Water Pump
16120	16120-69015	Cover Assy, Water Pump
16124	16129-68010	Gasket, Water Pump Cover
16124	16129-68011	Gasket, Water Pump Cover
16131	16131-68010	Rotor, Water Pump
16131	90369-35016	Bearing, Water Pump
16131	90029-36842	Bearing, Water Pump
16141	16141-68010	Wire, Water Pump Bearing Retaining
16171	16171-41170	Seat, Water Pump Pulley
16193	16193-47020	Bolt, Stud(For Water Pump Cover)
16210	16210-68030	Coupling Assy, Fluid
16210	16210-68040	Coupling Assy, Fluid
16210	16210-17010	Coupling Assy, Fluid
16241	90116-08112	Bolt, Stud(For Water Pump Coupling)
16271	16271-68010	Gasket, Water Pump
16271	16271-68020	Gasket, Water Pump
16371	16371-68030	Pulley, Fan
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9161161065	91611-61065	Bolt(For Transaxle & Engine Setting)
9161161065	91612-61065	Bolt(For Transaxle & Engine Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
04161-68010	Pump Kit, Water	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16100-69035	Pump Assy, Engine Water	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16100-69037	Pump Assy, Engine Water	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16104-15020	Seal Set, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16104-41111	Seal Set, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16115-68010	Cover, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16120-69015	Cover Assy, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16129-68010	Gasket, Water Pump Cover	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16129-68011	Gasket, Water Pump Cover	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16131-68010	Rotor, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16141-68010	Wire, Water Pump Bearing Retaining	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16171-41170	Seat, Water Pump Pulley	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16193-47020	Bolt, Stud(For Water Pump Cover)	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16210-17010	Coupling Assy, Fluid	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16210-68030	Coupling Assy, Fluid	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16210-68040	Coupling Assy, Fluid	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16271-68010	Gasket, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16271-68020	Gasket, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
16371-68030	Pulley, Fan	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
90029-36842	Bearing, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
90116-08112	Bolt, Stud(For Water Pump Coupling)	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
90179-08123	Nut (For Front Wiper Arm Setting)	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
90369-35016	Bearing, Water Pump	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
91611-61065	Bolt(For Transaxle & Engine Setting)	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
91612-61065	Bolt(For Transaxle & Engine Setting)	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
94110-40800	Nut(For Steering Damper)	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
94130-00802	Nut, No.1 (For Center Support Bearing)	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)
94511-00800	WASHERSPRING	Water Pump ([05.1982 - 01.1990] (8205-9001)12HT,2H)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 216
Collected: 2026-08-02
