HB30

Toyota COASTER · 1982 · 5,091 parts · 181 categories
HB30 ×

← Back to categories

5,091 items

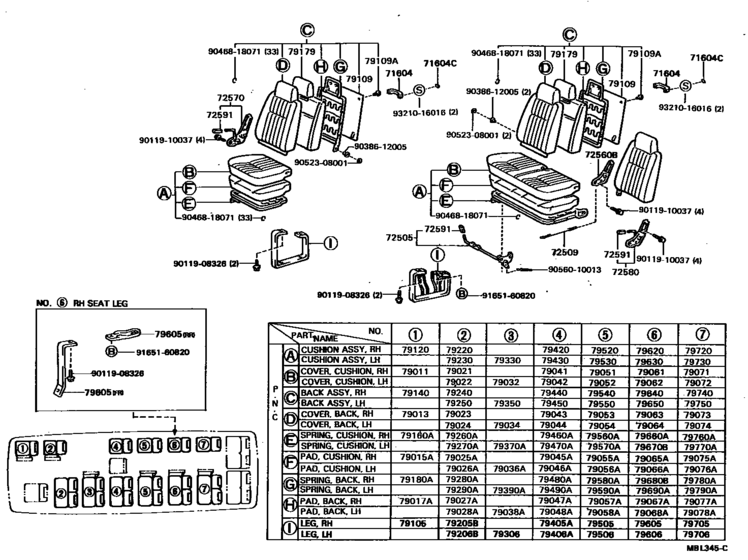

Seat & Seat Track ([10.1986 - ] (8610- )FB30,HB30,HZB30..LHD..DLX..GEN) 214
#OEMPart name
71604 74610-10020-26 Grip Sub-Assy, Assist(For Seat Back)
71604 74610-10020-B3 Grip Assy, Assist, No.2 Rh
71604 74610-90B01 Grip Sub-Assy, Assist(For Seat Back)
71604 74610-10020-22 Grip Sub-Assy, Assist(For Seat Back) - ASSIST, FRONT
71604 74617-14010-32 Plug, Hole(For Assist Grip)
71604 74617-14010-40 Plug, Hole(For Assist Grip)
71604 74617-14010-B3 Plug, Assist Grip
72505 72505-90B00 Arm Sub-Assy, Reclining Adjuster, Center Rh
72505 72505-90B00-02 Arm Sub-Assy, Reclining Adjuster, Center Rh
72505 72505-90B00-06 Arm Sub-Assy, Reclining Adjuster, Center Rh
72509 72509-90B00 Wire Sub-Assy, Adjuster Equlizing
72560 72560-90B00 Adjuster Assy, Reclining Seat, Center Lh
72560 72560-90B00-02 Adjuster Assy, Reclining Seat, Center Lh
72560 72560-90B00-06 Adjuster Assy, Reclining Seat, Center Lh
72570 72530-90B00 Adjuster Assy, Rear Reclining Seat, Rh
72570 72530-90B00-06 Adjuster Assy, Rear Reclining Seat, Rh
72580 72540-90B00 Adjuster Assy, Rear Reclining Seat, Lh
72580 72540-90B00-06 Adjuster Assy, Rear Reclining Seat, Lh
72591 72591-90B00 Knob, Reclining Remote Control Lever
79011 79011-90B03 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-90B14 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-90B23-02 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-90B24-02 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-90B27-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-90B29-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79021-90B41-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79021-90B42-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79013 79013-90B37 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-90B46-02 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-90B47-02 Cover Sub-Assy, No.1 Seat Back, Lh
79013 79013-90B55-06 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-90B59-06 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-90B63-06 Cover Sub-Assy, No.2 Seat Back, Lh
79015 79015-90B00 Pad Sub-Assy, No.1 Seat Cushion, Lh
79017 79017-90B00 Pad Sub-Assy, No.1 Seat Back, Lh
79017 79017-90B01 Pad Sub-Assy, No.2 Seat Back, Rh
79021 79011-90B32-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79021 79011-90B33-06 Cover Sub-Assy, No.1 Seat Cushion, Rh
79022 79022-90B31 Cover Sub-Assy, No.2 Seat Cushion, Lh
79022 79022-90B42-02 Cover Sub-Assy, No.2 Seat Cushion, Lh
79022 79022-90B43-02 Cover Sub-Assy, No.2 Seat Cushion, Lh
79022 79022-90B54-06 Cover Sub-Assy, No.2 Seat Cushion, Lh
79022 79022-90B56-06 Cover Sub-Assy, No.2 Seat Cushion, Lh
79022 79022-90B61-06 Cover Sub-Assy, No.2 Seat Cushion, Lh
79024 79023-90B24-02 Cover Sub-Assy, No.2 Seat Back, Rh
79024 79023-90B25-02 Cover Sub-Assy, No.2 Seat Back, Rh
79024 79023-90B38-06 Cover Sub-Assy, No.2 Seat Back, Rh
79024 79023-90B39-06 Cover Sub-Assy, No.2 Seat Back, Rh
79024 79024-90B03 Cover Sub-Assy, No.2 Seat Back, Lh
79024 79024-90B10-06 Cover Sub-Assy, No.2 Seat Back, Lh
79026 79035-90B00 Pad Sub-Assy, No.2 Seat Cushion, Rh
79026 79035-90B01 Pad Sub-Assy, No.2 Seat Cushion, Rh
79028 79027-90B02 Pad Sub-Assy, No.2 Seat Back, Rh
79028 79028-90B00 Pad Sub-Assy, No.2 Seat Back, Lh
79032 79032-90B18 Cover Sub-Assy, No.3 Seat Cushion, Lh
79032 79032-90B20-02 Cover Sub-Assy, No.3 Seat Cushion, Lh
79032 79032-90B21-02 Cover Sub-Assy, No.3 Seat Cushion, Lh
79032 79032-90B26-06 Cover Sub-Assy, No.3 Seat Cushion, Lh
79032 79032-90B28-06 Cover Sub-Assy, No.3 Seat Cushion, Lh
79032 79032-90B30-06 Cover Sub-Assy, No.3 Seat Cushion, Lh
79034 79014-90B04 Cover Sub-Assy, No.1 Seat Back, Lh
79034 79014-90B09-06 Cover Sub-Assy, No.1 Seat Back, Lh
79034 79033-90B36-02 Cover Sub-Assy, No.3 Seat Back, Rh
79034 79033-90B37-02 Cover Sub-Assy, No.3 Seat Back, Rh
79034 79033-90B45-06 Cover Sub-Assy, No.2 Seat Back, Rh
79034 79033-90B47-06 Cover Sub-Assy, No.3 Seat Back, Rh
79038 79018-90B00 Pad Sub-Assy, No.1 Seat Back, Lh
79038 79037-90B00 Pad Sub-Assy, No.2 Seat Back, Rh
79051 79011-90B11 Cover Sub-Assy, No.1 Seat Cushion, Rh
79109 79109-90B02 Board Sub-Assy, No.1 Seat Back
79109 79109-90B02-02 Board Sub-Assy, No.1 Seat Back
79109 79109-90B02-06 Board Sub-Assy, No.1 Seat Back
79120 79120-90B04 Cushion Assy, No.1 Seat, Rh
79120 79120-90B13 Cushion Assy, No.1 Seat, Rh
79120 79120-90B23-06 Cushion Assy, No.1 Seat, Rh
79120 79120-90B28-06 Cushion Assy, No.1 Seat, Rh
79120 79220-90B30 Cushion Assy, No.1 Seat, Rh
79120 79220-90B56-06 Cushion Assy, No.1 Seat, Rh
79120 79220-90B57-06 Cushion Assy, No.1 Seat, Rh
79140 79140-90B04 Back Assy, No.2 Seat, Rh
79140 79140-90B13 Back Assy, No.2 Seat, Lh
79140 79140-90B31-02 Back Assy, No.2 Seat, Lh
79140 79140-90B20 Back Assy, No.1 Seat, Rh
79140 79140-90B26 Back Assy, No.1 Seat, Rh
79140 79140-90B35-06 Back Assy, No.1 Seat, Rh
79140 79140-90B37-06 Back Assy, No.1 Seat, Rh
79140 79140-90B39-06 Back Assy, No.2 Seat, Lh
79140 79140-90B40-06 Back Assy, No.2 Seat, Rh
79160 79160-90B00 Spring Assy, No.1 Seat Cushion, Rh
79160 79160-90B00-02 Spring Assy, No.1 Seat Cushion, Rh
79160 79160-90B00-06 Spring Assy, No.1 Seat Cushion, Rh
79160 79260-90B00 Spring Assy, No.1 Seat Cushion, Rh
79160 79260-90B00-02 Spring Assy, No.1 Seat Cushion, Rh
79160 79260-90B00-06 Spring Assy, No.1 Seat Cushion, Rh
79179 79179-90B00 Pad, No.1 Seat Back Headrest
79179 79879-90B00 Pad, Fold Seat Headrest
79180 79180-90B00 Spring Assy, No.1 Seat Back, Lh
79180 79180-90B00-02 Spring Assy, No.1 Seat Back, Lh
79180 79180-90B00-06 Spring Assy, No.1 Seat Back, Lh
79180 79180-90B01 Spring Assy, No.2 Seat Back, Rh
79180 79180-90B01-02 Spring Assy, No.2 Seat Back, Rh
79180 79180-90B01-06 Spring Assy, No.2 Seat Back, Rh
79230 79230-90B38 Cushion Assy, No.2 Seat, Lh
79230 79230-90B42 Cushion Assy, No.2 Seat, Lh
79230 79230-90B43 Cushion Assy, No.2 Seat, Lh
79230 79230-90B51-02 Cushion Assy, No.2 Seat, Lh
79230 79230-90B65-06 Cushion Assy, No.2 Seat, Lh
79230 79230-90B67-06 Cushion Assy, No.2 Seat, Lh
79230 79230-90B70-06 Cushion Assy, No.2 Seat, Lh
79230 79230-90B72-06 Cushion Assy, No.2 Seat, Lh
79240 79240-90B36-02 Back Assy, No.2 Seat, Lh
79240 79240-90B41-06 Back Assy, No.2 Seat, Rh
79240 79250-90B23 Back Assy, No.2 Seat, Rh
79240 79250-90B37-06 Back Assy, No.2 Seat, Rh
79250 79240-90B26 Back Assy, No.2 Seat, Rh
79250 79240-90B45-06 Back Assy, No.2 Seat, Rh
79250 79240-90B48-06 Back Assy, No.2 Seat, Rh
79250 79250-90B29 Back Assy, No.2 Seat, Lh
79250 79250-90B47-06 Back Assy, No.2 Seat, Lh
79270 79370-90B00 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B00-02 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B00-06 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B01 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B01-02 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B01-06 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B03 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B03-02 Spring Assy, No.2 Seat Cushion, Lh
79270 79370-90B03-06 Spring Assy, No.2 Seat Cushion, Lh
79280 79290-90B00 Spring Assy, No.2 Seat Back, Lh
79280 79290-90B00-02 Spring Assy, No.2 Seat Back, Lh
79280 79290-90B00-06 Spring Assy, No.2 Seat Back, Lh
79290 79280-90B00 Spring Assy, No.2 Seat Back, Rh
79290 79280-90B00-02 Spring Assy, No.2 Seat Back, Rh
79290 79280-90B00-06 Spring Assy, No.2 Seat Back, Rh
79290 79290-90B02 Spring Assy, No.2 Seat Back, Lh
79290 79290-90B02-02 Spring Assy, No.2 Seat Back, Lh
79290 79290-90B02-06 Spring Assy, No.2 Seat Back, Lh
79290 79303-90B01-06 Spring Assy, No.2 Seat Back, Rh
79330 79330-90B12 Cushion Assy, No.3 Seat, Lh
79330 79330-90B16 Cushion Assy, No.3 Seat, Lh
79330 79330-90B17 Cushion Assy, No.3 Seat, Lh
79330 79330-90B23-02 Cushion Assy, No.3 Seat, Lh
79330 79330-90B35-06 Cushion Assy, No.3 Seat, Lh
79330 79330-90B40-06 Cushion Assy, No.3 Seat, Lh
79330 79330-90B41-06 Cushion Assy, No.3 Seat, Lh
79330 79330-90B43-06 Cushion Assy, No.3 Seat, Lh
79350 79150-90B37 Back Assy, No.1 Seat, Lh
79350 79150-90B53-06 Back Assy, No.1 Seat, Lh
79350 79340-90B30 Back Assy, No.3 Seat, Rh
79350 79340-90B44-06 Back Assy, No.3 Seat, Rh
79350 79340-90B45-06 Back Assy, No.3 Seat, Rh
79350 79350-90B09-02 Back Assy, No.3 Seat, Rh
79390 79190-90B01 Spring Assy, No.1 Seat Back, Lh
79390 79190-90B01-02 Spring Assy, No.1 Seat Back, Lh
79390 79190-90B01-06 Spring Assy, No.1 Seat Back, Lh
79390 79380-90B00 Spring Assy, No.2 Seat Back, Rh
79390 79380-90B00-02 Spring Assy, No.2 Seat Back, Rh
79390 79380-90B00-06 Spring Assy, No.2 Seat Back, Rh
79420 79420-90B14 Cushion Assy, No.4 Seat, Rh
79420 79420-90B19 Cushion Assy, No.4 Seat, Rh
79420 79420-90B24-02 Cushion Assy, No.4 Seat, Rh
79420 79420-90B25-06 Cushion Assy, No.4 Seat, Rh
79420 79420-90B26-06 Cushion Assy, No.4 Seat, Rh
79420 79420-90B31-06 Cushion Assy, No.4 Seat, Rh
79430 79330-90B37-06 Cushion Assy, No.3 Seat, Lh
79460 79460-90B00 Spring Assy, No.4 Seat Cushion, Rh
79460 79460-90B00-02 Spring Assy, No.4 Seat Cushion, Rh
79460 79460-90B00-06 Spring Assy, No.4 Seat Cushion, Rh
79460 79460-90B01 Spring Assy, No.4 Seat Cushion, Rh
79460 79460-90B01-02 Spring Assy, No.4 Seat Cushion, Rh
79460 79460-90B01-06 Spring Assy, No.2 Seat Cushion, Rh
79470 79470-90B01 Spring Assy, No.4 Seat Cushion, Lh
79470 79470-90B01-02 Spring Assy, No.4 Seat Cushion, Lh
79470 79470-90B01-06 Spring Assy, No.4 Seat Cushion, Lh
79530 79330-90B08 Cushion Assy, No.3 Seat, Lh
79620 79620-90B28 Cushion Assy, No.6 Seat, Rh
79620 79620-90B37 Cushion Assy, No.6 Seat, Rh
79620 79620-90B42-02 Cushion Assy, No.6 Seat, Rh
79620 79620-90B43-06 Cushion Assy, No.6 Seat, Rh
79620 79620-90B44-06 Cushion Assy, No.6 Seat, Rh
79620 79620-90B47-06 Cushion Assy, No.6 Seat, Rh
79630 79630-90B31 Cushion Assy, No.6 Seat, Lh
79630 79630-90B35 Cushion Assy, No.6 Seat, Lh
79630 79630-90B36 Cushion Assy, No.6 Seat, Lh
79630 79630-90B43-02 Cushion Assy, No.6 Seat, Lh
79630 79630-90B52-06 Cushion Assy, No.6 Seat, Lh
79630 79630-90B53-06 Cushion Assy, No.6 Seat, Lh
79630 79630-90B56-06 Cushion Assy, No.6 Seat, Lh
79660 79660-90B03 Spring Assy, No.6 Seat Cushion, Rh
79660 79660-90B03-02 Spring Assy, No.6 Seat Cushion, Rh
79660 79660-90B03-06 Spring Assy, No.6 Seat Cushion, Rh
79660 79660-90B07 Spring Assy, No.6 Seat Cushion, Rh
79660 79660-90B07-02 Spring Assy, No.6 Seat Cushion, Rh
79660 79660-90B07-06 Spring Assy, No.6 Seat Cushion, Rh
79670 79670-90B01 Spring Assy, No.6 Seat Cushion, Lh
79670 79670-90B01-02 Spring Assy, No.6 Seat Cushion, Lh
79670 79670-90B04 Spring Assy, No.6 Seat Cushion, Lh
79670 79670-90B04-02 Spring Assy, No.6 Seat Cushion, Lh
79670 79670-90B05 Spring Assy, No.6 Seat Cushion, Lh
79670 79670-90B05-02 Spring Assy, No.6 Seat Cushion, Lh
79730 79630-90B57-06 Cushion Assy, No.6 Seat, Lh
79770 79670-90B01-06 Spring Assy, No.6 Seat Cushion, Lh
79770 79670-90B04-06 Spring Assy, No.6 Seat Cushion, Lh
79770 79670-90B05-06 Spring Assy, No.6 Seat Cushion, Lh
9011908326 90119-08326 New Genuine Part
9011910037 90119-10037 BOLT
9038612005 90386-12005 Bush (For Front Seat Hinge Pin)
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9056010013 90560-10013 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9321016016 93210-16016 SCREW
Source
Public OEM parts-catalog data
Variants
2 / 32
Category
181
Collected
2026-08-02
