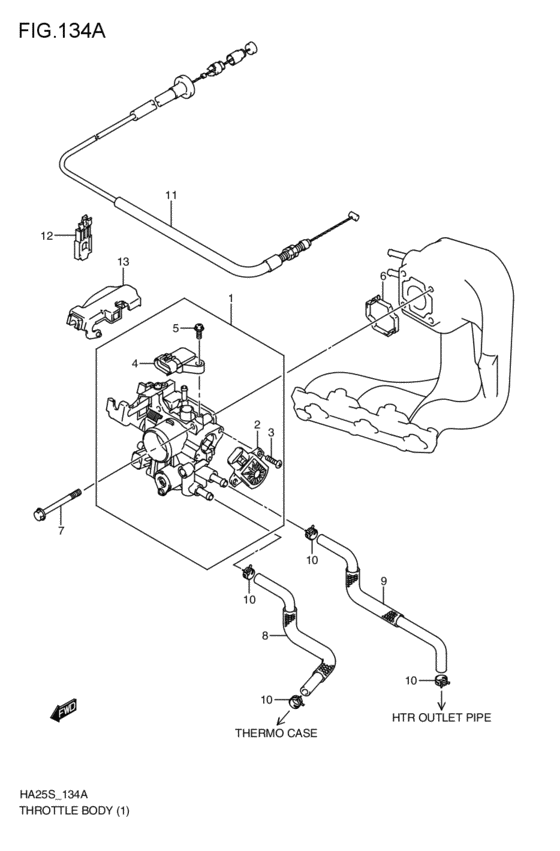

| 01550-0650A-000 |
Bolt - Bolt (6x50) |
throttle body (MT,AT; 2009-09-01~) |
| 02162-0516A-000 |
SCREW |
throttle body (MT,AT; 2009-09-01~) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
throttle body (MT,AT; 2009-09-01~) |
| 13400-85K00-000 |
ボディアッシ,スロットル |
throttle body (MT,AT; 2009-09-01~) |
| 13420-82K00-000 |
SENSOR,THROTTLE POSITION |
throttle body (MT,AT; 2009-09-01~) |
| 13421-85K00-000 |
GASKET,THROT BODY |
throttle body (MT,AT; 2009-09-01~) |
| 13428-77G1V-000 |
SCREW,4X12 |
throttle body (MT,AT; 2009-09-01~) |
| 13471-85K00-000 |
カバー,スロットルボディ |
throttle body (MT,AT; 2009-09-01~) |
| 13491-85K00-000 |
ホース,ウォータスロットルボディインレット |
throttle body (MT,AT; 2009-09-01~) |
| 13492-85K00-000 |
ホース,ウォータスロットルボディアウトレット |
throttle body (MT,AT; 2009-09-01~) |
| 15910-85K00-000 |
ケーブルアッシ,アクセル |
throttle body (MT,AT; 2009-09-01~) |
| 15911-58J00-000 |
CLAMP,ACCEL CABLE |
throttle body (MT,AT; 2009-09-01~) |
| 18590-82K00-000 |
SENSOR ASSY,PRESSURE |
throttle body (MT,AT; 2009-09-01~) |
