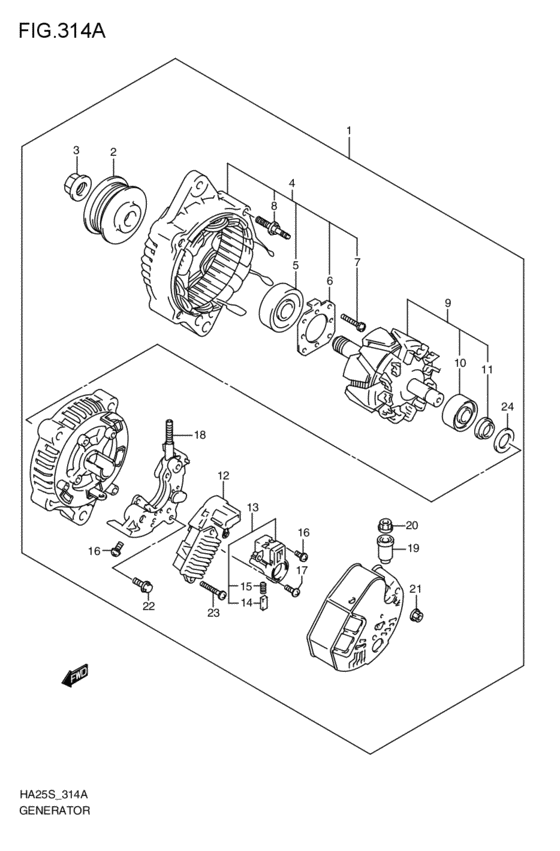

generator (2009-09-01~)
31
| # | OEM | Part name |
|---|
| 1 |
31400-58J10-000 |
ジェネレータアッシ |
| 1 |
31400-58J21-000 |
New Genuine Part |
| 2 |
31171-58J10-000 |
PULLEY |
| 3 |
31775-86510-000 |
NUT |
| 4 |
31580-75F00-000 |
Frame assy,drive end |
| 4 |
31580-75F01-000 |
FRAME ASSY,DRIVE END |
| 5 |
31582-60G13-000 |
Bearing |
| 5 |
31582-60G14-000 |
BEARING,BALL |
| 6 |
31585-82111-000 |
RETAINER,BEARING |
| 7 |
02112-0416A-000 |
SCREW |
| 8 |
31587-82110-000 |
Bolt |
| 9 |
31710-75F00-000 |
Rotor assy |
| 9 |
31710-75F01-000 |
ROTOR ASSY |
| 10 |
31612-60G13-000 |
Bearing |
| 10 |
31612-60G14-000 |
BEARING |
| 11 |
31613-82610-000 |
COVER,BEARING |
| 12 |
32500-58J10-000 |
REGULATOR ASSY,GENERATOR |
| 13 |
31656-60G10-000 |
HOLDER ASSY,BRUSH |
| 14 |
31631-82610-000 |
BRUSH |
| 15 |
31635-82610-000 |
SPRING,BRUSH |
| 16 |
31516-85250-000 |
SCREW |
| 16 |
02112-0406B-000 |
SCREW |
| 17 |
31517-75F00-000 |
SCREW |
| 18 |
31621-75F00-000 |
HOLDER ASSY,RECTIFIER |
| 19 |
31514-82610-000 |
INSULATOR,TERMINAL |
| 20 |
08310-0006B-000 |
NUT - Nut gear shift link rod |
| 21 |
08310-0005A-000 |
NUT |
| 22 |
31599-75F00-000 |
Bolt |
| 23 |
02112-74253-000 |
SCREW |
| 23 |
32642-80G10-000 |
SCREW |
| 24 |
31615-60G10-000 |
WASHER |
| OEM |
Part name |
Category |
| 02112-0406B-000 |
SCREW |
generator (2009-09-01~) |
| 02112-0416A-000 |
SCREW |
generator (2009-09-01~) |
| 02112-74253-000 |
SCREW |
generator (2009-09-01~) |
| 08310-0005A-000 |
NUT |
generator (2009-09-01~) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
generator (2009-09-01~) |
| 31171-58J10-000 |
PULLEY |
generator (2009-09-01~) |
| 31400-58J10-000 |
ジェネレータアッシ |
generator (2009-09-01~) |
| 31400-58J21-000 |
New Genuine Part |
generator (2009-09-01~) |
| 31514-82610-000 |
INSULATOR,TERMINAL |
generator (2009-09-01~) |
| 31516-85250-000 |
SCREW |
generator (2009-09-01~) |
| 31517-75F00-000 |
SCREW |
generator (2009-09-01~) |
| 31580-75F00-000 |
Frame assy,drive end |
generator (2009-09-01~) |
| 31580-75F01-000 |
FRAME ASSY,DRIVE END |
generator (2009-09-01~) |
| 31582-60G13-000 |
Bearing |
generator (2009-09-01~) |
| 31582-60G14-000 |
BEARING,BALL |
generator (2009-09-01~) |
| 31585-82111-000 |
RETAINER,BEARING |
generator (2009-09-01~) |
| 31587-82110-000 |
Bolt |
generator (2009-09-01~) |
| 31599-75F00-000 |
Bolt |
generator (2009-09-01~) |
| 31612-60G13-000 |
Bearing |
generator (2009-09-01~) |
| 31612-60G14-000 |
BEARING |
generator (2009-09-01~) |
| 31613-82610-000 |
COVER,BEARING |
generator (2009-09-01~) |
| 31615-60G10-000 |
WASHER |
generator (2009-09-01~) |
| 31621-75F00-000 |
HOLDER ASSY,RECTIFIER |
generator (2009-09-01~) |
| 31631-82610-000 |
BRUSH |
generator (2009-09-01~) |
| 31635-82610-000 |
SPRING,BRUSH |
generator (2009-09-01~) |
| 31656-60G10-000 |
HOLDER ASSY,BRUSH |
generator (2009-09-01~) |
| 31710-75F00-000 |
Rotor assy |
generator (2009-09-01~) |
| 31710-75F01-000 |
ROTOR ASSY |
generator (2009-09-01~) |
| 31775-86510-000 |
NUT |
generator (2009-09-01~) |
| 32500-58J10-000 |
REGULATOR ASSY,GENERATOR |
generator (2009-09-01~) |
| 32642-80G10-000 |
SCREW |
generator (2009-09-01~) |
