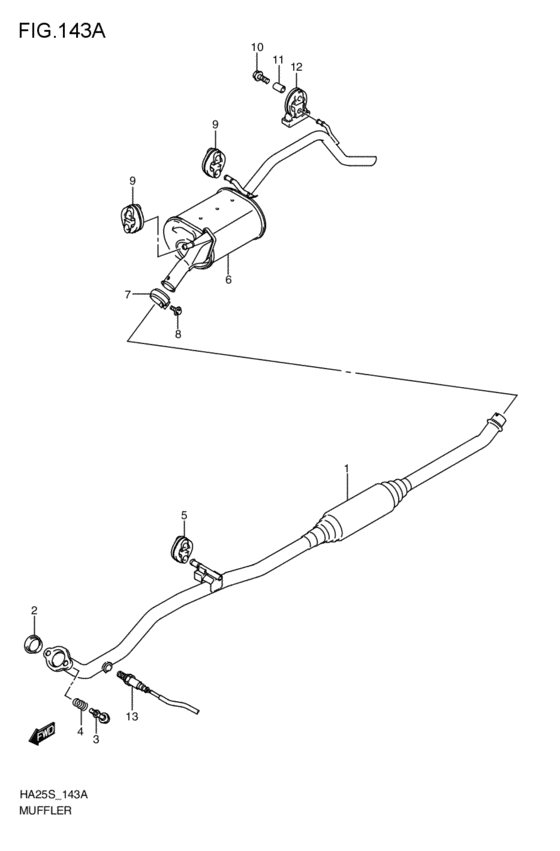

muffler (2009-09-01~)
20
| # | OEM | Part name |
|---|
| 1 |
14190-82K01-000 |
パイプ,エキゾースト |
| 1 |
14190-82K02-000 |
New Genuine Part |
| 1 |
14190-82K03-000 |
New Genuine Part |
| 2 |
14183-75FC0-000 |
RING,SEAL EXH PIPE |
| 3 |
09119-10039-000 |
Bolt |
| 3 |
14493-76G01-000 |
BOLT,EXH PIPE |
| 4 |
14492-83G01-000 |
SPRING,EXH PIPE |
| 4 |
14492-83G00-000 |
Spring,exh pipe |
| 5 |
14281-75F01-000 |
MOUNTING,MUF |
| 6 |
14300-82K02-000 |
Muffler |
| 6 |
14300-82K30-000 |
New Genuine Part |
| 7 |
14185-72J00-000 |
CLAMP,EXH PIPE |
| 8 |
14186-72J00-000 |
BOLT,EXH PIPE CLAMP 8X35 |
| 10 |
01551-0835A-000 |
Bolt |
| 11 |
09180-08057-000 |
Spacer |
| 11 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 12 |
14281-58J01-000 |
Mounting,muffler |
| 12 |
14281-68K00-000 |
MOUNTING,MUF |
| 13 |
18213-82K30-000 |
センサ,オキシジェンリヤ |
| 13 |
18213-82K31-000 |
New Genuine Part |
| OEM |
Part name |
Category |
| 01551-0835A-000 |
Bolt |
muffler (2009-09-01~) |
| 09119-10039-000 |
Bolt |
muffler (2009-09-01~) |
| 09180-08057-000 |
Spacer |
muffler (2009-09-01~) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
muffler (2009-09-01~) |
| 14183-75FC0-000 |
RING,SEAL EXH PIPE |
muffler (2009-09-01~) |
| 14185-72J00-000 |
CLAMP,EXH PIPE |
muffler (2009-09-01~) |
| 14186-72J00-000 |
BOLT,EXH PIPE CLAMP 8X35 |
muffler (2009-09-01~) |
| 14190-82K01-000 |
パイプ,エキゾースト |
muffler (2009-09-01~) |
| 14190-82K02-000 |
New Genuine Part |
muffler (2009-09-01~) |
| 14190-82K03-000 |
New Genuine Part |
muffler (2009-09-01~) |
| 14281-58J01-000 |
Mounting,muffler |
muffler (2009-09-01~) |
| 14281-68K00-000 |
MOUNTING,MUF |
muffler (2009-09-01~) |
| 14281-75F01-000 |
MOUNTING,MUF |
muffler (2009-09-01~) |
| 14300-82K02-000 |
Muffler |
muffler (2009-09-01~) |
| 14300-82K30-000 |
New Genuine Part |
muffler (2009-09-01~) |
| 14492-83G00-000 |
Spring,exh pipe |
muffler (2009-09-01~) |
| 14492-83G01-000 |
SPRING,EXH PIPE |
muffler (2009-09-01~) |
| 14493-76G01-000 |
BOLT,EXH PIPE |
muffler (2009-09-01~) |
| 18213-82K30-000 |
センサ,オキシジェンリヤ |
muffler (2009-09-01~) |
| 18213-82K31-000 |
New Genuine Part |
muffler (2009-09-01~) |
