Search › Model › HA25S
HA25S

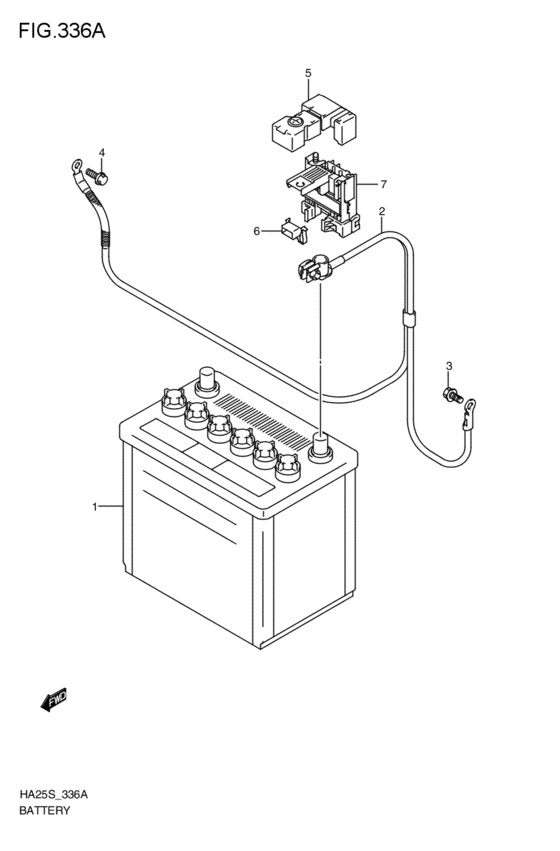

battery (2009-09-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) |
| 2 | 33850-58J50-000 | ケーブル,バッテリグランド |
| 3 | 09115-06005-000 | BOLT(6X16) |
| 4 | 01550-0812A-000 | Bolt |
| 5 | 36694-82K00-000 | COVER |
| 6 | 36694-82K10-000 | HOLDER,CABLE |
| 7 | 36739-82K00-000 | フューズ,バッテリ(80A) |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | battery (2009-09-01~) |
| 09115-06005-000 | BOLT(6X16) | battery (2009-09-01~) |
| 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) | battery (2009-09-01~) |
| 33850-58J50-000 | ケーブル,バッテリグランド | battery (2009-09-01~) |
| 36694-82K00-000 | COVER | battery (2009-09-01~) |
| 36694-82K10-000 | HOLDER,CABLE | battery (2009-09-01~) |
| 36739-82K00-000 | フューズ,バッテリ(80A) | battery (2009-09-01~) |
