Search › Model › HA24V
HA24V

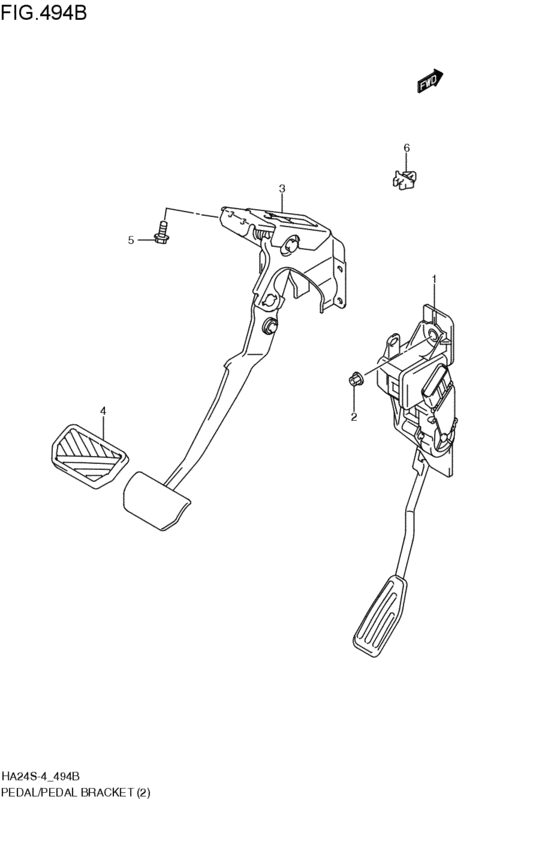

pedal / pedal bracket (AT; 2008-05-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 49400-72J41-000 | ペダルアッシ,アクセレレータ |
| 2 | 09159-08127-000 | NUT |
| 3 | 49600-72J11-000 | ペダルアッシ,ブレーキ |
| 4 | 49751-58J10-000 | PAD,PEDAL |
| 5 | 01551-0816C-000 | Bolt |
| 6 | 75411-76G00-000 | Clamp, Cable |
| OEM | Part name | Category |
|---|---|---|
| 01551-0816C-000 | Bolt | pedal / pedal bracket (AT; 2008-05-01~) |
| 09159-08127-000 | NUT | pedal / pedal bracket (AT; 2008-05-01~) |
| 49400-72J41-000 | ペダルアッシ,アクセレレータ | pedal / pedal bracket (AT; 2008-05-01~) |
| 49600-72J11-000 | ペダルアッシ,ブレーキ | pedal / pedal bracket (AT; 2008-05-01~) |
| 49751-58J10-000 | PAD,PEDAL | pedal / pedal bracket (AT; 2008-05-01~) |
| 75411-76G00-000 | Clamp, Cable | pedal / pedal bracket (AT; 2008-05-01~) |
