Search › Model › HA24V
HA24V

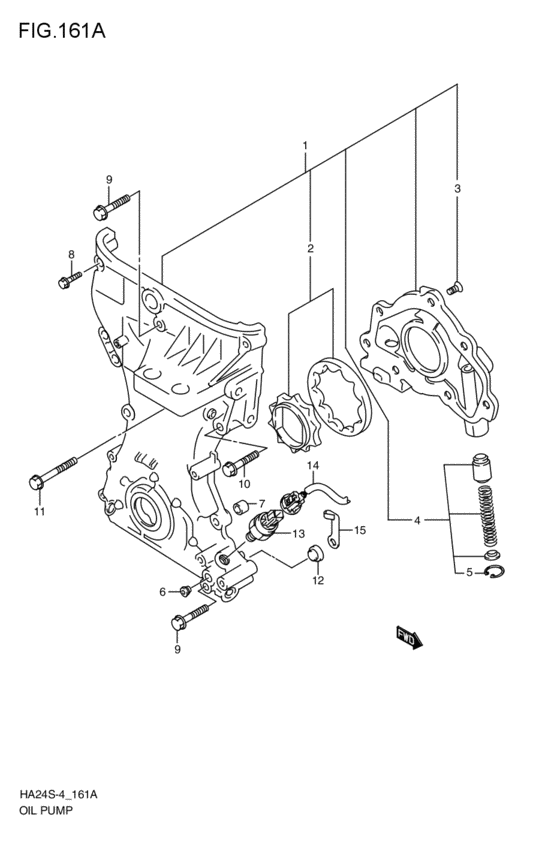

Oil pump (2008-05-01~) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 16100-58J00-000 | ポンプアッシ,オイル |
| 1 | 16100-58J01-000 | New Genuine Part |
| 1 | 16100-85K50-000 | ポンプアッシ,オイル |
| 1 | 16100-85K51-000 | PUMP ASSY,OIL |
| 2 | 16130-58810-000 | ROTOR SET,OIL PUMP |
| 3 | 02122-0616A-000 | SCREW |
| 4 | 16150-60A20-000 | VALVE SET,OIL PUMP RELIEF |
| 5 | 08331-4115A-000 | CIRCLIP |
| 6 | 09246-05006-000 | PLUG(1/8PT,H:5.5) |
| 7 | 04211-09109-000 | PIN - Knock pin |
| 8 | 01550-0630A-000 | Bolt |
| 9 | 01550-0650A-000 | Bolt - Bolt (6x50) |
| 10 | 01550-0840A-000 | Bolt |
| 11 | 09103-08388-000 | BOLT(8X40) - Bolt, rr final gr case |
| 12 | 16210-73H01-000 | FILTER,OIL GALLERY |
| 13 | 37820-73H10-000 | Switch assy,oil pressure |
| 13 | 37820-73HP0-000 | SWITCH ASSY,OIL PRESS |
| 14 | 36895-58J10-000 | ワイヤ,オイルプレッシャスイッチ |
| 15 | 36651-82K30-000 | CLAMP |
| 15 | 36995-80C00-000 | CLAMP,OIL P SW |
| OEM | Part name | Category |
|---|---|---|
| 01550-0630A-000 | Bolt | Oil pump (2008-05-01~) |
| 01550-0650A-000 | Bolt - Bolt (6x50) | Oil pump (2008-05-01~) |
| 01550-0840A-000 | Bolt | Oil pump (2008-05-01~) |
| 02122-0616A-000 | SCREW | Oil pump (2008-05-01~) |
| 04211-09109-000 | PIN - Knock pin | Oil pump (2008-05-01~) |
| 08331-4115A-000 | CIRCLIP | Oil pump (2008-05-01~) |
| 09103-08388-000 | BOLT(8X40) - Bolt, rr final gr case | Oil pump (2008-05-01~) |
| 09246-05006-000 | PLUG(1/8PT,H:5.5) | Oil pump (2008-05-01~) |
| 16100-58J00-000 | ポンプアッシ,オイル | Oil pump (2008-05-01~) |
| 16100-58J01-000 | New Genuine Part | Oil pump (2008-05-01~) |
| 16100-85K50-000 | ポンプアッシ,オイル | Oil pump (2008-05-01~) |
| 16100-85K51-000 | PUMP ASSY,OIL | Oil pump (2008-05-01~) |
| 16130-58810-000 | ROTOR SET,OIL PUMP | Oil pump (2008-05-01~) |
| 16150-60A20-000 | VALVE SET,OIL PUMP RELIEF | Oil pump (2008-05-01~) |
| 16210-73H01-000 | FILTER,OIL GALLERY | Oil pump (2008-05-01~) |
| 36651-82K30-000 | CLAMP | Oil pump (2008-05-01~) |
| 36895-58J10-000 | ワイヤ,オイルプレッシャスイッチ | Oil pump (2008-05-01~) |
| 36995-80C00-000 | CLAMP,OIL P SW | Oil pump (2008-05-01~) |
| 37820-73H10-000 | Switch assy,oil pressure | Oil pump (2008-05-01~) |
| 37820-73HP0-000 | SWITCH ASSY,OIL PRESS | Oil pump (2008-05-01~) |
