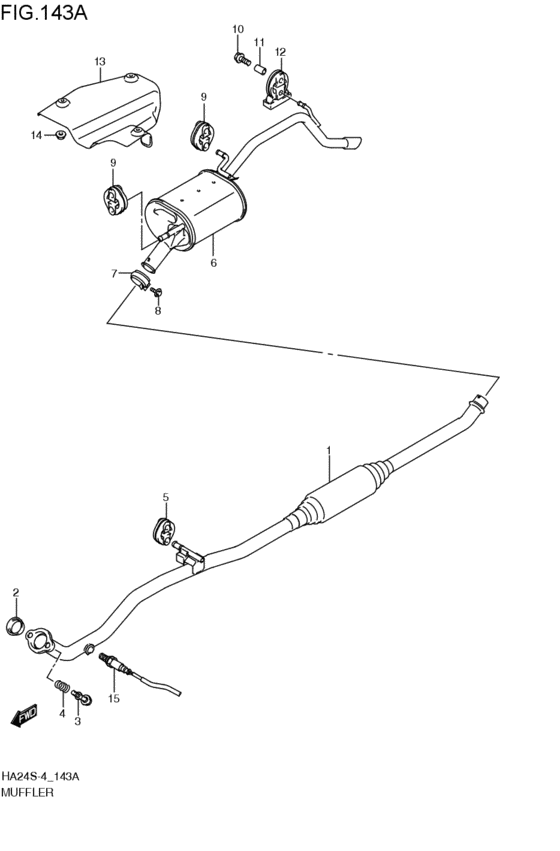

muffler (2008-05-01~)
22
| # | OEM | Part name |
|---|
| 1 |
14190-72J01-000 |
Pipe comp,exhaust |
| 1 |
14190-72J03-000 |
PIPE,EXHAUST |
| 1 |
14190-72J04-000 |
Pipe,exh |
| 2 |
14183-75FC0-000 |
RING,SEAL EXH PIPE |
| 3 |
09119-10039-000 |
Bolt |
| 3 |
14493-76G01-000 |
BOLT,EXH PIPE |
| 4 |
14492-83G00-000 |
Spring,exh pipe |
| 4 |
14492-83G01-000 |
SPRING,EXH PIPE |
| 5 |
14281-75F00-000 |
Mounting |
| 5 |
14281-75F01-000 |
MOUNTING,MUF |
| 6 |
14300-72J01-000 |
マフラ |
| 6 |
14300-72J04-000 |
MUFFLER |
| 7 |
14185-72J00-000 |
CLAMP,EXH PIPE |
| 8 |
14186-72J00-000 |
BOLT,EXH PIPE CLAMP 8X35 |
| 10 |
01551-0835A-000 |
Bolt |
| 11 |
09180-08057-000 |
Spacer |
| 11 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 12 |
14281-58J01-000 |
Mounting,muffler |
| 12 |
14281-68K00-000 |
MOUNTING,MUF |
| 13 |
14358-72J00-000 |
インシュレータ,ヒート |
| 14 |
14357-72J00-000 |
NUT |
| 15 |
18213-72J31-000 |
SENSOR,OXYGEN |
| OEM |
Part name |
Category |
| 01551-0835A-000 |
Bolt |
muffler (2008-05-01~) |
| 09119-10039-000 |
Bolt |
muffler (2008-05-01~) |
| 09180-08057-000 |
Spacer |
muffler (2008-05-01~) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
muffler (2008-05-01~) |
| 14183-75FC0-000 |
RING,SEAL EXH PIPE |
muffler (2008-05-01~) |
| 14185-72J00-000 |
CLAMP,EXH PIPE |
muffler (2008-05-01~) |
| 14186-72J00-000 |
BOLT,EXH PIPE CLAMP 8X35 |
muffler (2008-05-01~) |
| 14190-72J01-000 |
Pipe comp,exhaust |
muffler (2008-05-01~) |
| 14190-72J03-000 |
PIPE,EXHAUST |
muffler (2008-05-01~) |
| 14190-72J04-000 |
Pipe,exh |
muffler (2008-05-01~) |
| 14281-58J01-000 |
Mounting,muffler |
muffler (2008-05-01~) |
| 14281-68K00-000 |
MOUNTING,MUF |
muffler (2008-05-01~) |
| 14281-75F00-000 |
Mounting |
muffler (2008-05-01~) |
| 14281-75F01-000 |
MOUNTING,MUF |
muffler (2008-05-01~) |
| 14300-72J01-000 |
マフラ |
muffler (2008-05-01~) |
| 14300-72J04-000 |
MUFFLER |
muffler (2008-05-01~) |
| 14357-72J00-000 |
NUT |
muffler (2008-05-01~) |
| 14358-72J00-000 |
インシュレータ,ヒート |
muffler (2008-05-01~) |
| 14492-83G00-000 |
Spring,exh pipe |
muffler (2008-05-01~) |
| 14492-83G01-000 |
SPRING,EXH PIPE |
muffler (2008-05-01~) |
| 14493-76G01-000 |
BOLT,EXH PIPE |
muffler (2008-05-01~) |
| 18213-72J31-000 |
SENSOR,OXYGEN |
muffler (2008-05-01~) |
