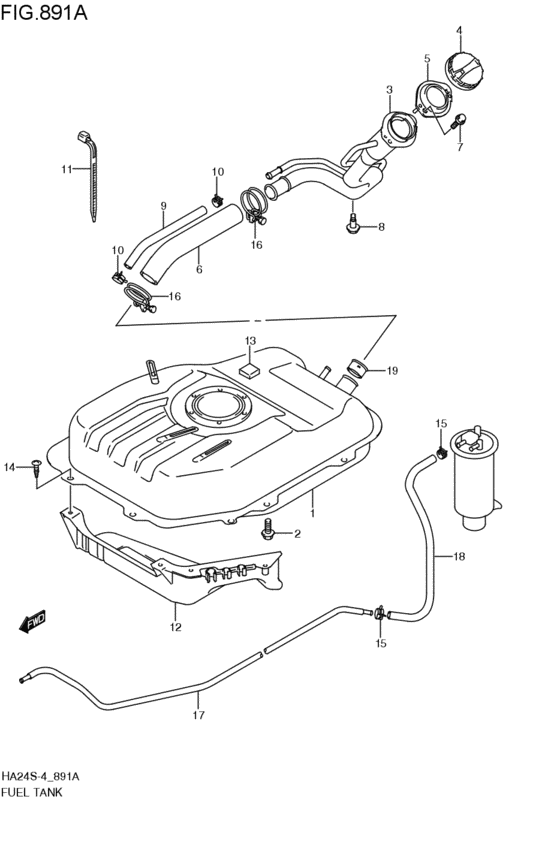

fuel tank (2008-05-01~)
20
| # | OEM | Part name |
|---|
| 1 |
89101-58J51-000 |
TANK ASSY,FUEL |
| 2 |
09118-08161-000 |
BOLT(8X25) |
| 3 |
89210-72J01-000 |
ネック,フューエルフィラ |
| 4 |
89260-73H00-000 |
CAP ASSY,FUEL FILLER |
| 5 |
89285-58J00-000 |
PACKING,FUEL FILLER |
| 6 |
89241-73H00-000 |
HOSE,FUEL TANK FILLER |
| 7 |
09116-05014-000 |
BOLT(5X20) |
| 8 |
09116-06205-000 |
BOLT(6X16) |
| 9 |
09355-11188-600 |
HOSE(11X17.8X600) |
| 10 |
09401-16407-000 |
CLIP |
| 11 |
09407-19401-000 |
CLAMP(L:190) |
| 12 |
89191-58J00-000 |
COVER,FUEL TANK,LOWER |
| 13 |
89521-60B01-000 |
PAD,FUEL TANK |
| 14 |
03541-0616A-000 |
SCREW |
| 15 |
09401-11415-000 |
CLIP |
| 16 |
09400-45411-000 |
CLAMP |
| 17 |
89483-58JA1-000 |
パイプ,フューエルエバポ |
| 18 |
09355-54128-600 |
Hose,5.4x12.2x600 |
| 18 |
09355-56128-600 |
HOSE(5.6X12.4X600) |
| 19 |
89280-77A00-000 |
VALVE,FUEL TANK INLET |
| OEM |
Part name |
Category |
| 03541-0616A-000 |
SCREW |
fuel tank (2008-05-01~) |
| 09116-05014-000 |
BOLT(5X20) |
fuel tank (2008-05-01~) |
| 09116-06205-000 |
BOLT(6X16) |
fuel tank (2008-05-01~) |
| 09118-08161-000 |
BOLT(8X25) |
fuel tank (2008-05-01~) |
| 09355-11188-600 |
HOSE(11X17.8X600) |
fuel tank (2008-05-01~) |
| 09355-54128-600 |
Hose,5.4x12.2x600 |
fuel tank (2008-05-01~) |
| 09355-56128-600 |
HOSE(5.6X12.4X600) |
fuel tank (2008-05-01~) |
| 09400-45411-000 |
CLAMP |
fuel tank (2008-05-01~) |
| 09401-11415-000 |
CLIP |
fuel tank (2008-05-01~) |
| 09401-16407-000 |
CLIP |
fuel tank (2008-05-01~) |
| 09407-19401-000 |
CLAMP(L:190) |
fuel tank (2008-05-01~) |
| 89101-58J51-000 |
TANK ASSY,FUEL |
fuel tank (2008-05-01~) |
| 89191-58J00-000 |
COVER,FUEL TANK,LOWER |
fuel tank (2008-05-01~) |
| 89210-72J01-000 |
ネック,フューエルフィラ |
fuel tank (2008-05-01~) |
| 89241-73H00-000 |
HOSE,FUEL TANK FILLER |
fuel tank (2008-05-01~) |
| 89260-73H00-000 |
CAP ASSY,FUEL FILLER |
fuel tank (2008-05-01~) |
| 89280-77A00-000 |
VALVE,FUEL TANK INLET |
fuel tank (2008-05-01~) |
| 89285-58J00-000 |
PACKING,FUEL FILLER |
fuel tank (2008-05-01~) |
| 89483-58JA1-000 |
パイプ,フューエルエバポ |
fuel tank (2008-05-01~) |
| 89521-60B01-000 |
PAD,FUEL TANK |
fuel tank (2008-05-01~) |
