| 01421-1035A-000 |
BOLT,STUD |

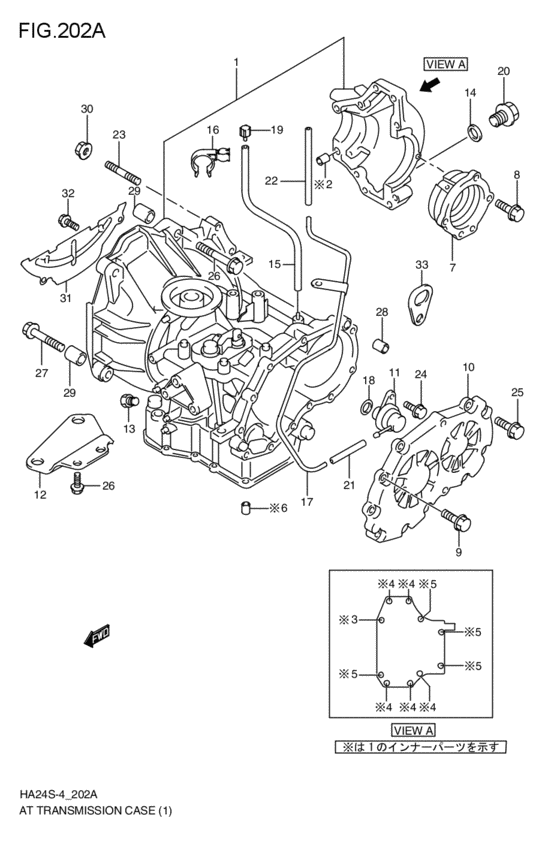

at - transmission case (3AT; 2008-05-01~) |
| 01550-0612A-000 |
Bolt |
at - transmission case (3AT; 2008-05-01~) |
| 01550-0825A-000 |
Bolt |
at - transmission case (3AT; 2008-05-01~) |
| 01550-0840A-000 |
Bolt |
at - transmission case (3AT; 2008-05-01~) |
| 01550-1025C-000 |
Bolt |
at - transmission case (3AT; 2008-05-01~) |
| 01550-1050A-000 |
Bolt - Bolt, exhaust tube |
at - transmission case (3AT; 2008-05-01~) |
| 01550-1055A-000 |
Bolt |
at - transmission case (3AT; 2008-05-01~) |
| 02162-0610A-000 |
SCREW |
at - transmission case (3AT; 2008-05-01~) |
| 04211-13149-000 |
PIN |
at - transmission case (3AT; 2008-05-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
at - transmission case (3AT; 2008-05-01~) |
| 09202-06035-000 |
PIN |
at - transmission case (3AT; 2008-05-01~) |
| 09247-14044-000 |
DRAIN PLUG (M14x1.5) |
at - transmission case (3AT; 2008-05-01~) |
| 09355-35006-601 |
Hose(3.5X7.5X601) |
at - transmission case (3AT; 2008-05-01~) |
| 09355-35754-601 |
HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
at - transmission case (3AT; 2008-05-01~) |
| 11851-72B21-000 |
HOOK,ENGINE |
at - transmission case (3AT; 2008-05-01~) |
| 24700-72J10-000 |
ケースアッシ,トランスミッション |
at - transmission case (3AT; 2008-05-01~) |
| 24721-76G10-000 |
HOUSING,SIDE BEARING |
at - transmission case (3AT; 2008-05-01~) |
| 24722-72J10-000 |
BOLT,SIDE BRG HSG |
at - transmission case (3AT; 2008-05-01~) |
| 24722-72J11-000 |
Bolt,side Brg Hsg |
at - transmission case (3AT; 2008-05-01~) |
| 24731-76G10-000 |
COVER,T/M RR |
at - transmission case (3AT; 2008-05-01~) |
| 24743-76G11-000 |
BOLT,T/M BOTTOM CASE N0.1 |
at - transmission case (3AT; 2008-05-01~) |
| 24743-76G12-000 |
Bolt,t/m Bottom Case No.1 |
at - transmission case (3AT; 2008-05-01~) |
| 24781-71B80-000 |
DIAPHRAGM,VACUUM |
at - transmission case (3AT; 2008-05-01~) |
| 24791-72J10-000 |
スチフナ,エンジン/トランスミッション |
at - transmission case (3AT; 2008-05-01~) |
| 24793-65KF0-000 |
プレート,クラッチハウジングロア |
at - transmission case (3AT; 2008-05-01~) |
| 24822-58E00-000 |
PLUG,BOOSTER |
at - transmission case (3AT; 2008-05-01~) |
| 24822-58E01-000 |
Plug,booster |
at - transmission case (3AT; 2008-05-01~) |
| 24824-71B71-000 |
GASKET,18X24X2 |
at - transmission case (3AT; 2008-05-01~) |
| 24825-72J30-000 |
ホース,ブリーザ |
at - transmission case (3AT; 2008-05-01~) |
| 24895-66K10-000 |
クランプ,ブリーザホース |
at - transmission case (3AT; 2008-05-01~) |
| 24898-72J11-000 |
パイプ,バキューム |
at - transmission case (3AT; 2008-05-01~) |
| 26584-84G10-000 |
O-RING,VACUUM DIAPHRAGM |
at - transmission case (3AT; 2008-05-01~) |
| 27991-78G10-000 |
PLUG,BREATHER HOSE |
at - transmission case (3AT; 2008-05-01~) |
